COM Express Series

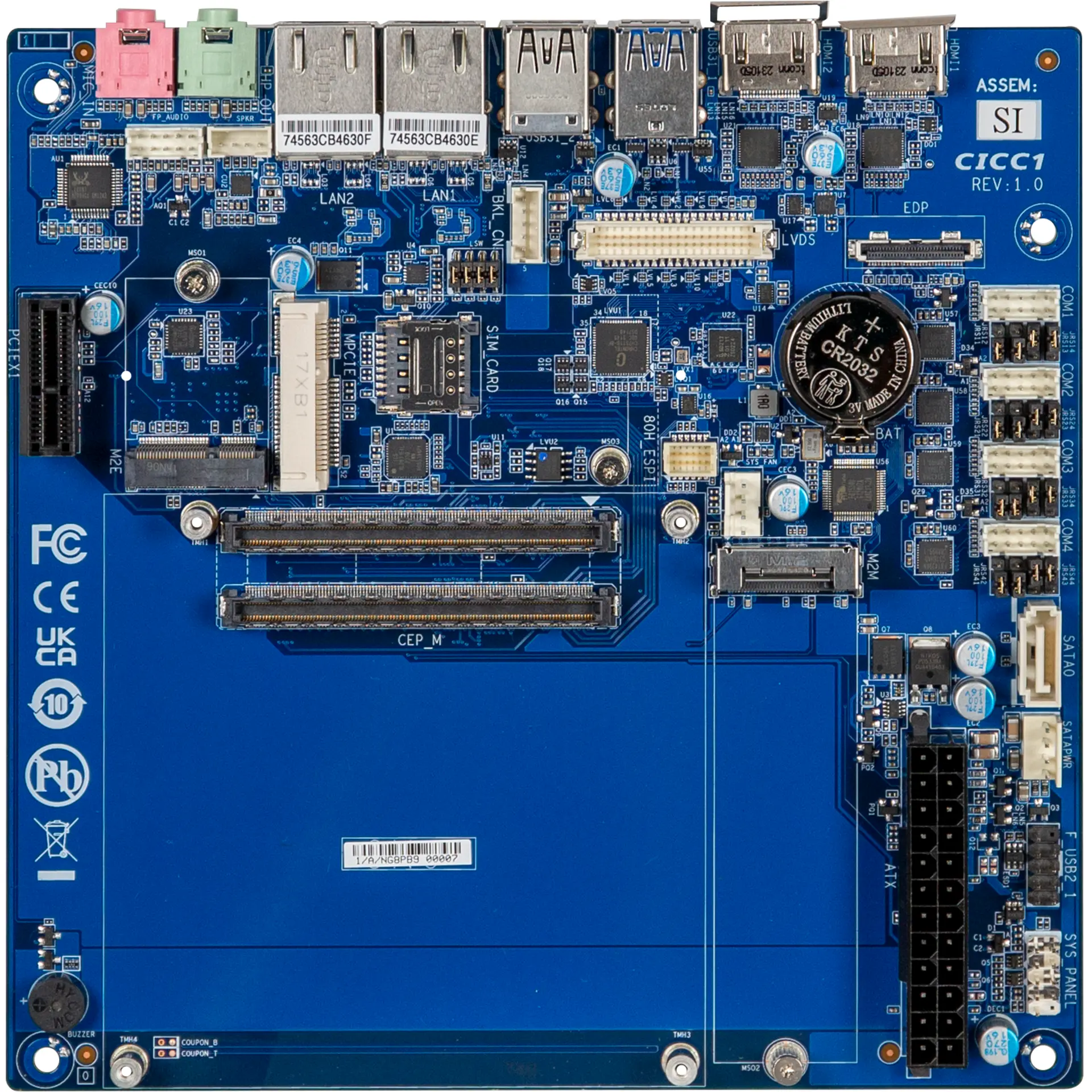

E6-EVBA
COM Express Type 6 Evaluation board
Key Features
• Mini ITX Form Factor
• PICMG COM Express® R3.0 Type 6 pinout compatible
• HDMI, eDP, LVDS ports for multiple display
• 2 x GbE LAN Ports
• 1 x PCIe x1 (Gen 3x1) expansion slot
• 4 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 3 x USB 2.0
• 3 x USB 3.2 Gen 1
컨텐츠 정보
본문
Specification
Form Factor
Mini-ITX
170W x 170D (mm)
Compatible models
PICMG COM Express® R3.0
Type 6 pinout compatible
Support module as follows:
CE6-6412A
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111H)
Graphics
Integrated Graphics Processor:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x PCIe x1 (Gen 3x1)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)
1 x Full-size Mini PCIe with SIM slot
Internal I/O
1 x 24 pin ATX main power connector
1 x SATA Power connector
1 x System fan header
1 x Front panel header
1 x Front panel audio header
4 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x Backlight Control header
1 x Speaker out header
2 x USB 2.0 headers
1 x Buzzer

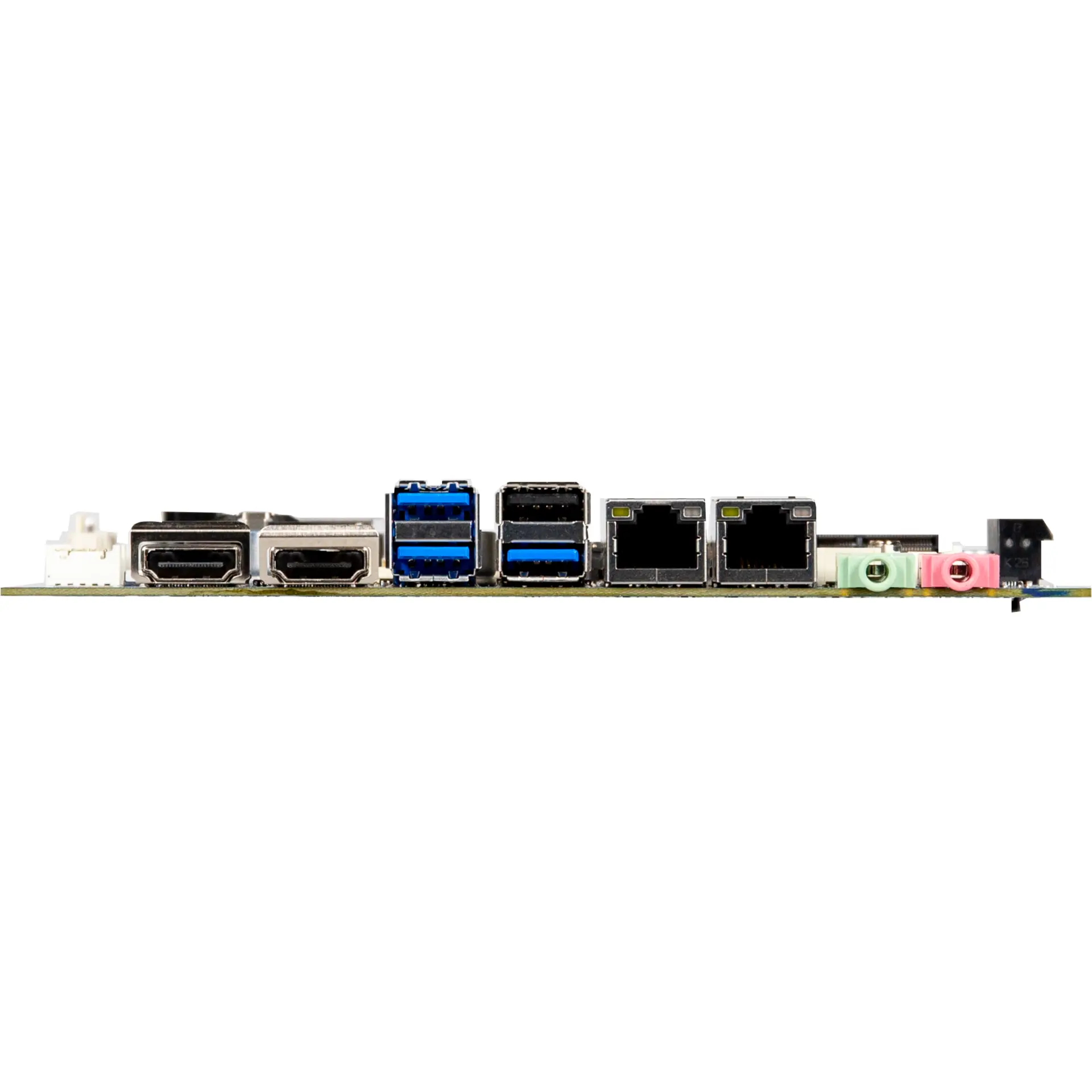

Rear l/O
2 x Audio Jacks (Line out, Mic in)
2 x HDMI
2 x RJ45 LAN Ports
3 x USB 3.2 Gen 1
1 x USB 2.0
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Including:
IO Shield x 1 (P/N: 12AIO-CICC10-00R)
SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R)
Order Information
9CICC1MR-SI (Box packing)
