COM Express Series

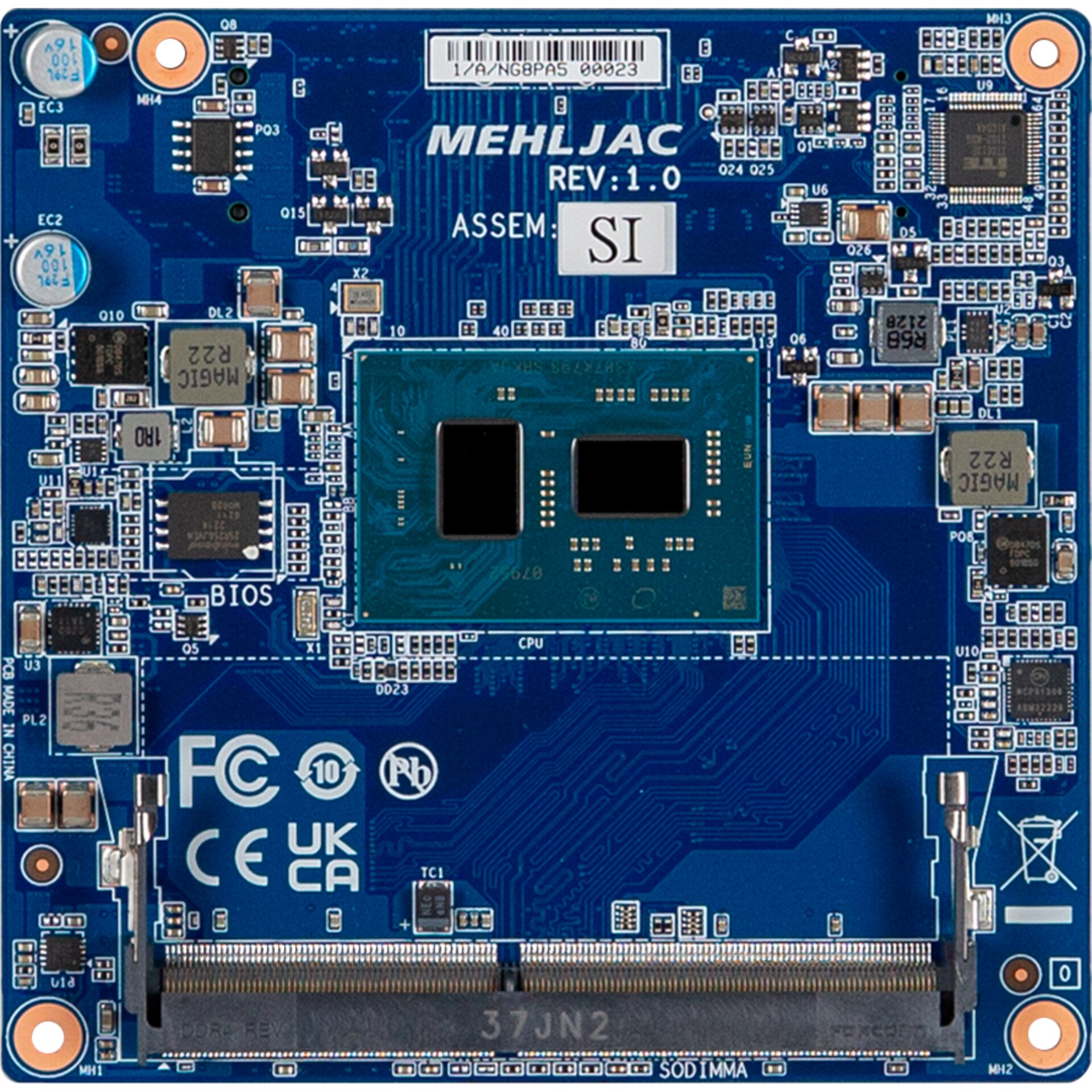

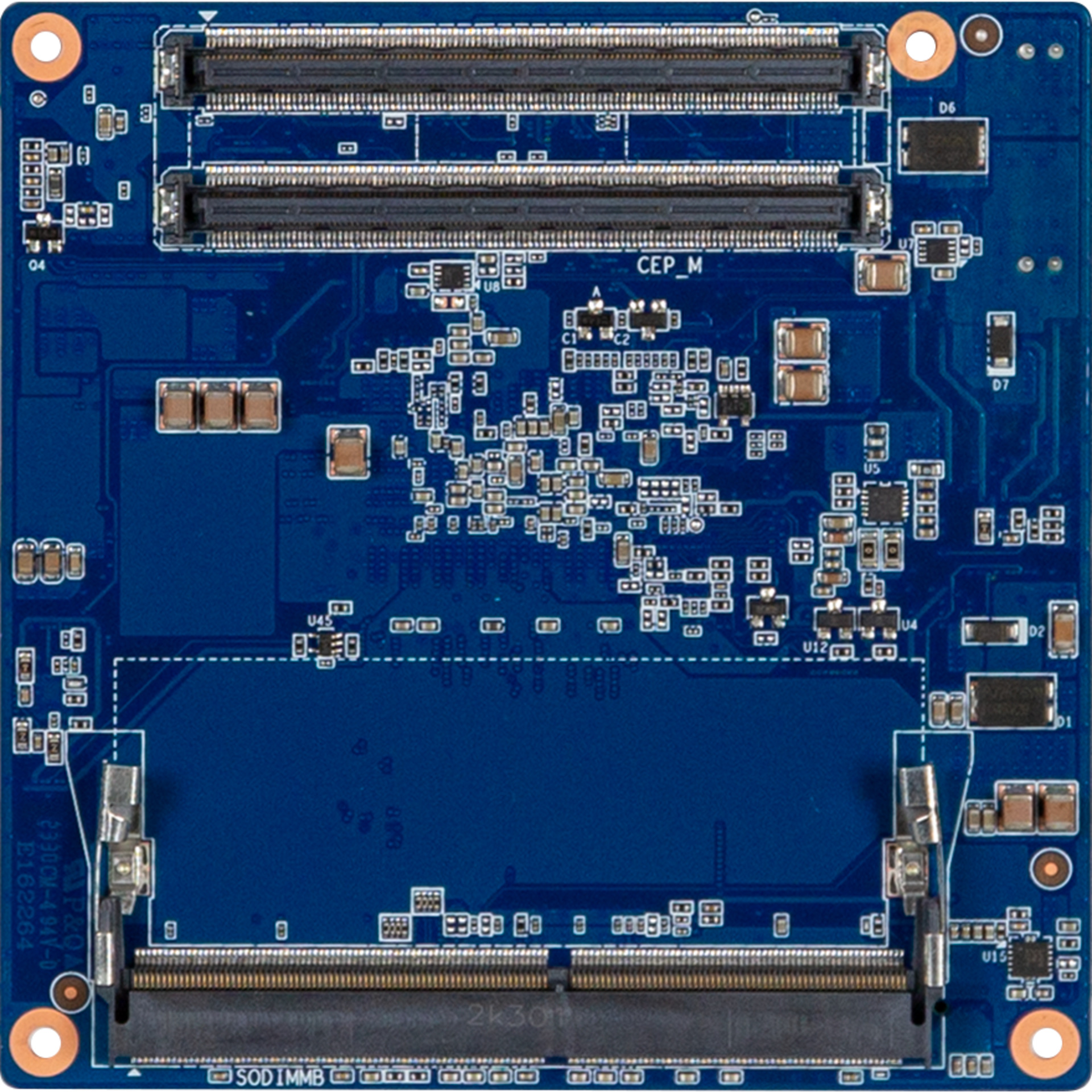

CE6-6412A
COM Express Type 6 Compact Size with Intel® J6412 Processor
Key Features
• COM Express® R3.0 Type 6
• Intel® Celeron® J6412 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
컨텐츠 정보
본문
Specification
Form Factor
COM Express® R3.0 Compact Module, Type 6
95W x 95D (mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Socket
1 x FCBGA 1493
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
BIOS
AMI UEFI 256Mb
Super I/O
ITE IT8613E/NX
Video
Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
- LCD : eDP 4096 x 2304 @ 60Hz
- 2 x DDI ports support configurable HDMI/DisplayPort
HDMI 2.0b: 4096 x 2160 @ 60Hz
DisplayPort 1.4: 4096 x 2160 @ 60Hz
(3 independent display outputs)
Audio
Intel® HD Audio
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
6 x PCI Express x1 (Gen3)
Internal I/O
2 x USB 3.2 (Gen2)(10Gb/s)
2 x USB 3.2 (Gen2)(10Gb/s) - Optional ports by PCIe Co-lay
8 x USB 2.0 Ports (480Mbps)
1 x eSPI
1 x SMBUS
1 x I2C
1 x GPIO (8 bits)
1 x System fan
Watchdog
65536 level, 0 ~ 65535 sec
Power Requirement
Vin: 8.5V ~ 20V
VSB: 4.75V ~ 5.25V
RTC Battery: 2.0V ~ 3.3V
OS Compatibility
Windows® 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 384 x 251 x 211 (mm)
Packing Capacity: 20pcs
Single Box size : 168 x 112 x 34 (mm)
Order Information
9MEHLJACMR-SI (Box Packing)
