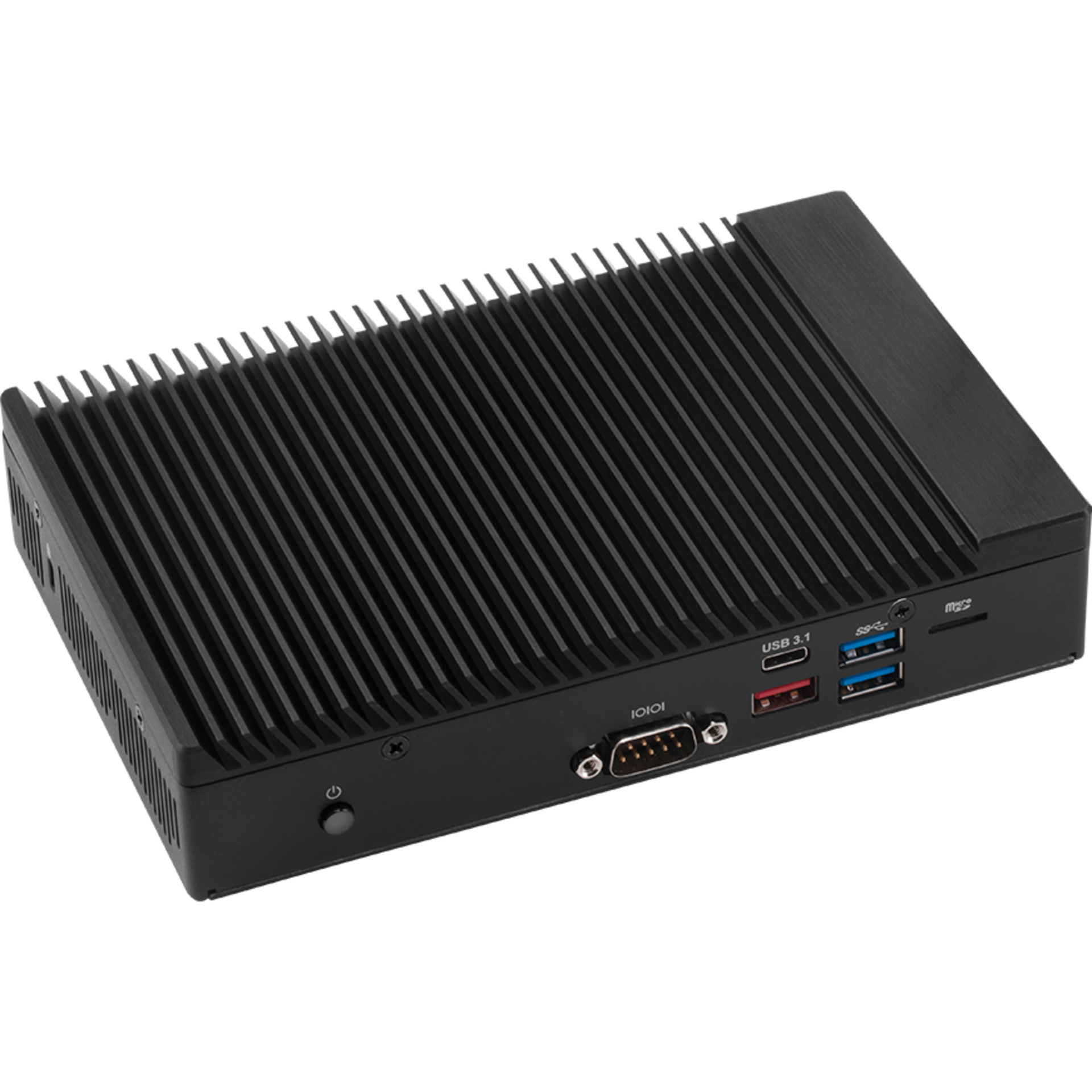

QBiX Plus Series
QBiX-Plus-KBLA7100-A1
Industrial system with Intel® Core™ i3-7100U Processor
Key Features
• System Size : 180W x 117D x 36H (mm)
• Intel® Core™ i3-7100U Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 2 x GbE LAN Ports
컨텐츠 정보
본문
Specification
Dimension
System Size : 180W x 117D x 36H (mm)
CPU
Intel® Core™ i3-7100U Processor
14nm, 2 cores, 4 threads, 2.4 GHz
TDP 15W
3 MB SmartCache
Chipset
SoC
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219LM and Intel® I210AT)
Graphics Support
Integrated Graphics Processor - Intel® HD Graphics 620:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)
Front I/O
1 x USB 3.1 Gen2 Type C
1 x USB 3.1 Gen2 Type A
2 x USB 3.0
1 x COM Port (RS-232/422/485)
1 x Micro SD card slot
1 x Power button
Rear l/O
1 x Combo Audio Jack (Microphone & Headphone)
2 x RJ45 LAN Ports
2 x USB 3.0
2 x HDMI
1 x DC Jack
Side I/O
3 x External Antenna Holes (Optional)
Power
+19VDC (Adapter 19V/90W)
Operation Temperature
Operating temperature: 0°C to 40°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 451 x 186 x 245 (mm)
Packing Capacity: 5pcs
Single Box size: 231 x 179 x 81 (mm)
Including:
Power Cord 3Cx18AWG SVT QP-02+QP038 700mm US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 90W 100-240VAC x 1 (P/N: 25EP4-100908-F3S)
Vesa Mount Bracket x 1 (P/N: 25HB2-XM2720-E4S)
Order Information
System : 9BCKABZAMR-SI (CTO)
(Built in Components: Please contact with your sales representative for more information
or e-mailed to : sales@gigaipc.com)
Optional Kit
Internal Antenna 90mm : 25CA0-090003-A5S
Internal Antenna 120mm : 25CA0-120002-A5S
Internal Antenna 120mm : 25CA0-120003-A5S
WiFi module : 25FC7-3165N0-10R
Antenna_WiFI x 2 : 25CA0-111000-A5S
Antenna_3G x 1 : 25CA0-111001-A5S
