QBiX Plus Series
QBiX-Plus-APLA3450-A1
Industrial system with Intel® Celeron® N3450 Processor
Key Features
• System Size : 165W x 105D x 27H (mm)
• Intel® Celeron® N3450 Processor
• Dual Channel DDR3L, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 2 x GbE LAN Ports
컨텐츠 정보
본문
Specification
Dimension
System Size : 165W x 105D x 27H (mm)
CPU
Intel® Celeron® N3450 Processor
14nm, 4 cores, 4 threads, up to 2.2 GHz
TDP 6W
2MB L2 cache
Chipset
SoC
Memory
2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual Channel DDR3L 1866 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111HS)
Graphics Support
Integrated Graphics Processor - Intel® HD Graphics 500:
2 x HDMI 1.4 ports, supporting a maximum resolution of 3840x2160 @30Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Expansion-Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)

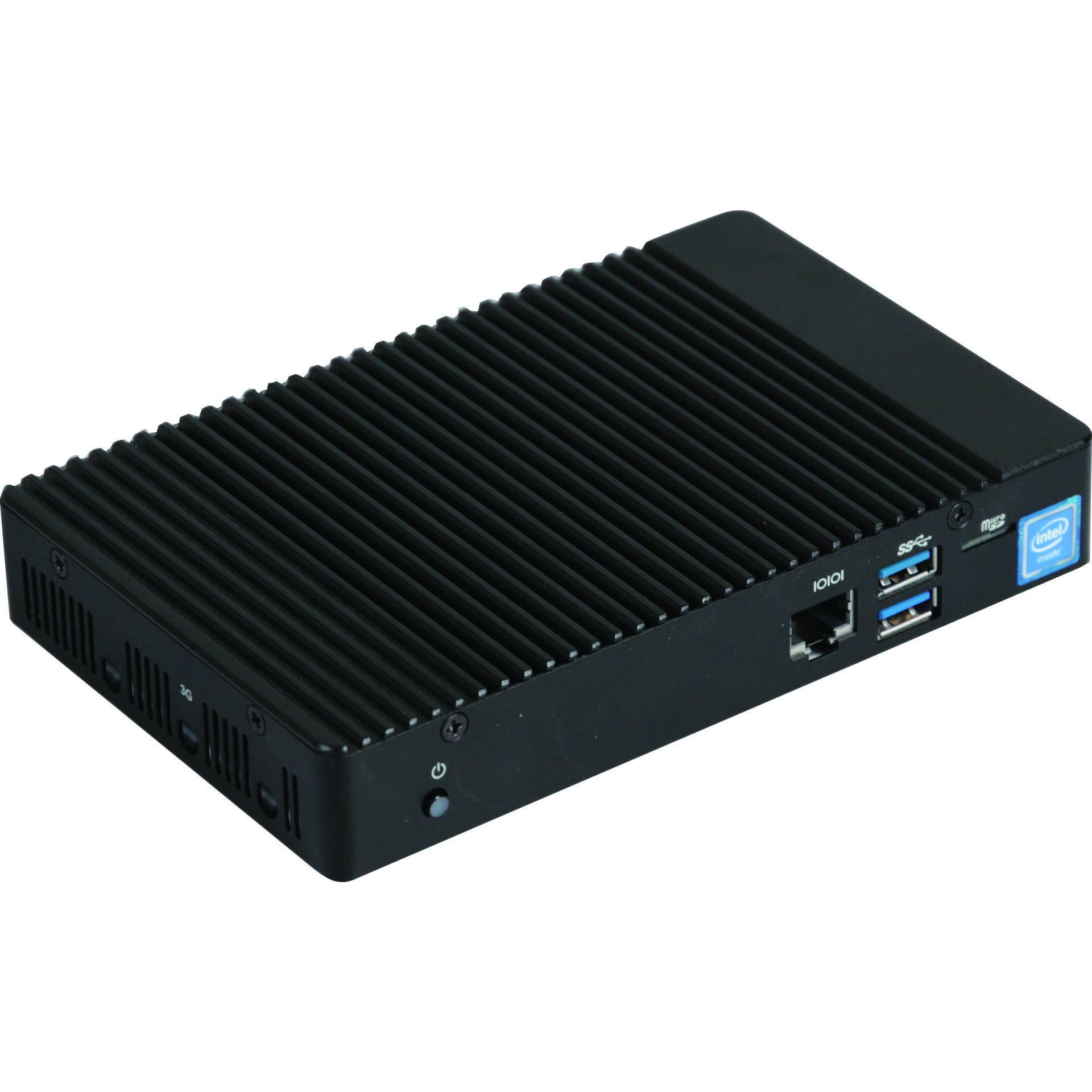

Front I/O
2 x USB 3.0
1 x COM Port (RS-232/422/485)(RJ45 Type)
1 x Micro SD card slot
1 x Power button

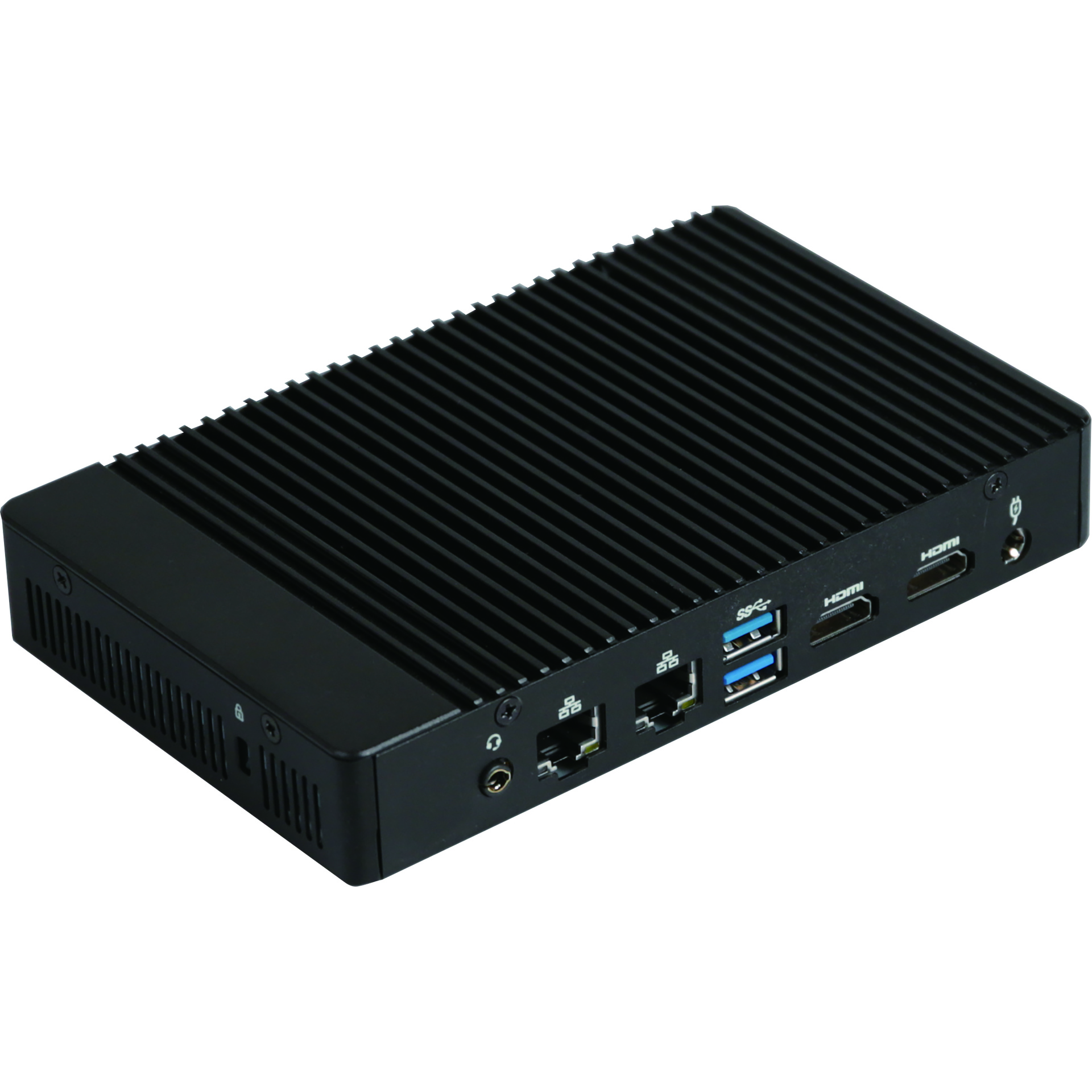

Rear l/O
1 x Combo Audio Jack (Microphone & Headphone)
2 x RJ45 LAN Ports
2 x USB 3.0
2 x HDMI
1 x DC Jack
Side I/O
3 x External Antenna Holes (Optional)
Power
+19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 416 x 359 x 257 (mm)
Packing Capacity: 10pcs
Including:
Power Cord 3Gx0.75 H03VV-F SP05/QP038 700mm TW x 1 (P/N: 25CP2-007006-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065K-F3S)
RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150400-S9R)
Vesa Mount Bracket x 1 (P/N: 25HB2-XM2720-E4S)
Order Information
System: 9BCBBAZAMR-SI (CTO)
(Built in Components: Please contact with your sales representative for more information
or e-mailed to : sales@gigaipc.com)
Optional Kit
Internal Antenna 200mm : 25CA0-200006-A5S
Internal Antenna 230mm : 25CA0-230001-A5S
Internal Antenna 150mm : 25CA0-150002-A5S
WiFi/BT module : 25FC7-3165N0-10R
Antenna_WiFI x 2 : 25CA0-111000-A5S
Antenna_3G x 1 : 25CA0-111001-A5S
