Mini-ITX

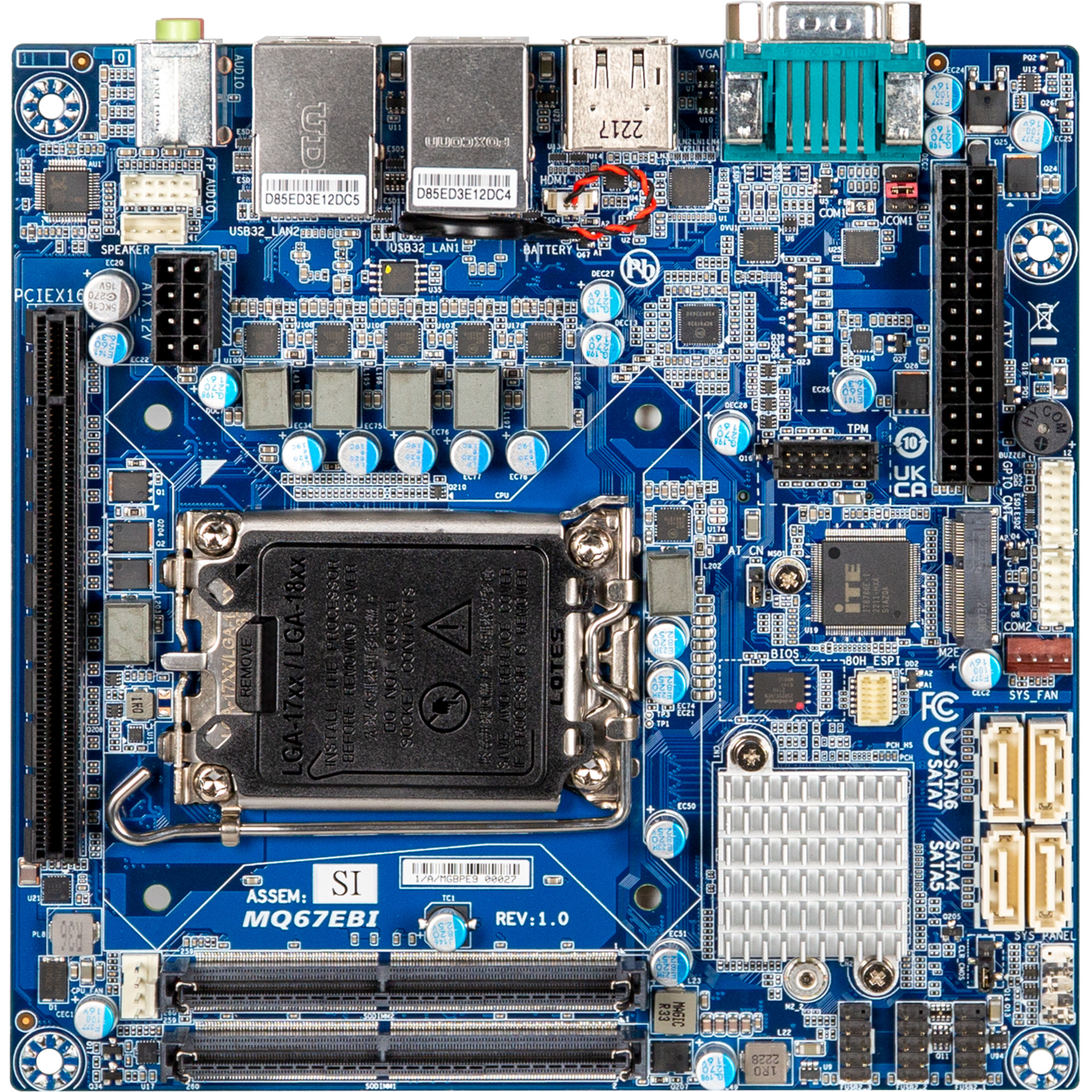

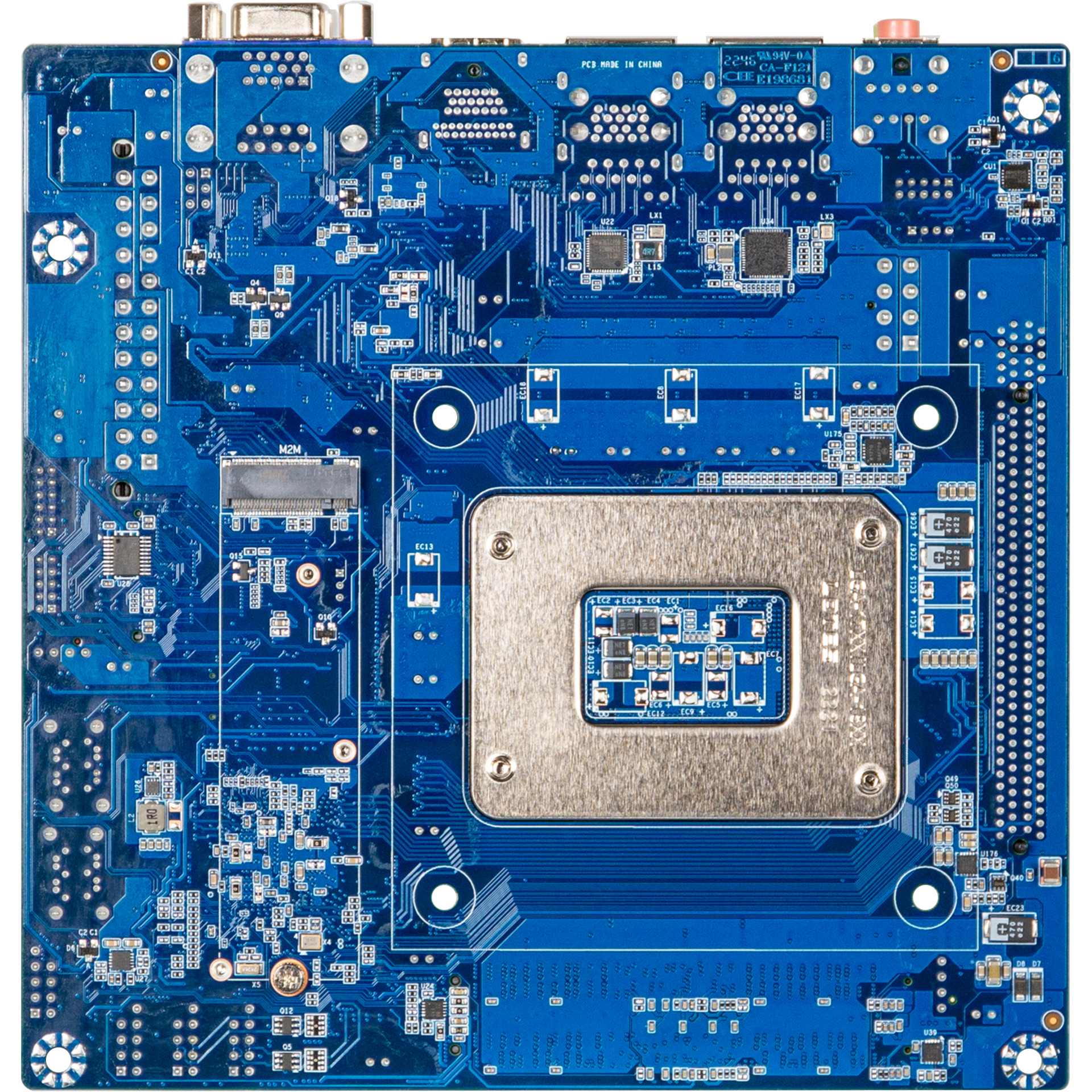

mITX-Q67EB
Mini-ITX with Intel® Q670E Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 10 x USB, 4 x SATA 6Gb/s
Key Features
• Mini-ITX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® Q670E Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x GbE LAN Port
• 1 x 2.5GbE LAN Port
• 4 x SATA 6Gb/s Ports
• HDMI, Display Port, VGA ports for multiple display
• 1 x COM Port (RS-232)
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
컨텐츠 정보
본문
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
TDP under 65W
Socket
1 x LGA 1700
Chipset
Intel® Q670E Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
Ethernet
1 x GbE LAN Port (Intel® I219LM)
1 x 2.5GbE LAN Port (Intel® I226V)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
(3 independent display outputs)
Audio
Realtek® Audio codec
Storage
4 x SATA 6Gb/s Ports
RAID
RAID 0/1/5/10
Expansion Slots
1 x PCIe x16 (Gen 4x16)
1 x 2280 M.2 M-Key (PCIe Gen 3x4)
1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
1 x COM header (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper

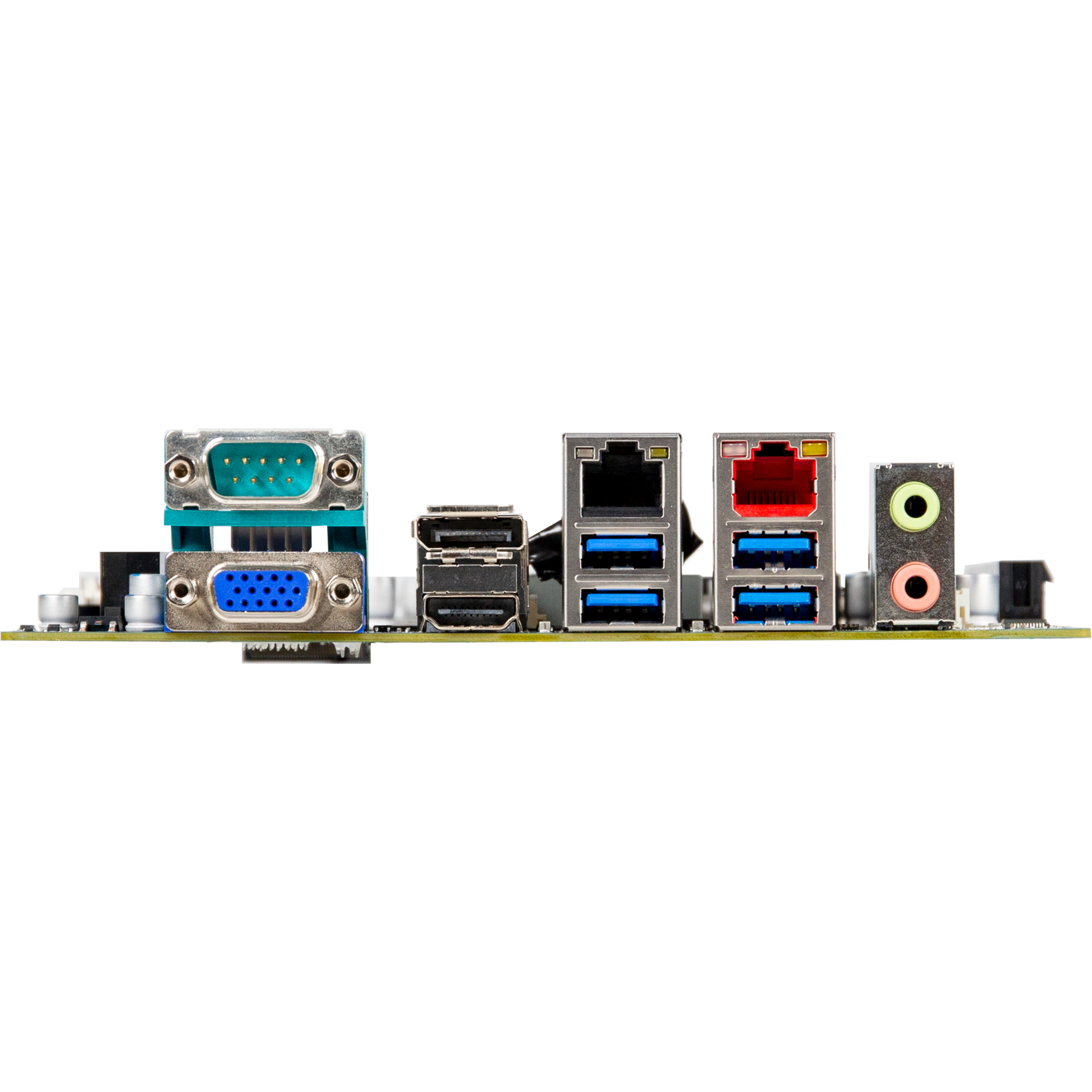

Rear l/O
2 x Audio Jacks (Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
TPM
1 x TPM header
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size : 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.8kg
Including:
IO Shield x 1 (P/N: 12AIO-MQ67EB-00R)
SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R)
Order Information
9MQ67EBIMR-SI (Box packing)
Optional Kit
CPU Cooler P/N: 25ST0-037820-Y0R
CPU Cooler Backplate P/N: 12KRH-0A1700-00R
TPM 2.0 module P/N: 9CTM010NR-00
