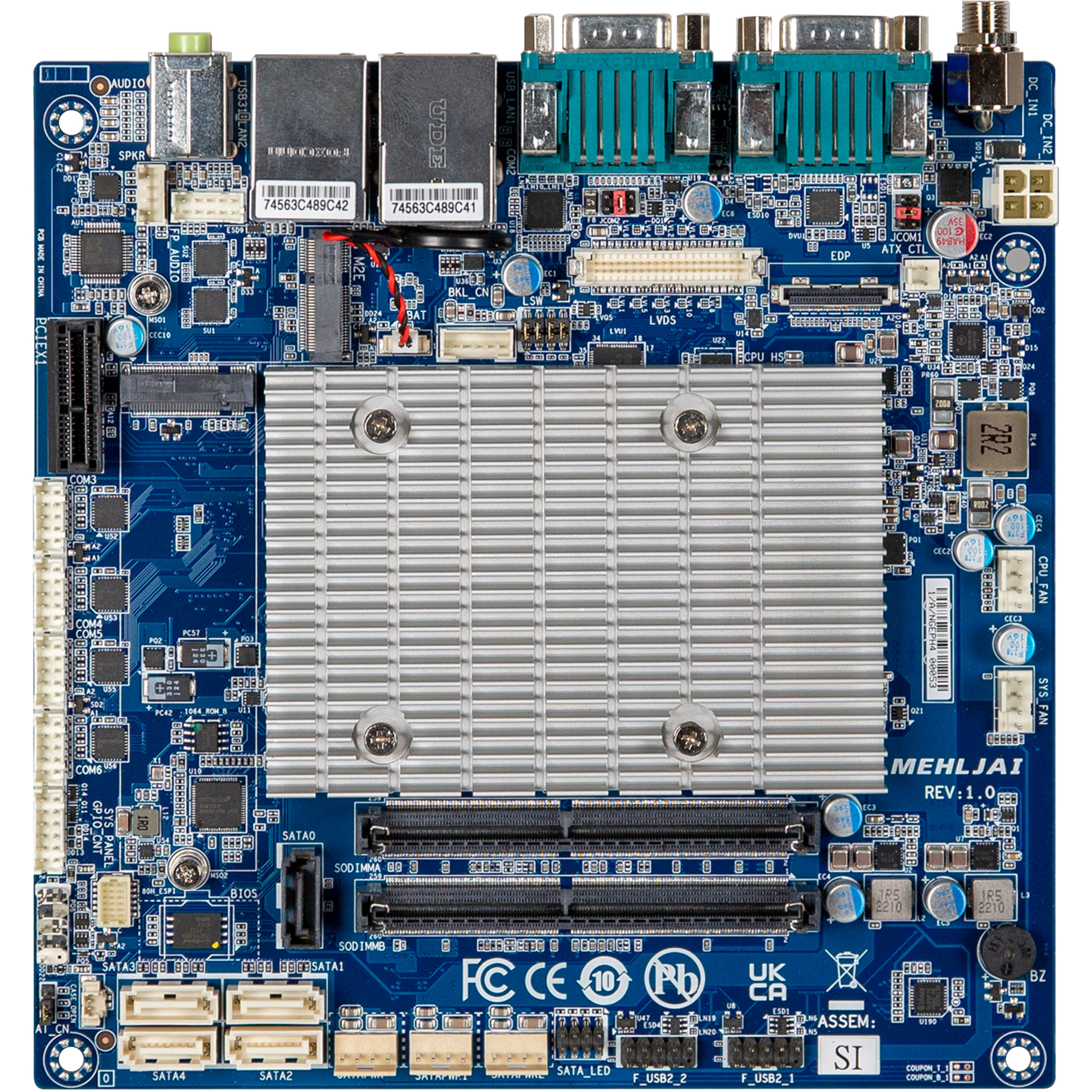

Mini-ITX
mITX-6412A
Mini-ITX Embedded Motherboard with Intel® J6412 Processor, Dual Channel DDR4 memory, PCIe, 6 x COM, 5 x SATA 6Gb/s, 8 x USB
Key Features
• Mini-ITX form factor
• Intel® Celeron® J6412 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 5 x SATA 6Gb/s Ports with one SATA DOM supported
• HDMI 2.0, VGA, eDP, LVDS ports for multiple display
• 1 x PCIe x1 (Gen 3x1) expansion slot
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 4 x COM Ports (RS-232)
컨텐츠 정보
본문
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Socket
1 x FCBGA 1493
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111H)
Video
Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
5 x SATA 6Gb/s Ports
(4 x Asmedia ASM1064)
(1 x supports SATA DOM)
Expansion Slots
1 x PCIe x1 (Gen 3x1)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 4-pin ATX main power connector
3 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
4 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Case open header
1 x AT/ATX mode select jumper
1 x Backlight Control header
1 x Buzzer
4 x SATA LED header
1 x ATX Control header

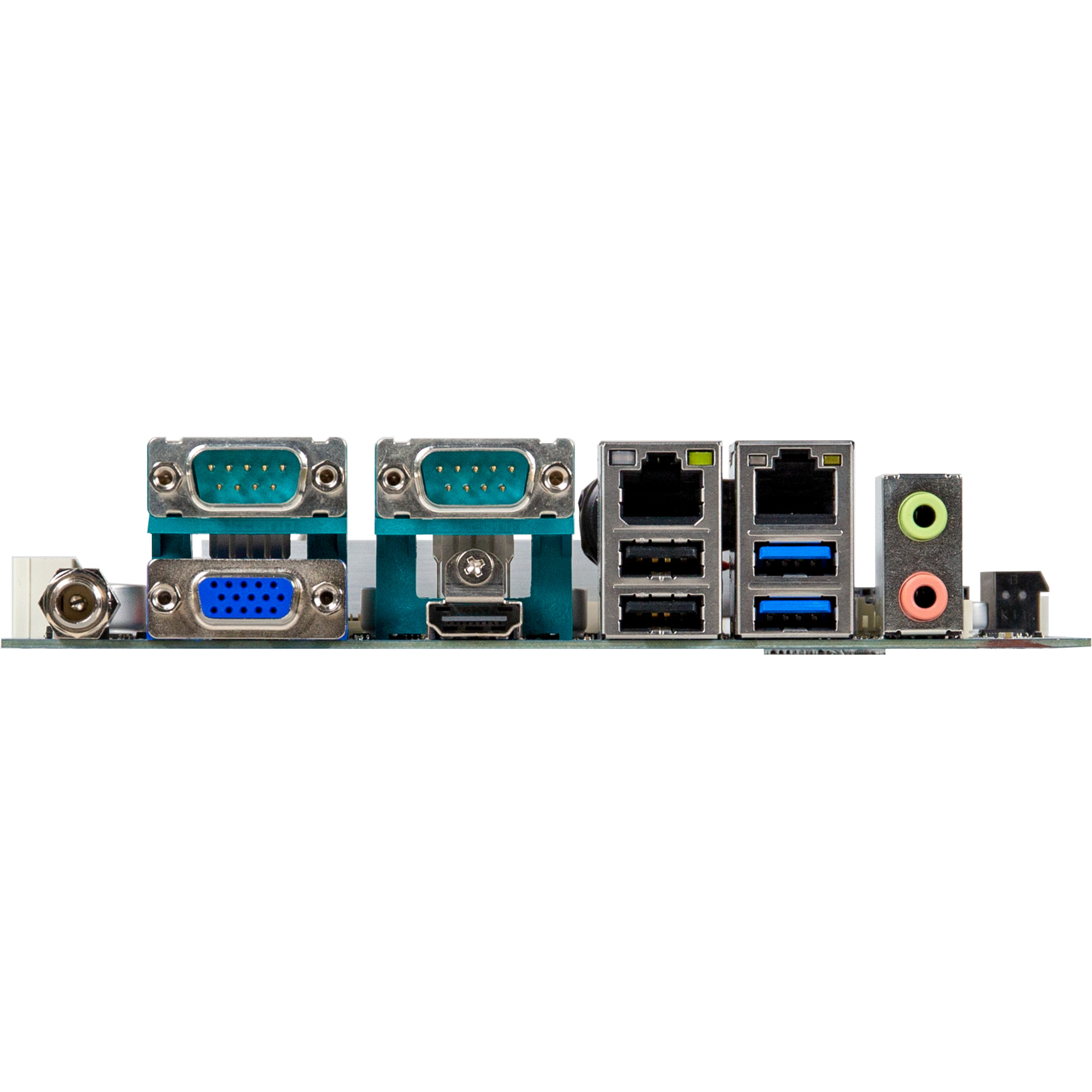

Rear l/O
2 x Audio Jacks (Line out, Mic in)
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x VGA
2 x RJ45 LAN Ports
2 x USB 2.0
2 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~+24VDC)
TPM
Onboard TPM 2.0 security chip
Infineon SLB9670VQ2.0
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size : 221 x 178 x 65 (mm)
Including:
IO Shield x 1 (P/N: 12AIO-MEHLJA-10R)
SATA power Cable x 3 (P/N: 25CRI-300B01-K1R)
Order Information
9MEHLJAIMR-SI (Box packing)
