ATX

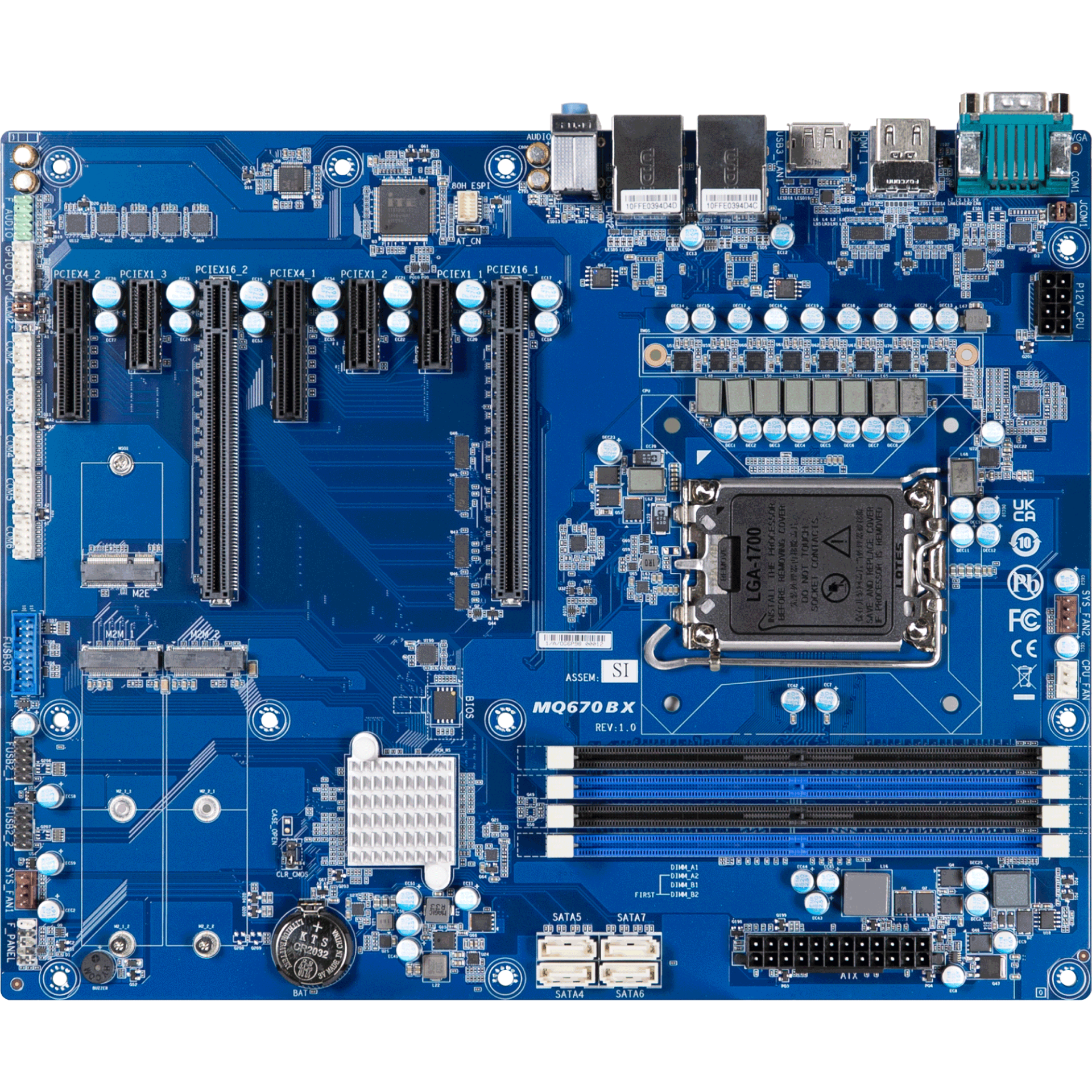

ATX-Q670B
ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR5 memory, 6 x COM, 10 x USB, 4 x SATA 6Gb/s, up to 7 x PCIe expansion slots
Key Features
• ATX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® Q670 Chipset
• Dual Channel DDR5, 4 x DIMMs
• 2 x 2.5GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• Up to 7 x PCIe expansion slots
• 10 x USB Ports
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 4 x COM Ports (RS-232)
컨텐츠 정보
본문
Specification
Form Factor
ATX
305W x 244D (mm)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 package
TDP under 125W
Socket
1 x LGA 1700
Chipset
Intel® Q670 Chipset
Memory
4 x DDR5 DIMM sockets, Max. Capacity 128 GB
Support Dual channel DDR5 4800 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226V & I226LM)
Video
Integrated Graphics Processor – depends on CPU:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x D-sub port, supporting a maximum resolution of 1920x1080 @60Hz
(4 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x SATA 6Gb/s Ports
RAID
RAID 0/1/5/10
Expansion Slots
1 x PCIe x16 (Gen 4x16)(PCIEX16_1)
* The PCIEX16_1 slot shares bandwidth with the PCIEX16_2 slot.
* The PCIEX16_1 slot operates at up to x8 mode when a device is installed in the PCIEX16_2 slot.
1 x PCIe x16 (Gen 4x8)(PCIEX16_2)
2 x PCIe x4 (Gen 3x4)
3 x PCIe x1 (Gen 3x1)
1 x 2280/2242 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s)(M2M_1)
1 x 2280/2242 M.2 M-Key (PCIe Gen4x4)(M2M_2)
1 x 2230 M.2 E-Key
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x System fan headers
1 x Front panel header
1 x Front panel audio header
4 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
4 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper

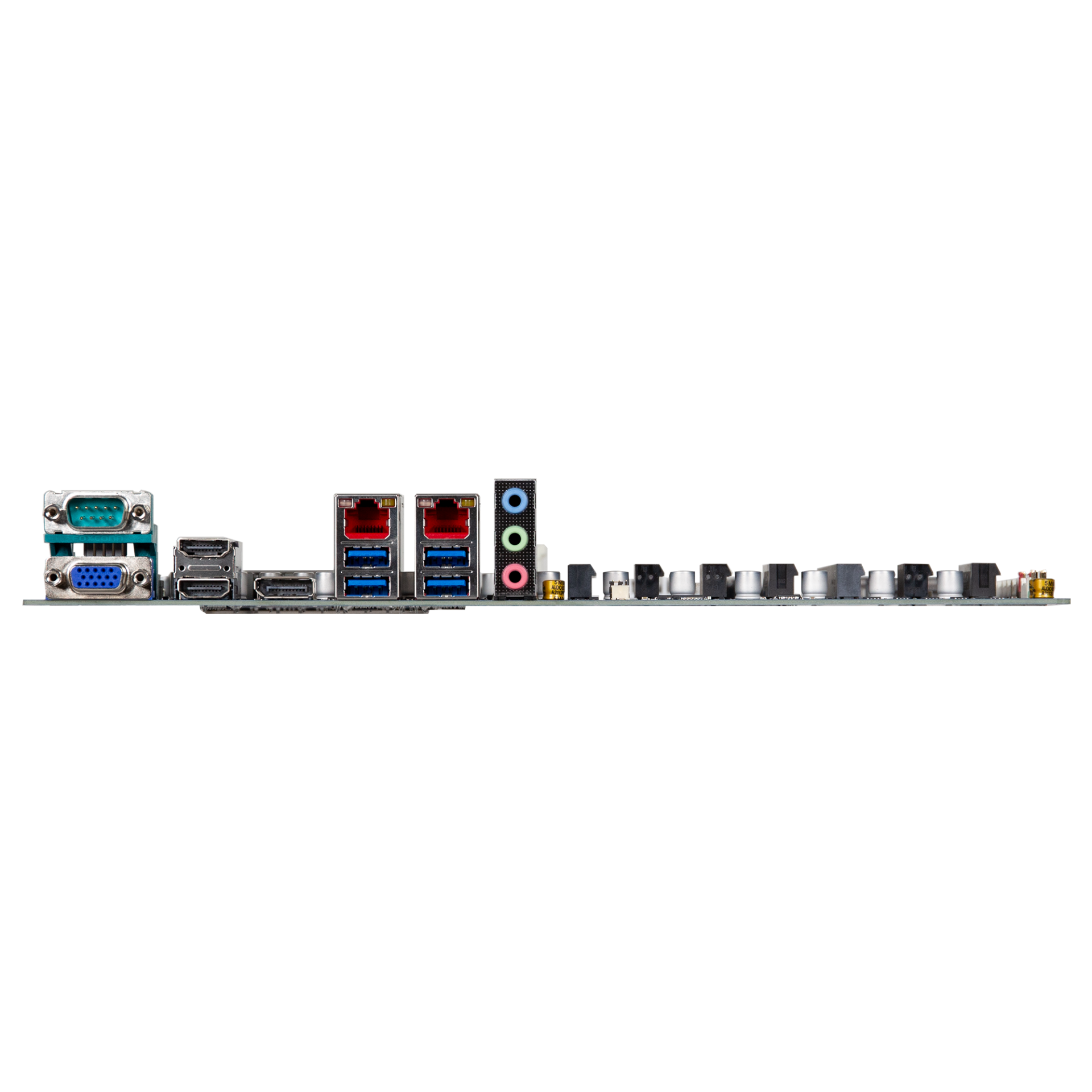

Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 679 x 430 x 399 (mm)
Packing Capacity: 10pcs
Single Box size: 360 x 330 x 80 (mm)
Including:
IO Shield x 1 (P/N: 12AIO-MQ670A-00R)
SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R)
Order Information
9MQ670BXMR-SI (Box packing)
Optional Kit
CPU Cooler : 12SF1-SK1700-01R (For CPU TDP 125W, Push-pin type)
CPU Cooler : 25ST0-037820-Y0R (For CPU TDP 65W)
CPU Cooler Backplate : 12KRH-0A1700-00R (Used with P/N: 25ST0-037820-Y0R)
VR Heatsink : 12SP2-090027-00R (Suggest to be used if CPU real power is over 100W)
