ATX

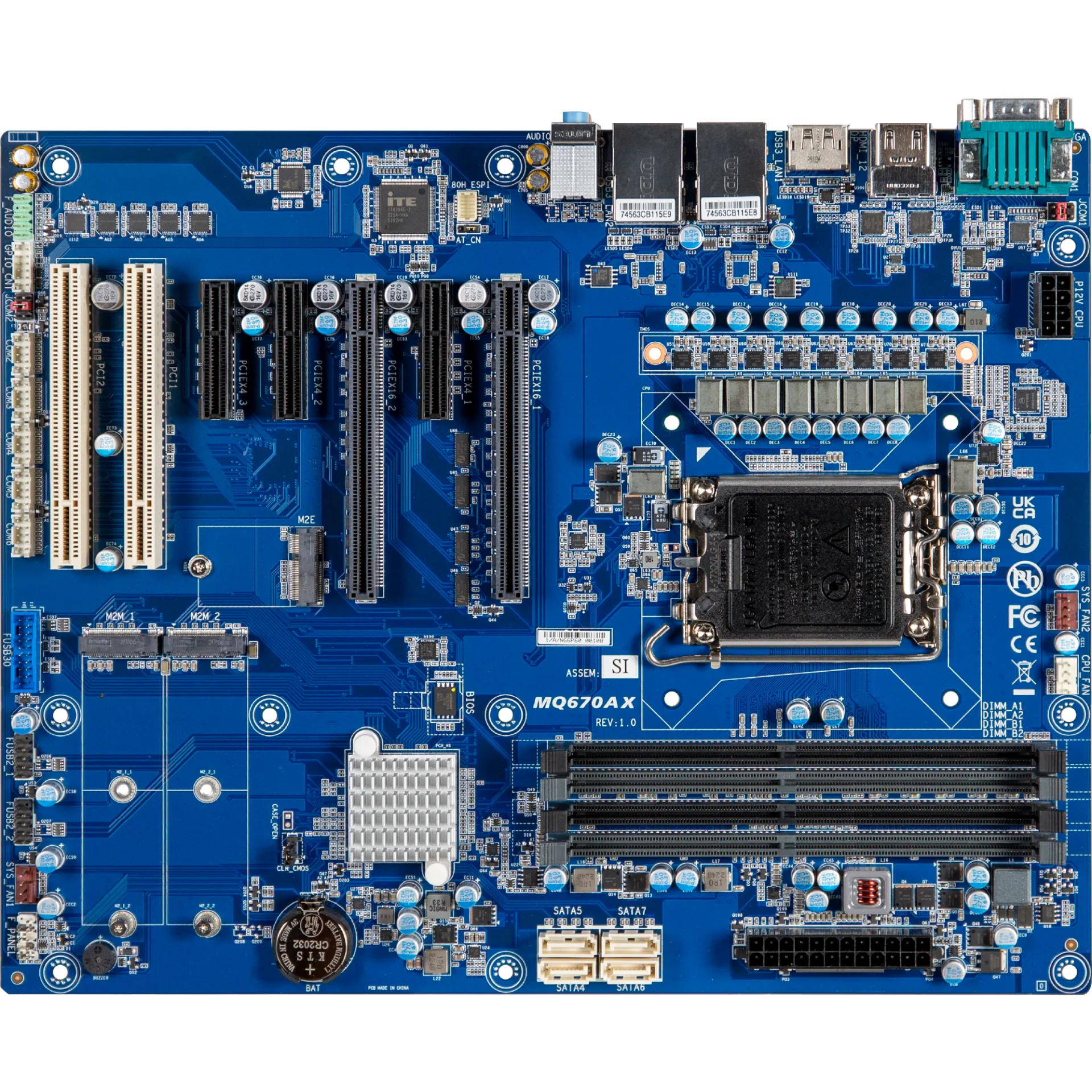

ATX-Q670A
ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, 6 x COM, 10 x USB, 4 x SATA 6Gb/s, up to 5 x PCIe expansion slots, and 2 x PCI expansion slots
Key Features
• ATX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® Q670 Chipset
• Dual Channel DDR4, 4 x DIMMs
• 2 x 2.5GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• Up to 5 x PCIe expansion slots, and 2 x PCI expansion slots
• 10 x USB Ports
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 4 x COM Ports (RS-232)
컨텐츠 정보
본문
Specification
Dimension
290.9W x 194.8D x 52.4H (mm)
LCD
Panel size : 11.6"
Resolution : 1366 x 768
Viewing angel : Horizontal : 170 / Vertical : 170
Brightness : 220 cd/m^2
Color Support : 262K Color
Contrast Ratio : 800
Touch screen
Touchscreen Type : Projected Capacitive (PCAP)
Surface Hardness : ≧ 6H
Transparency : 85%
CPU
Intel Processor N97
Intel 7, 4 cores, up to 3.60 GHz
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I225V)
I/O
2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 2.0
Storage
1 x 2280 M.2 M-Key
Power
Power Type : 19V/65W Power Adapter
DC Power Input : 12~36V DC
Operating temp. : 0~40 degree C
Physical
Construction Material : Front bezel ABS
Characteristics
Construction Material : Rear housing SECC, Aluminum
Weight
Approx. 1.7 Kg
Optional Kit
Wall mount
Stand with VESA 75
