IPC-402-Q670A

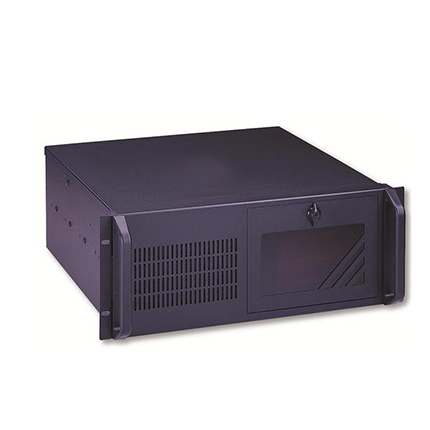

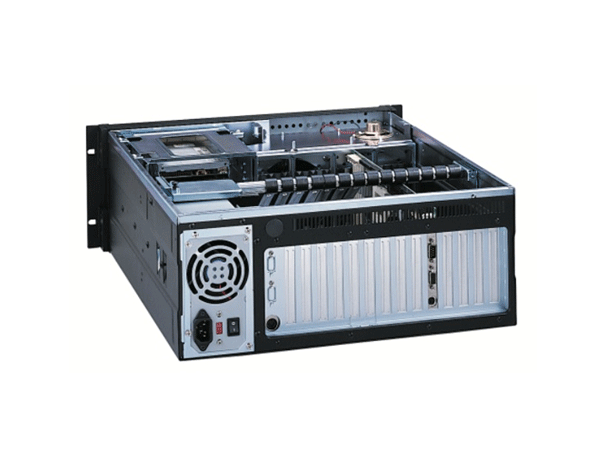

4U RACK Mount Chassis
Key Features
M/B : ATX
CPU : I7-12세대
RAM : DDR4 16GB
HDD : 1TB
SSD : 500GB
POWER : 500W
컨텐츠 정보
본문
Specification

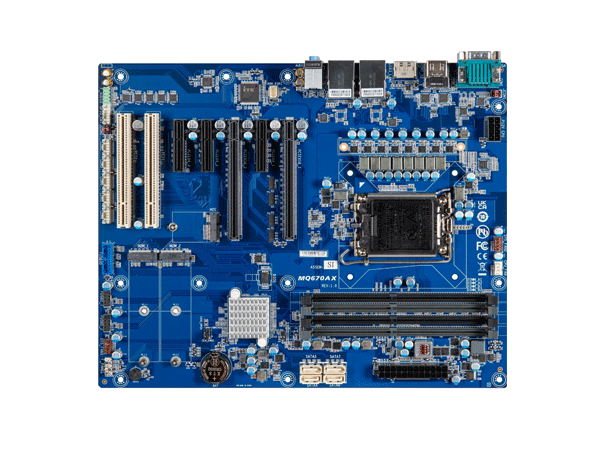

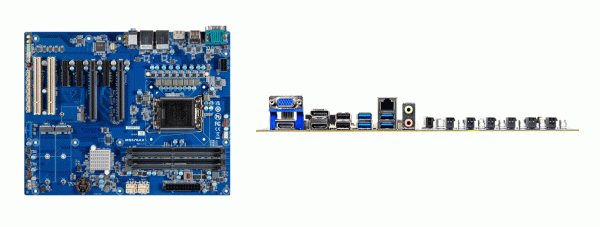

ATX-Q670A
• ATX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® Q670 Chipset
• Dual Channel DDR4, 4 x DIMMs
• 2 x 2.5GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• Up to 5 x PCIe expansion slots, and 2 x PCI expansion slots
• 10 x USB Ports
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 4 x COM Ports (RS-232)
‧ EIA RS-310C 19" Rackmount Standard
‧ Construction: Heavy Duty Cold Rolled Steel
‧ Color: Black (Standard), Beige or Custom
‧ System Boards: Pentium 4, Dual Xeon, Athlon 64, Dual Opteron
‧ Support ATX M/B (Max. to 12" x 9.6") (402ATXR)
‧ Support 14/15-slot Passive Backplane (402SR)
‧ Drive Capacity: 3x 5.25" CD-ROM & 1x 3.5" FDD
‧ Power Supply (Optional): PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 200mm
‧ Cooling: 2x (92mm = 51.0CFM ea.) Hot Swap Fans
‧ Front Door: Drive Panel Door With Keylock
‧ Air Filter: Inside Front Panel (Washable)
‧ Connector Dort (Front): 1x PS/2 for GH-402SR & 2x USB (Optional) Ports
‧ Indicators: LEDs for Power ON/OFF, HDD Activity
‧ Switch: Power ON/OFF, Momentary (Pushbutton), System Reset
‧ Flexible Hold Down Bar Designed
‧ Dimensions (W x H x D): 483 x 177 x 451mm (19.0" x 7.0" x 17.8")
‧ Cuft: 4.4
‧ GW: 16.5 kgs / 36.4 lbs
‧ Carton Size(cm): 61.8 x 34.0 x 59.0 (24.3" x 13.4" x 23.2")
‧ Humidity: 5% - 95% Non-condensing
