Panel PC
TA-270AN4000A-A1
Industrial Touch Panel Computer with Intel® N4000 CPU/ +12~24 DC input / 27" 1920x1080 / Fanless / Front IP65
Key Features

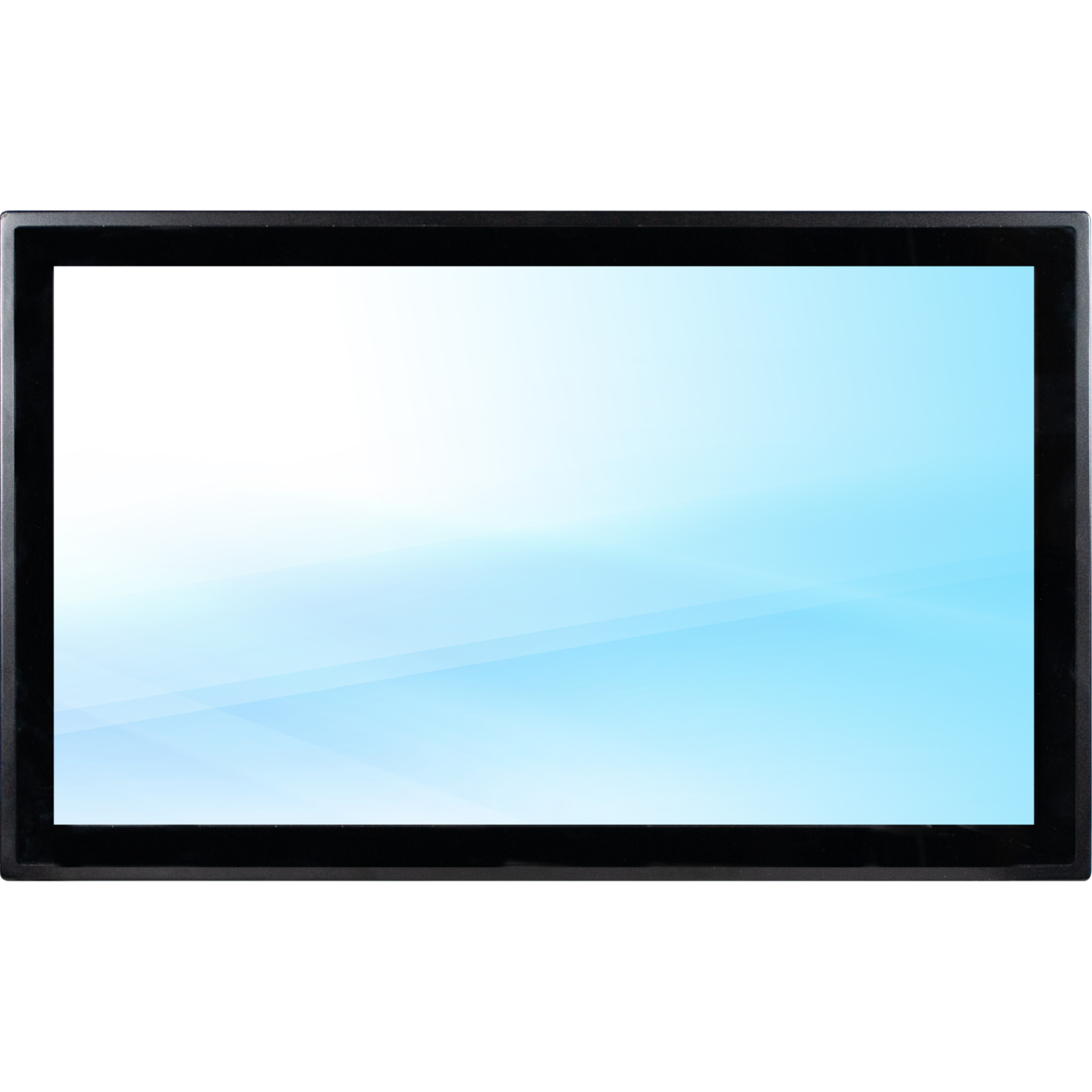

• 27" Touch Panel PC system
• Scratch proof PCAP touch screen
• Intel® Celeron® N4000 Processor
• Aesthetic front bezel and back housing design
• Front Case meet IP-65
• Fanless design to reduce maintenance
• Optional WiFi connection
• VESA Mount & Stand support
컨텐츠 정보
본문
Specification
Dimension
662.6W x 406.6D x 53.6H (mm)
LCD
Panel size : 27"
Resolution : 1920x1080
Viewing angel : Horizontal : 178 / Vertical : 178
Brightness : 300 cd/m^2
Color Support : 16.7M Color
Backlight MTBF : 30,000 hrs
Contrast Ratio : 3000
Touch screen
Touchscreen Type : Projected Capacitive (PCAP)
Surface Hardness : ≧ 7H
Transparency : 86%
CPU
Intel® Celeron® N4000 Processor
14nm, 2 cores, 2 threads, up to 2.6 GHz
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR4 2400 MHz memory modules
Ethernet
1 x GbE LAN Port (Realtek® RTL8111HS)
Graphics support
Integrated Graphics Processor - Intel® UHD Graphics 600:
1 x DP port (Rear/SDM side), supporting a maximum resolution of 4096x2160 @60Hz
(1 independent display output)
Audio
Intel® Integrated Audio
Expansion Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key

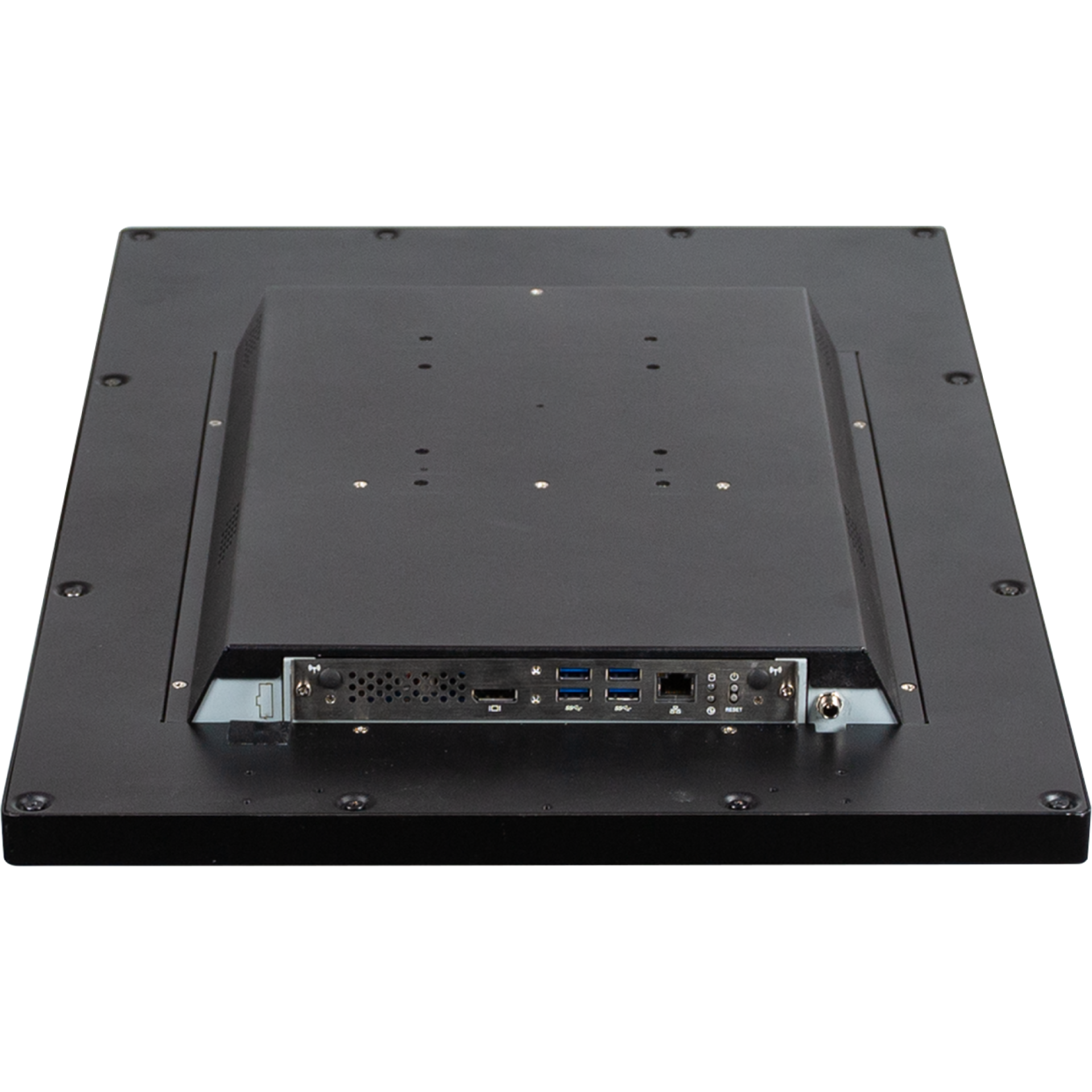

I/O
1 x Display Port
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
Storage
1 x eMMC 32GB storage (onboard)
Power
+12V~24VDC
Weight
Approx. 11.6 Kg
IP Protection
Front bezel meets IP-65
Operation Temperature
Operating temperature: 0°C to 40°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Packaging Content
Carton size: 784 x 763 x 540 (mm)
Packing Capacity: 1pc
Including:
Power cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
Screws For VESA mounting M4x6L x 4
Order Information
25OL5-272700-M0R (8GB DDR5 RAM, 128GB M.2 SSD)
Mounting
Wall, Stand with VESA 75 x 75
