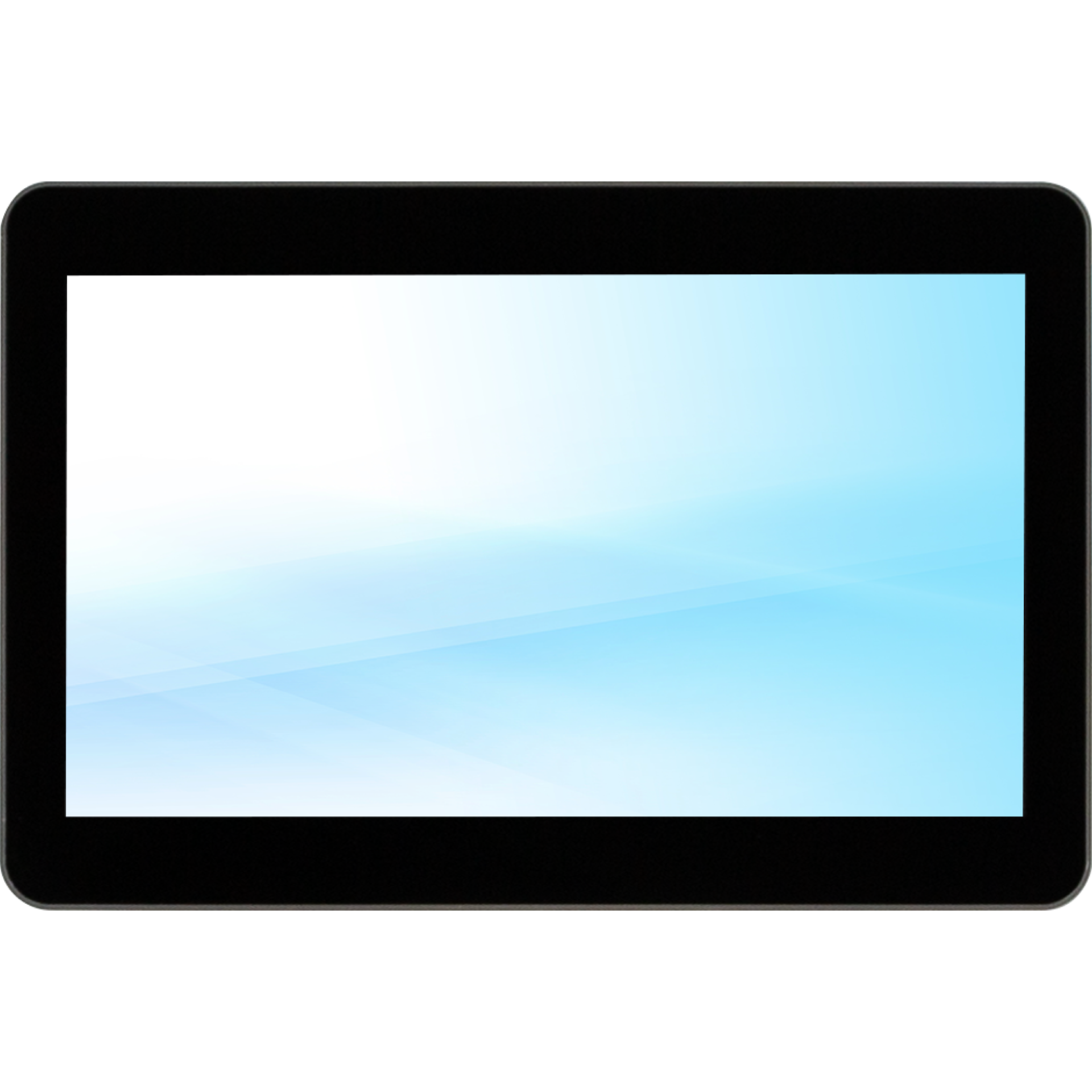

Panel PC
TA-116AN97A-A1
Industrial Touch Panel Computer with Intel® N97 CPU/ +12~36 DC input / 11.6" 1366x768 / Fanless / Front IP65
Key Features
• 11.6" Touch Panel PC system
• Scratch proof PCAP touch screen
• Intel® N97 processor
• Aesthetic front bezel and back housing design
• Front Case meet IP-65
• Fanless design to reduce maintenance
• VESA Mount & Stand support
컨텐츠 정보
본문
Specification
Dimension
290.9W x 194.8D x 52.4H (mm)
LCD
Panel size : 11.6"
Resolution : 1366x768
Viewing angel : Horizontal : 170 / Vertical : 170
Brightness : 220 cd/m^2
Color Support : 262K Color
Backlight MTBF : 15,000 hrs
Contrast Ratio : 800
Touch screen
Touchscreen Type : Projected Capacitive (PCAP)
Surface Hardness : 6H
Transparency : 85%
CPU
Intel Processor N97
Intel 7, 4 cores, up to 3.60 GHz
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I225V)
Graphics support
Integrated Graphics Processor - Intel® UHD Graphics:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC897
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x2)
1 x 2230 M.2 E-Key
1 x Full-size mini PCIe with SIM slot

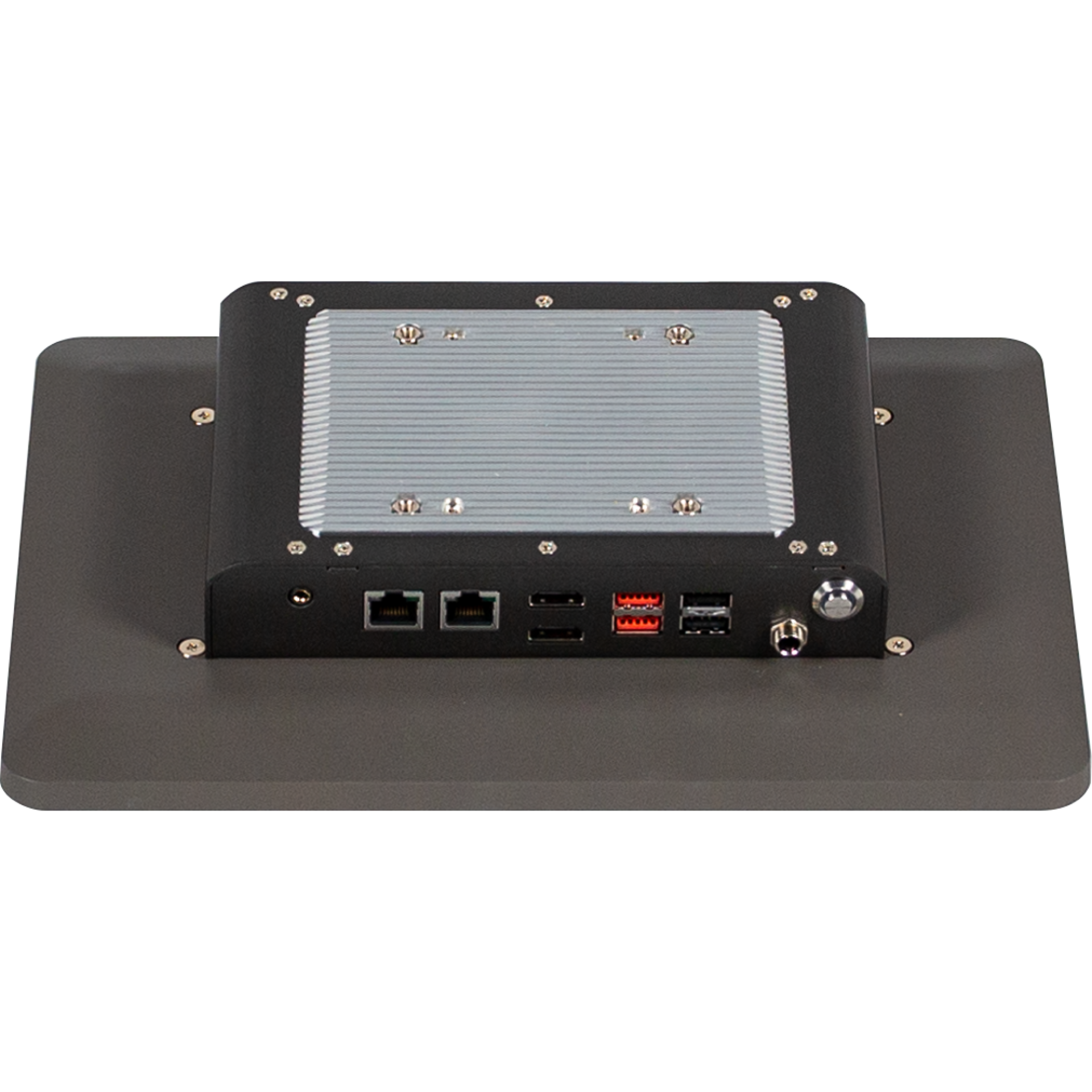

I/O
2 x USB 3.2 Gen 2x1
2 x USB 2.0
2 x RJ45 LAN Ports
2 x HDMI
1 x Headphone Jack
1 x Power button with LED
1 x DC input with DC Jack
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
Power
+12V~36VDC
Weight
Approx. 1.7 Kg
IP Protection
Front bezel meets IP-65
Operation Temperature
Operating temperature: 0°C to 40°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packaging Content
Carton size: 308 x 294 x 164 (mm)
Packing Capacity: 1pc
Including:
Power cord : Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
Screws For VESA mounting M4x6L x 4
Order Information
25OL5-111100-M0R (8GB DDR5 RAM, 128GB M.2 SSD)
Mounting
Wall, Stand with VESA 75 x 75
