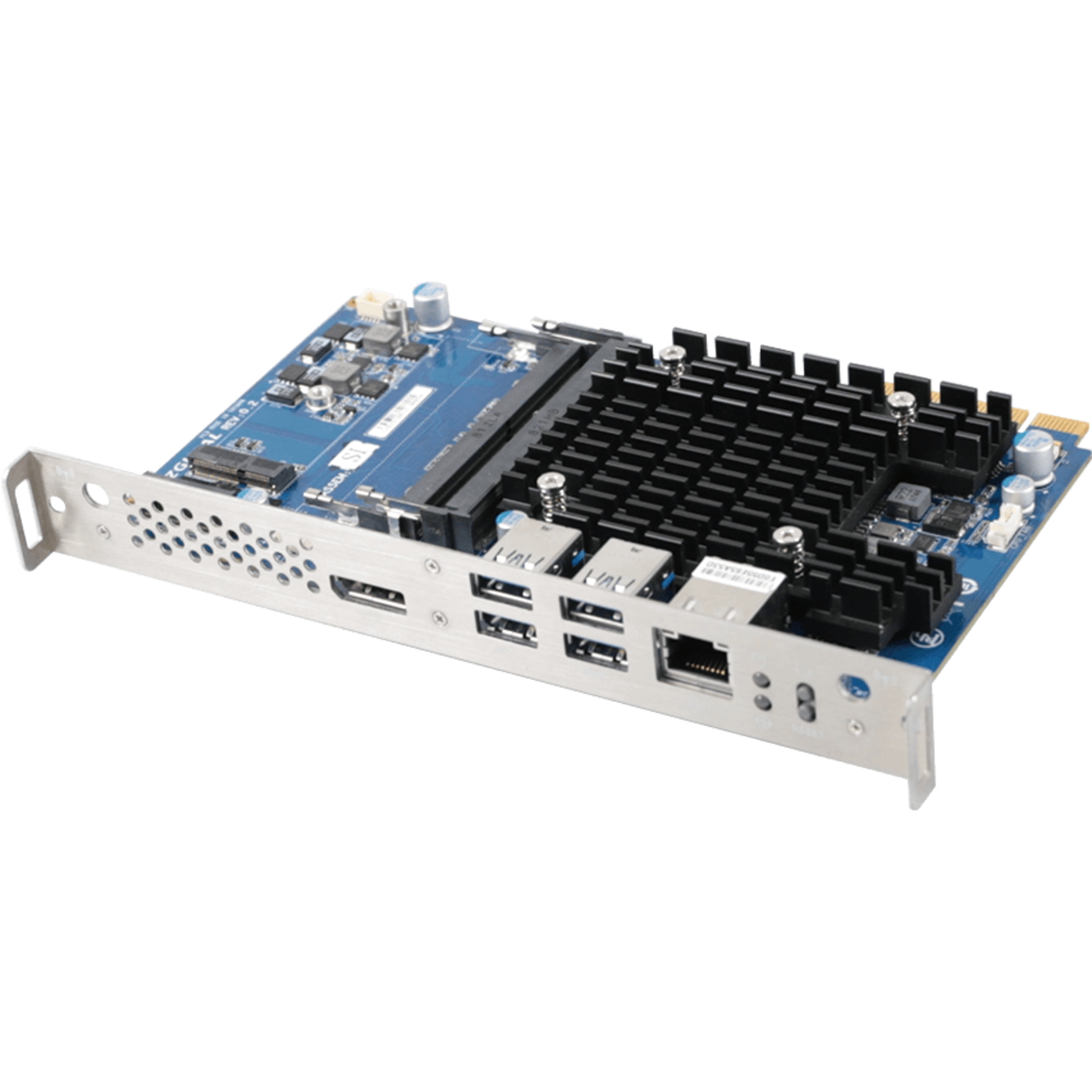

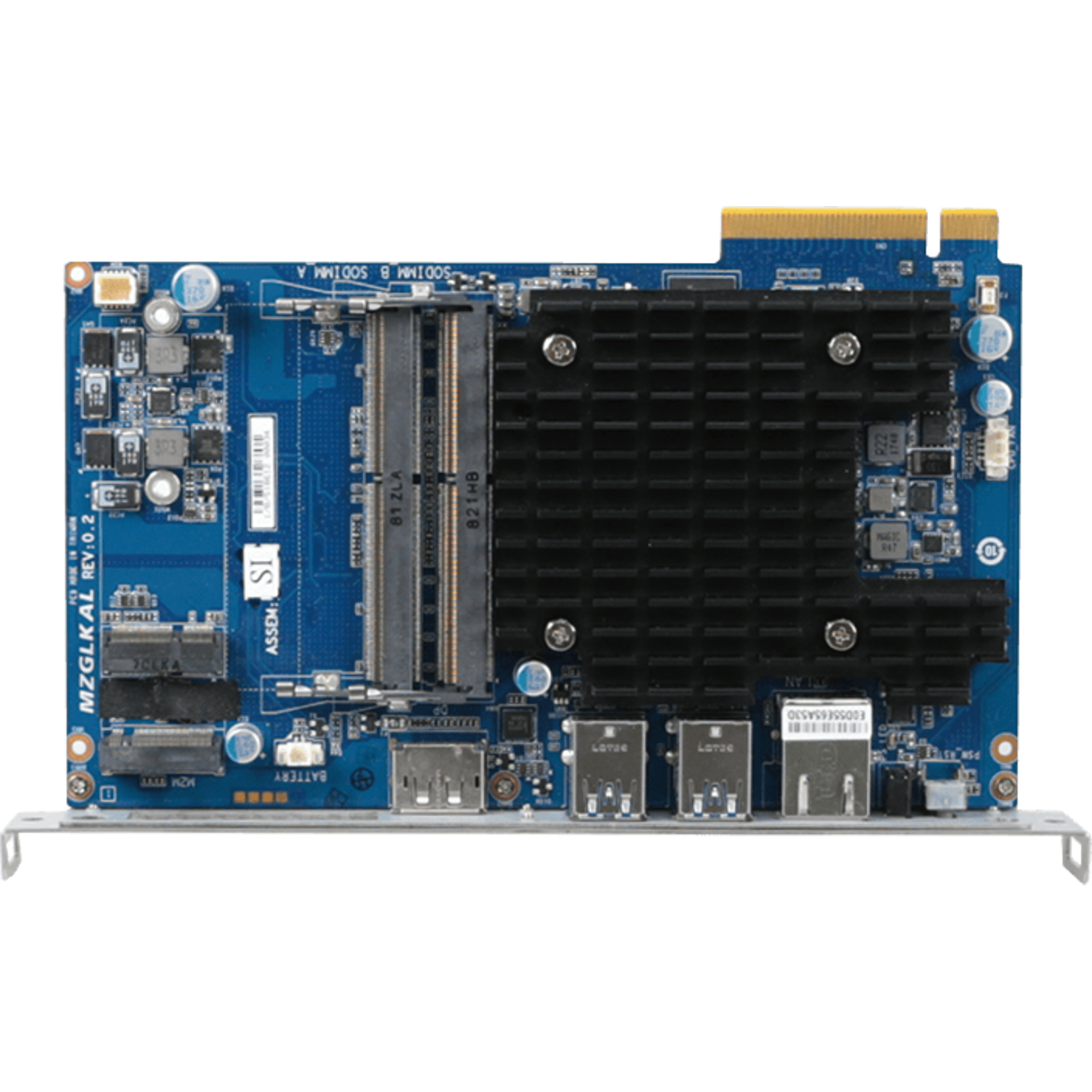

Smart Display Module SDM
SDM-4000L
Intel® Smart Display Module with Intel® Celeron® N4000 Processor, Fanless Design
Key Features
• Intel® Celeron® N4000 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x GbE LAN Port
• HDMI and DP for dual display outputs
• M.2 with SATA III 6Gb/s
• 4 x USB 3.2 Gen 1
• 1 x eMMC 32GB
컨텐츠 정보
본문
Specification
Form Factor
SDM-Large
175W x 100D(mm)
CPU
Intel® Celeron® N4000 Processor
14nm, 2 cores, 2 threads, up to 2.6 GHz
TDP 6W
Socket
1 x FCBGA 1090
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR4 2400 MHz memory modules
Ethernet
1 x GbE LAN Port (Realtek® RTL8111HS)
Video
Integrated Graphics Processor - Intel® UHD Graphics 600:
1 x HDMI 2.0 port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port (Rear/SDM side), supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Intel® Integrated Audio
Storage
1 x eMMC 32GB
Expansion Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-key (WiFi/BT)

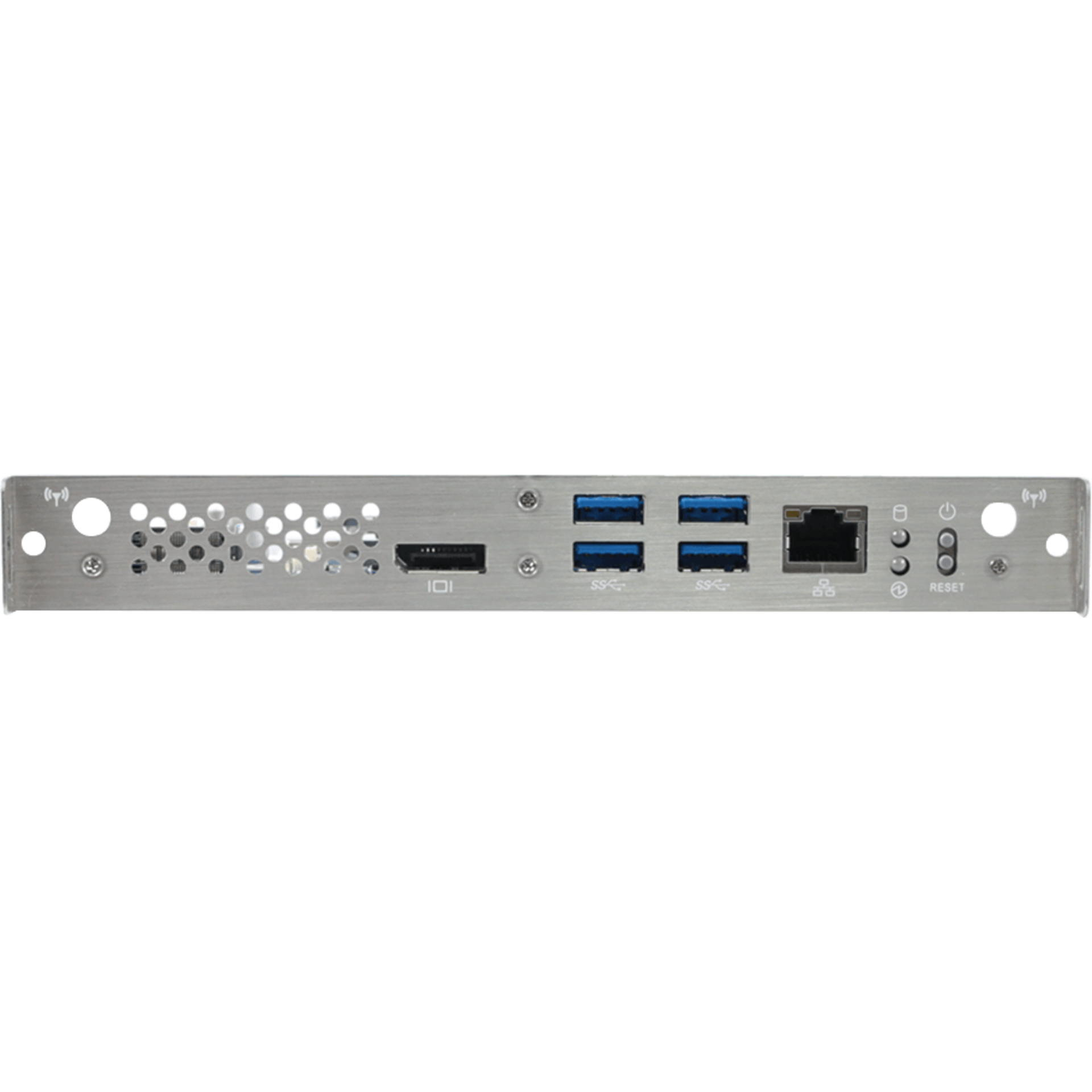

Rear l/O
1 x Display Port
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
OS Compatibility
Windows® 10 (x64)
Operating Properties
Operating temperature: 0°C to +55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.46kg
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Order Information
9MZGLKALMR-SI (Box packing)
