Smart Display Module SDM
SDM-1185G7EL
Intel® Smart Display Module with Intel® 11th Generation Core™ i7-1185G7E Processor
Key Features
• 8K Smart Display Module (SDM)
• Intel® Core™ i7-1185G7E Processor
• 16GB LPDDR4x-4267 MT/s (Soldered)
• 1 x 2.5GbE LAN Port
• 2 x USB 3.2 Type A Gen 2x1
• 1 x USB 3.2 Type C Gen 2x1 (with DP output)
• 2 x HDMI 2.0
• Environment : Operation 0°C to 55°C
컨텐츠 정보
본문
Specification
Form Factor
SDM-Large
175W x 100D(mm)
CPU
Intel® Core™ i7-1185G7E Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.40 GHz
TDP 28W
Socket
1 x FCBGA1449
Memory
16GB LPDDR4x-4267 MT/s (Soldered)
Ethernet
1 x 2.5GbE LAN Port (Intel® I225LM)
Video
Integrated Graphics Processor - Intel® Iris Xᵉ Graphics:
2 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz
2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz
(4 independent display outputs)
Audio
Intel® Integrated Audio
Storage
1 x 2280 M.2 M-Key (Support NVME only)
Default SSD supplied with 128GB and heatsink
Expansion Slots
1 x 2230 M.2 E-Key (with Intel® AX210 Wi-Fi Card)
1 x 3052 M.2 B-Key (Support 5G)

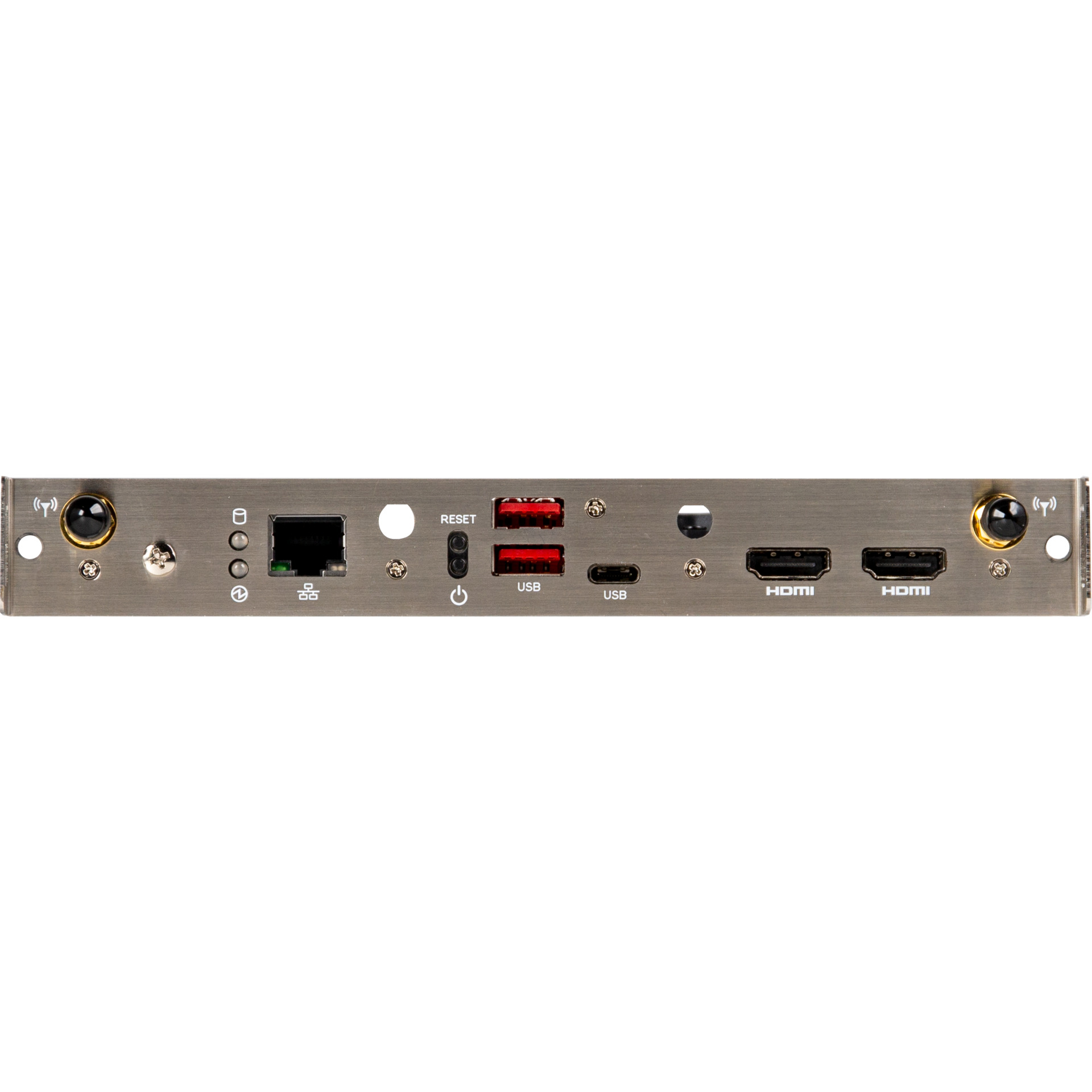

Rear l/O
2 x HDMI
1 x RJ45 LAN Port
2 x USB 3.2 Type A Gen 2x1
1 x USB 3.2 Type C Gen 2x1 (with DP output)
1 x PWR LED
1 x HDD LED
4 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
TPM
1 x TPM header (SPI interface)
OS Compatibility
Windows® 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 55°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 469 x 382 x 381 (mm)
Packing Capacity: 10pcs
Single Box size: 345 x 221 x 70 (mm)
Single Box weight : Approx. 1.5kg
Including :
US power cord x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 12V 120W 100-240VAC x 1 (P/N: 25EP4-201202-F3S)
External Antenna for WiFi module x 2 (P/N: 25CA0-163002-A5S)
Order Information
9MTGU7BLMR-IA (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
