MXM Series
MXM-A-A370M

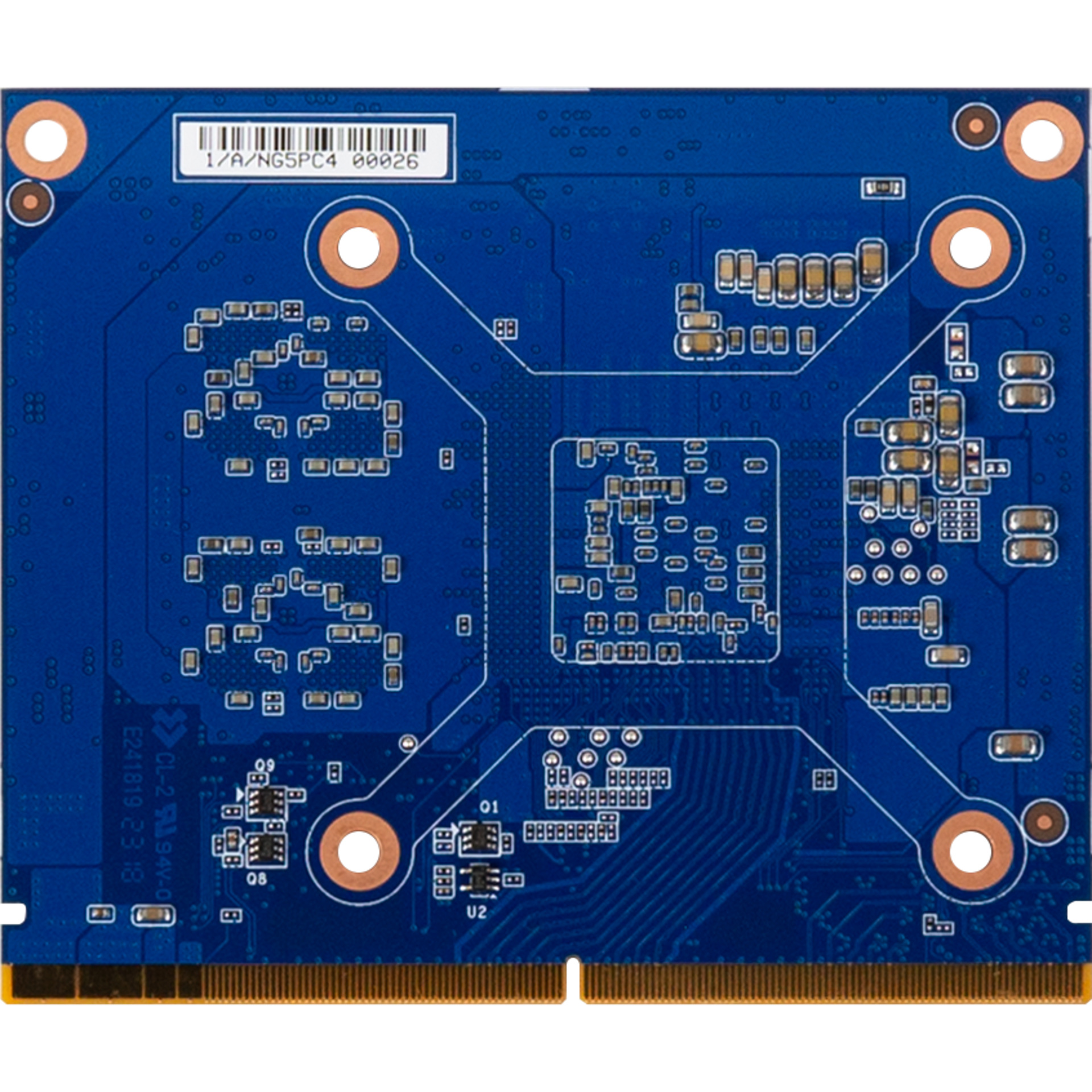

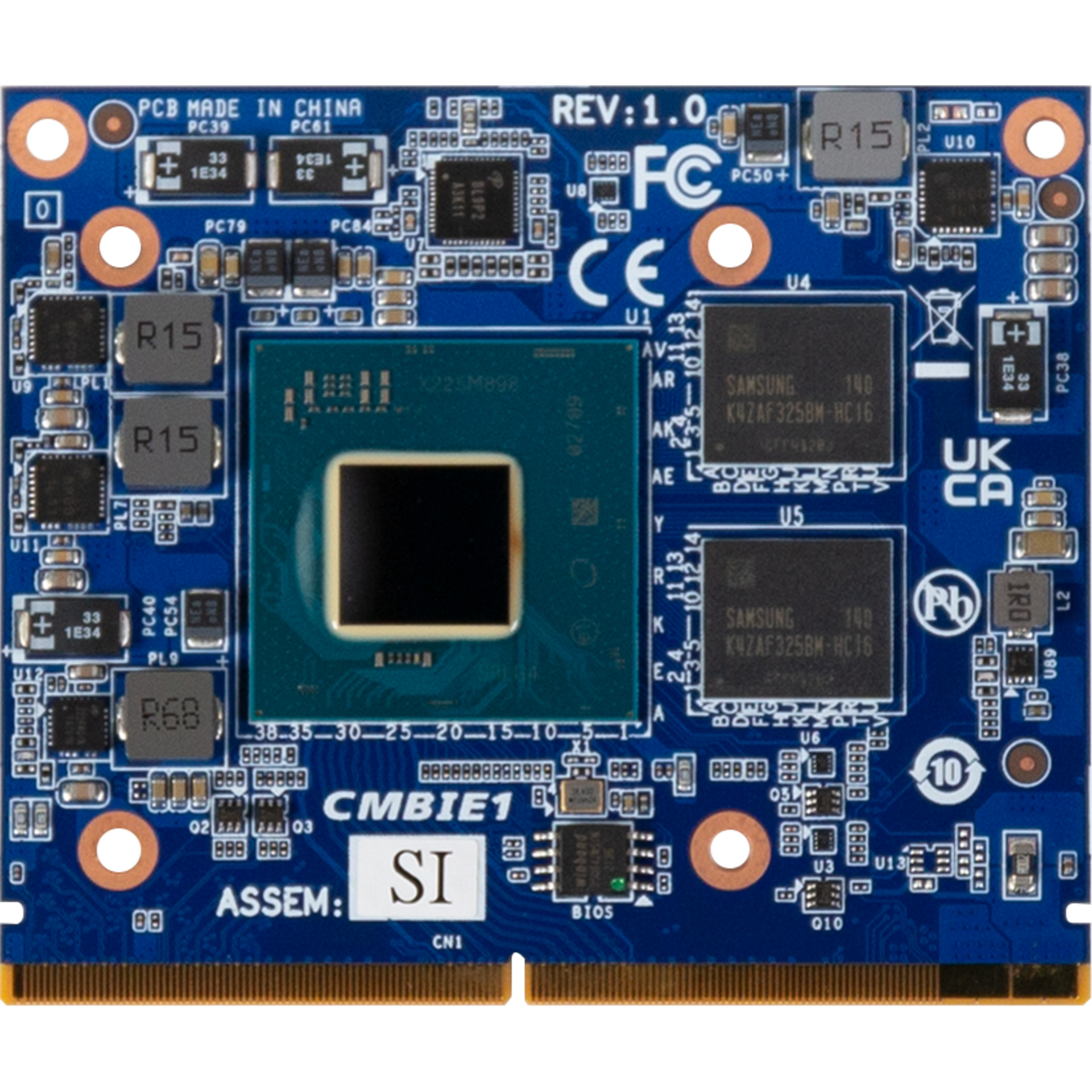

MXM module type A with Intel® Arc™ A370M Graphics
Key Features
• Intel® Arc™ A370M Graphics
• GDDR6 4GB 64 bit Memory
• Support Xe HPG Architecture
• Support for XMX AI acceleration
• Support 4 x DP2.0 (8K) resolution
컨텐츠 정보
본문
Specification
Dimension
MXM module type A
82W x 70D (mm)
GPU
Intel® Arc™ A370M Graphics
Microarchitecture: Xe HPG
Xe-cores: 8
Intel® XMX Engines: 128
Graphics clock: 1550 MHz
TGP: 35-50W
PCI Express configurations
PCI Express 4.0x8
Memory
GDDR6 4GB, 64bit memory bus
Memory speed: 14 Gbps
Bandwidth: 112 GB/s
Graphics
Reserved 4 x DP 2.0
supporting a maximum resolution of 7680x4320 @60Hz
(4 independent display outputs)
OS Compatibility
Windows® 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing
Packing Content
Carton size: 384 x 251 x 211 (mm)
Packing Capacity: 20pcs
Single Box size : 168 x 112 x 34 (mm)
Single Box weight: Approx. 0.15kg
Order Information
9CMBIE1MR-SI (Box packing)
