COM Express Series
E6-EVBB

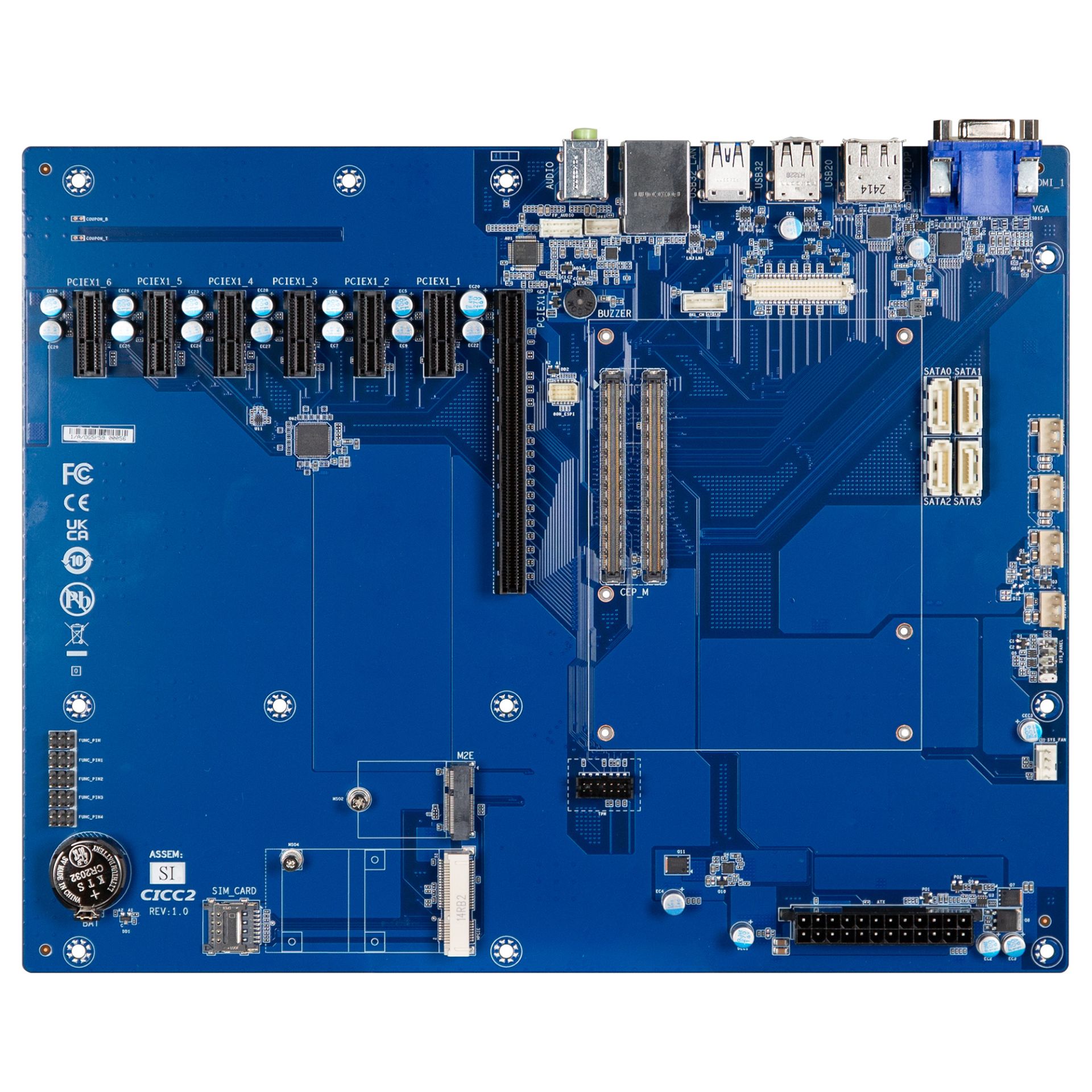

COM Express Type 6 Evaluation board
Key Features
• ATX Form Factor
• PICMG COM Express® R3.0 Type 6 pinout compatible
• HDMI, DP, VGA, LVDS ports for multiple display
• 1 x PCIe x16 expansion slot
• 6 x PCIe x1 expansion slot
• 2 x USB 2.0
• 4 x USB 3.2 Gen 1
컨텐츠 정보
본문
Specification
Form Factor
ATX form factor
305W x 244D (mm)
Compatible models
PICMG COM Express® R3.0
Type 6 pinout compatible
Ethernet
1 x GbE LAN Port
Graphics
Integrated Graphics Processor:
2 x HDMI 2.0 port
1 x DP port
1 x LVDS port
1 x VGA port
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16
6 x PCIe x1
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
Internal I/O
1 x 24 pin ATX main power connector
4 x SATA Power connectors
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x Backlight Control header
1 x Speaker out header
1 x TPM header
1 x Buzzer

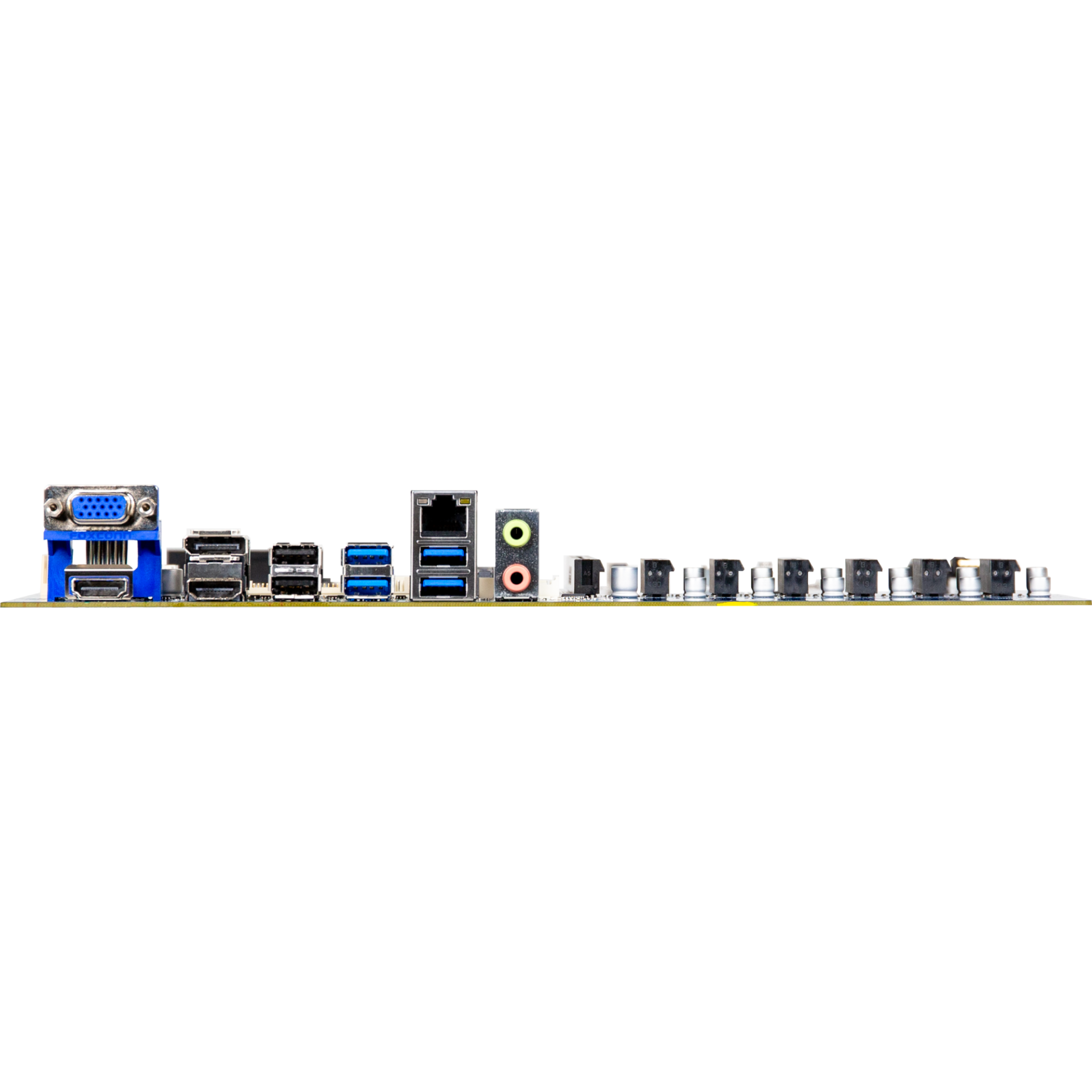

Rear l/O
2 x Audio Jacks (Line out, Mic in)
2 x HDMI
1 x VGA
1 x DP
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
2 x USB 2.0
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 679 x 430 x 399 (mm)
Packing Capacity: 10pcs
Single Box size: 360 x 330 x 80 (mm)
Including:
IO Shield x 1 (P/N: 12AIO-CICC20-00R)
SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R)
Standoff Screw x 4 (P/N: 25KSC-720020-G0R)
Order Information
9CICC2MR-SI (Box packing)
