Peripheral Cards
CIOPH-SI

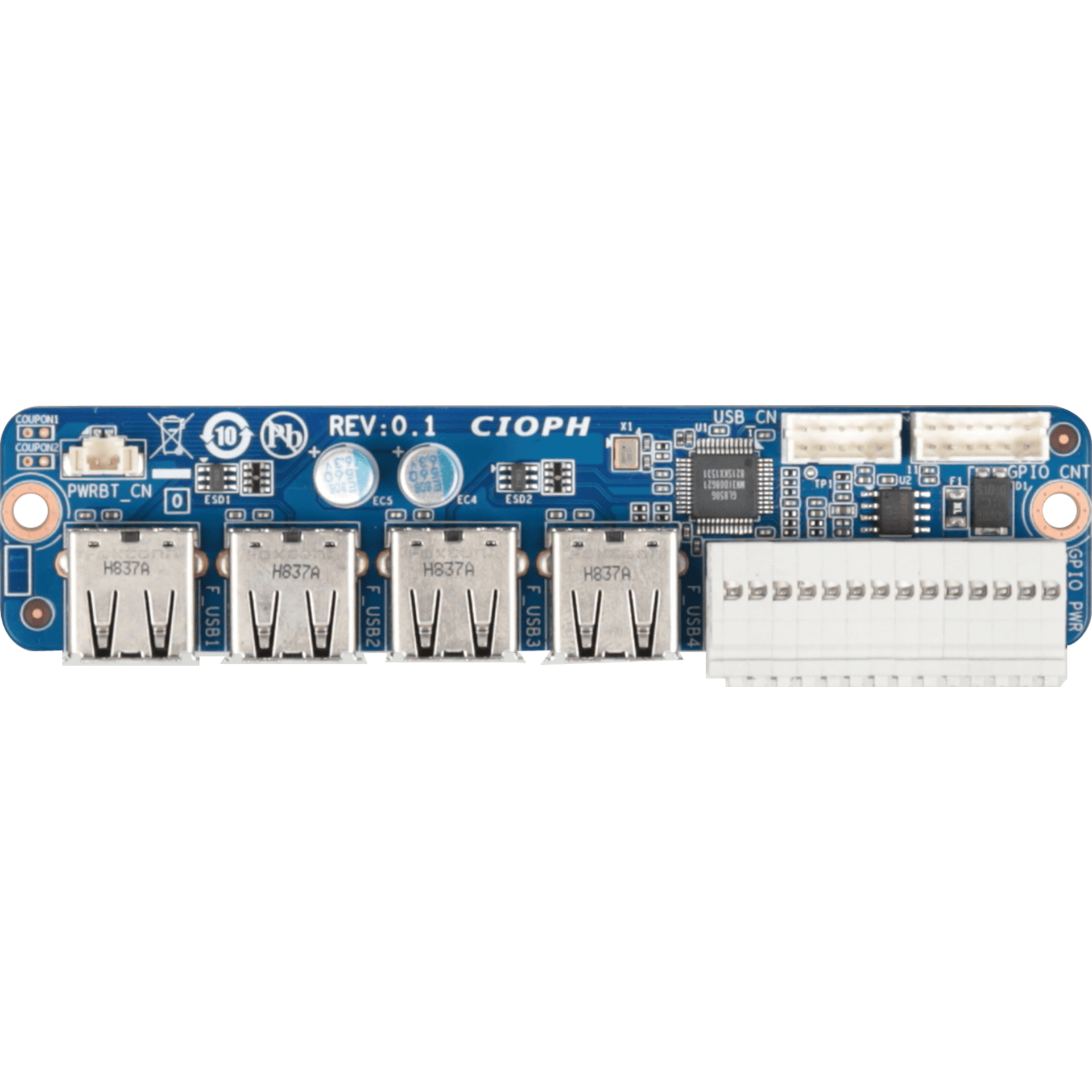

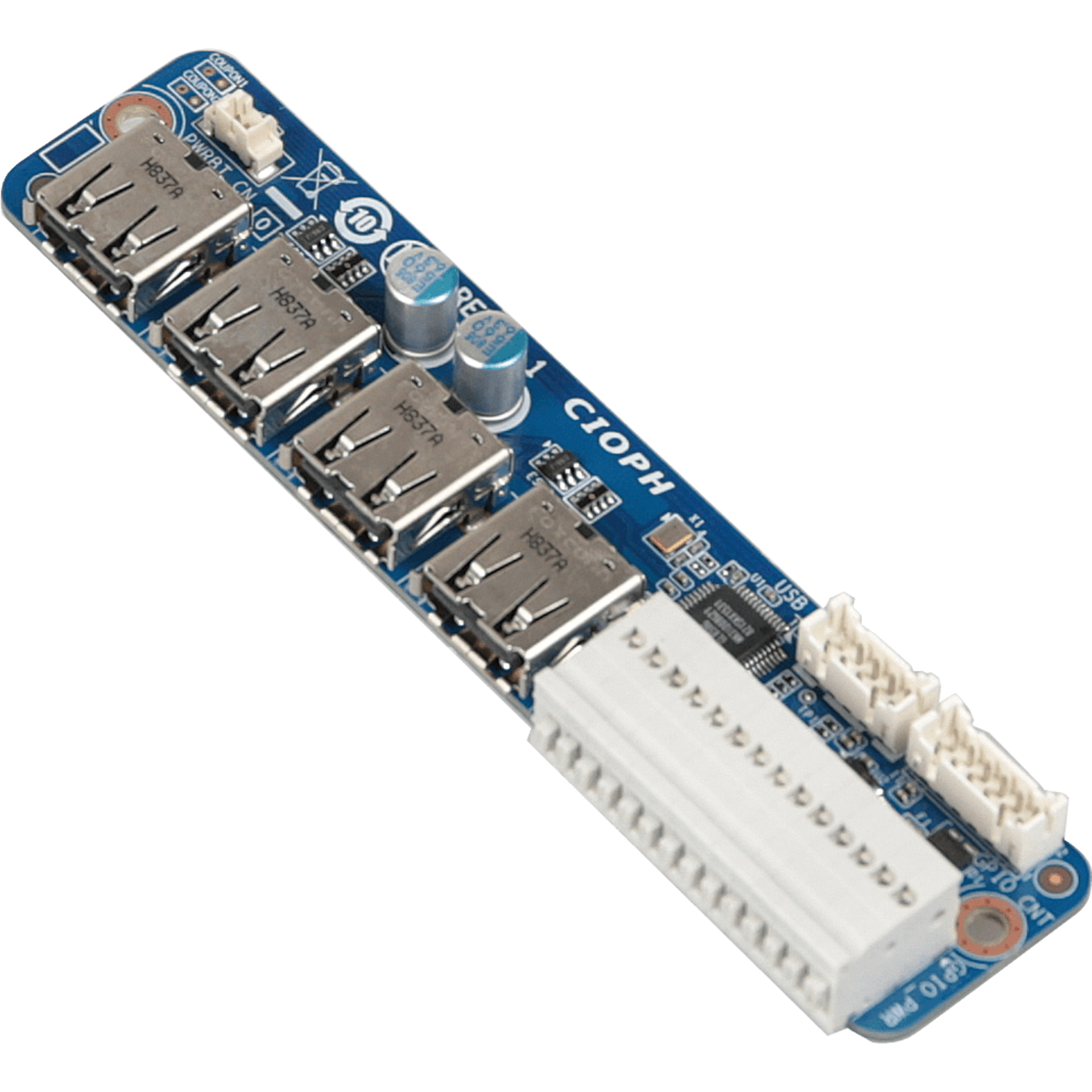

I/O Converter Board with 4 x USB 2.0 Ports, 1 x GPIO Connector
Key Features
• Converter Board with 4 USB 2.0 and GPIO
• 1 x USB 2.0 header to 4 x USB 2.0 Ports (Type A)
• 1 x GPIO header to 1 x GPIO peripheral connector
• 1 x Remote header to peripheral connector
컨텐츠 정보
본문
Specification
Dimension
156W x 26D x 11.6H(mm)
Internal I/O
1 x USB 2.0 header
1 x GPIO header
1 x Remote header

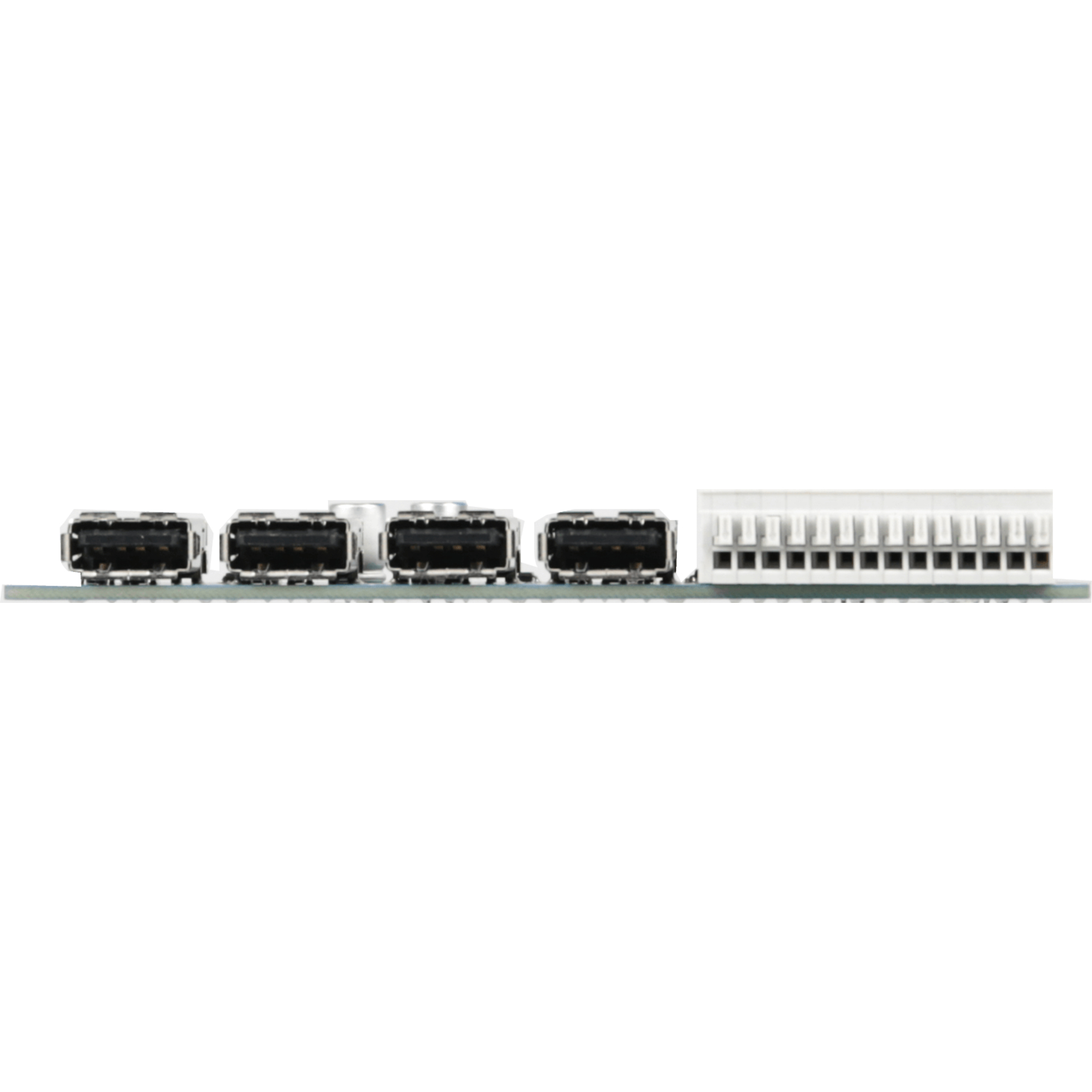

Rear l/O
4 x USB 2.0 Ports (Type A)
1 x GPIO peripheral connector
1 x Peripheral Connector
Order Information
9CIOPHNR-SI
