MXM Series
CIEPI-SI

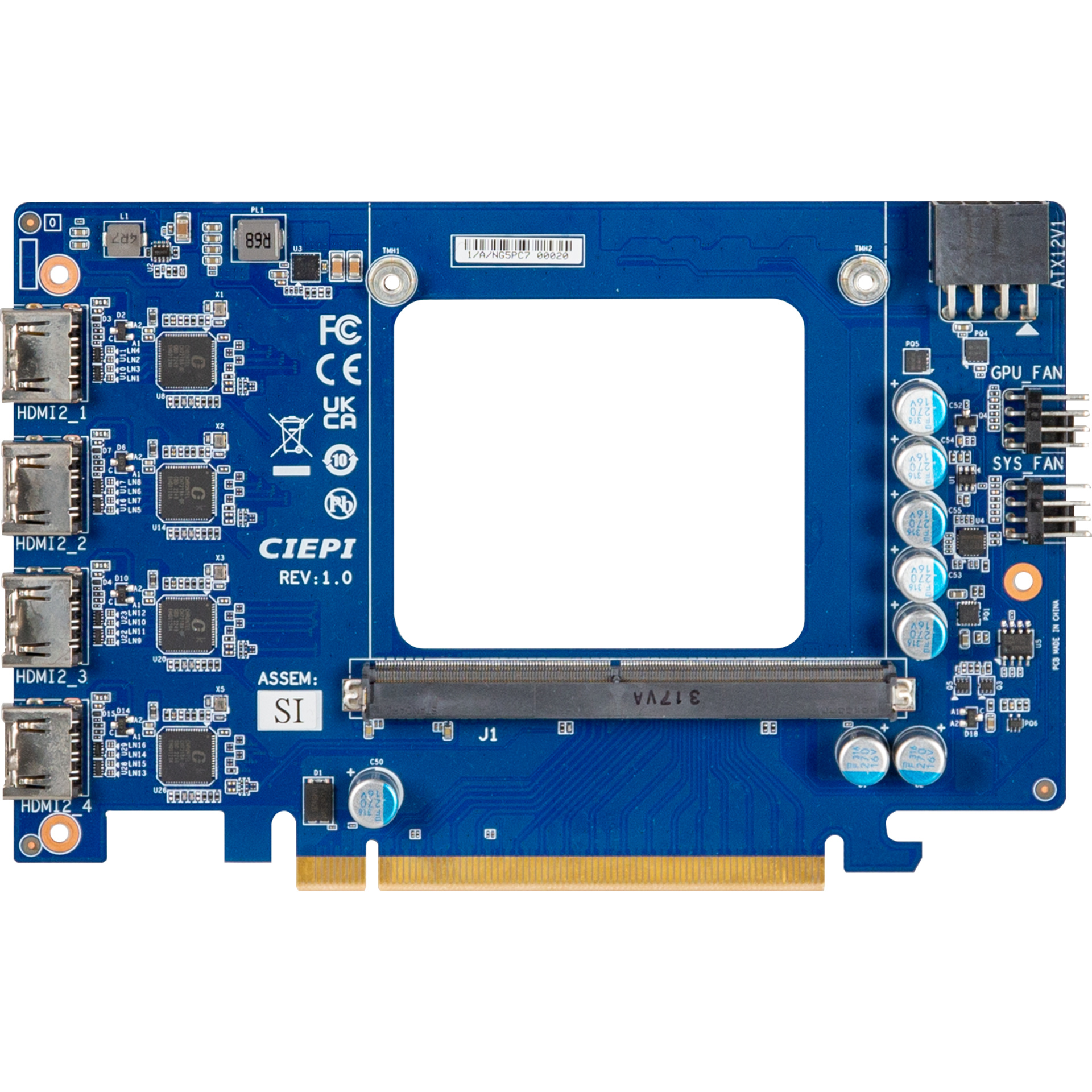

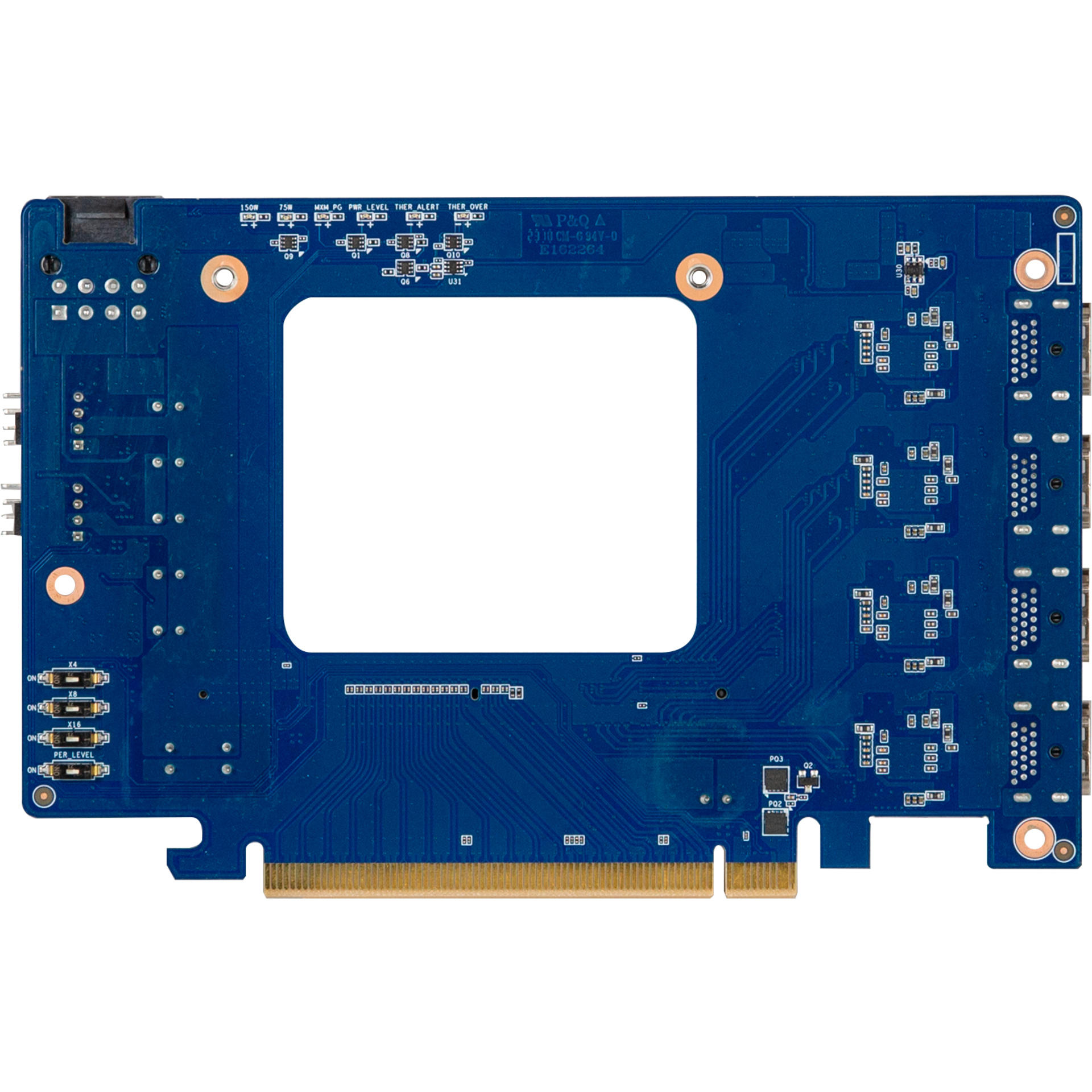

PCIe-to-MXM adapter with 4 x HDMI 2.1 outputs, compatible with GIGAIPC MXM modules
Key Features
• Support 4 x HDMI 2.1 outputs
• Compatible with GIGAIPC MXM modules
• Compatible with MXM 3.1 Type A
• Support PCI Express 4.0
컨텐츠 정보
본문
Specification
Dimension
167.65 x 111.15 (mm)
Compatible models
MXM-A-A370M
MXM-B-A730M
PCI Express configurations
PCI Express 4.0x16
Display outputs
4 x HDMI 2.1 port, supporting a maximum resolution of 7680x4320 @60Hz
MK Power Connector
8-pin power connector
GPU Fan Connector
12V DC fan power connector
System Fan Connector
12V DC fan power connector
OS Compatibility
Windows® 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing
Packing Content
Carton size: 310 x 257 x 234 (mm)
Packing Capacity: 6pcs
Single Box size : 250 x183 x 35 (mm)
Including:
I/O Bracket x 1 (P/N: 25HB2-CIEP60-H5R)
Screws for I/O Bracket, M3x4L x 10 (P/N: 25982G-1C016-S00)
Order Information
9CIEPIMR-SI (Box packing)
