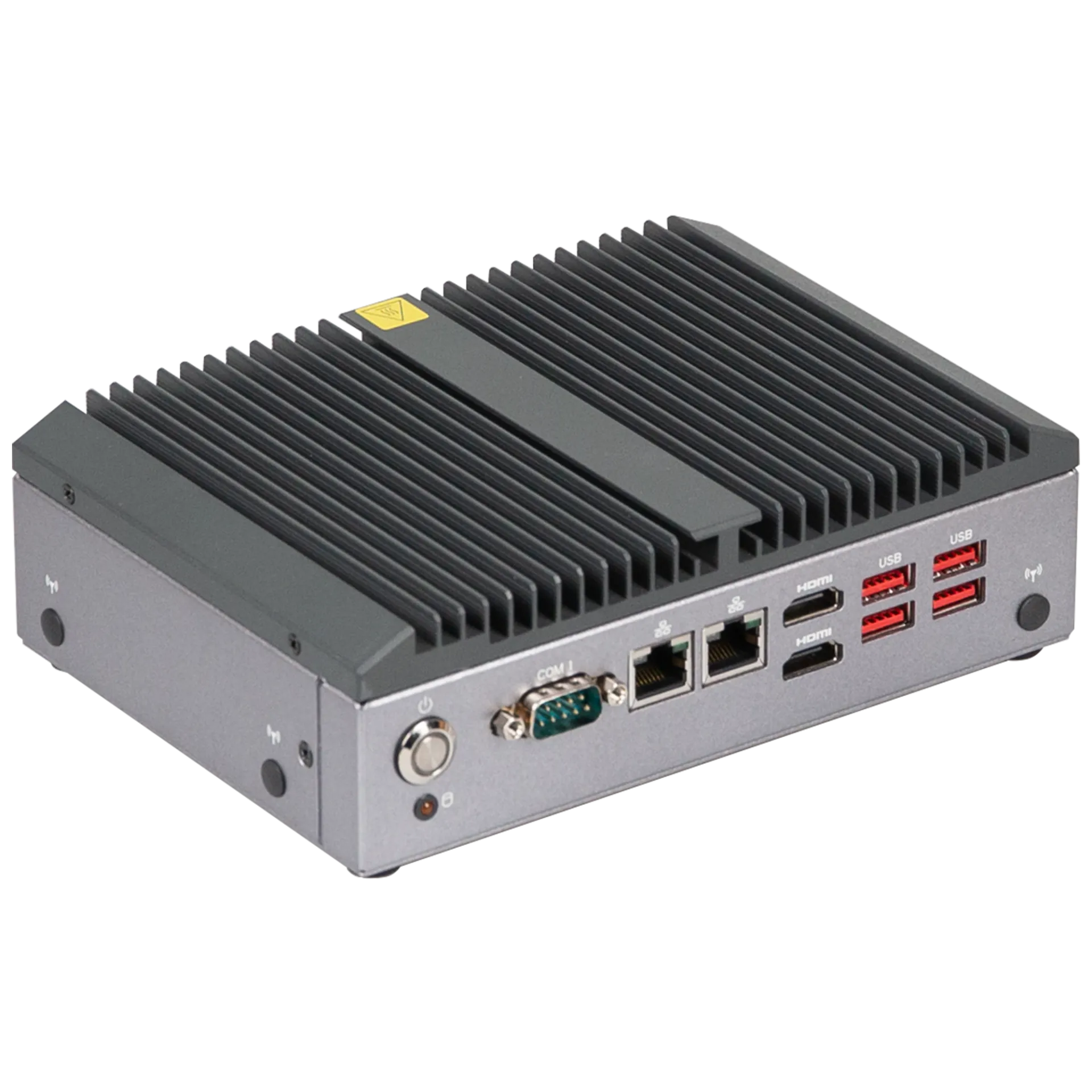

QBiX Pro Series
QBiX-Pro-MTLA125H-A2
Industrial system with Intel® Core™ Ultra 5 Processor 125U/ Fanless Design/ Dual Channel DDR5/ 2 x HDMI
Key Features
• System Size : 178W x 125D x 52.7H(mm)
• Intel® Core™ Ultra 5 Processor 125U
• Dual Channel DDR5, 2 x SO-DIMMs
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 2 x COM Ports (RS-232/422/485)
• 1 x Remote control
• 2 x 2.5GbE LAN Ports
• Onboard TPM v2.0
컨텐츠 정보
본문
Specification
Dimension
178W x 125D x 52.7H(mm)
CPU
Intel® Core™ Ultra 5 Processor 125U
Intel® 4, 12 cores, 2P+8E+2LPE, 14 threads, up to 4.3 GHz
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 96 GB
Support Dual Channel DDR5 5600 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I226V & I226LM)
Graphics Support
Integrated Graphics Processor - Intel® Graphics support:
2 x HDMI 2.1 port, supporting a maximum resolution of 7680x4320 @60Hz(HDMI 2 port support HDMI CEC)
(2 independent display outputs)
Audio
Realtek® ALC269
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen4x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
Front I/O
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x External Antenna Hole (Optional)
Rear l/O
2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Combo Audio Jack (Headphone & Headset)
1 x Remote control
1 x Screw Type DC Jack
Side I/O
2 x External Antenna Holes (Optional)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9672XU2.0
Power
+9V~36VDC (Adapter 19.5V/135W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 40°C @ 20-95% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 60°C @ 95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
OS Compatibility
Windows 11 Enterprise 64bits_24H2_December update
Windows 11 Enterprise 64bits_23H2_December update
Windows 10 Enterprise 64bits_22H2_December update
Windows 11 IoT Enterprise LTSC 2024(24H2) 64bits
Windows 10 IoT Enterprise LTSC 2021(21H2) 64bits
Packing Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 1.5kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
2-pin Terminal Blocks Male Plug x 1 (P/N: 25IO0-EC3812-D2R)
SATA Cable x 1 (P/N: 25CRI-070000-S9R)
Power Cord : Optional (by region)
PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S/25EP2-2135W0-F3S)
Mounting
Wall mount P/N: 25HB2-CGAA20-CHR x 1 (Optional)
VESA 75/100 P/N: 25HB1-TPL021-S8R x 1 + 12KSZ-000001-00R x 1 (Screw) (Optional)
Order Information
6BQP125UAMR-SI (Box packing)
