QBiX Systems
QBiX-GLKB4125-A1
Industrial system with Intel® Celeron® J4125 Processor/ Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports/ 1 x Headphone Jack
Key Features
• System Size : 118W x 109.4D x 44.4H (mm)
• Intel® Celeron® J4125 Processor
• 1 x COM Port (RS-232)
• Single Channel DDR4, 1 x SO-DIMM
• 2 x HDMI for Dual display
• 2 x GbE LAN Ports
컨텐츠 정보
본문
Specification
Dimension
118W x 109.4D x 44.4H(mm)
CPU
Intel® Celeron® J4125 Processor
14nm, 4 cores, 4 threads, up to 2.7 GHz
TDP 10W
Chipset
SoC
Memory
1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB
Support Single Channel DDR4 2400 MHz memory modules
Ethernet
1 x GbE LAN Ports (Intel® I211AT )
1 x GbE LAN Ports (Realtek® RTL8111HS)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics 600:
2 x HDMI 1.4b port, supporting a maximum resolution of 4096x2160 @30Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Expansion-Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

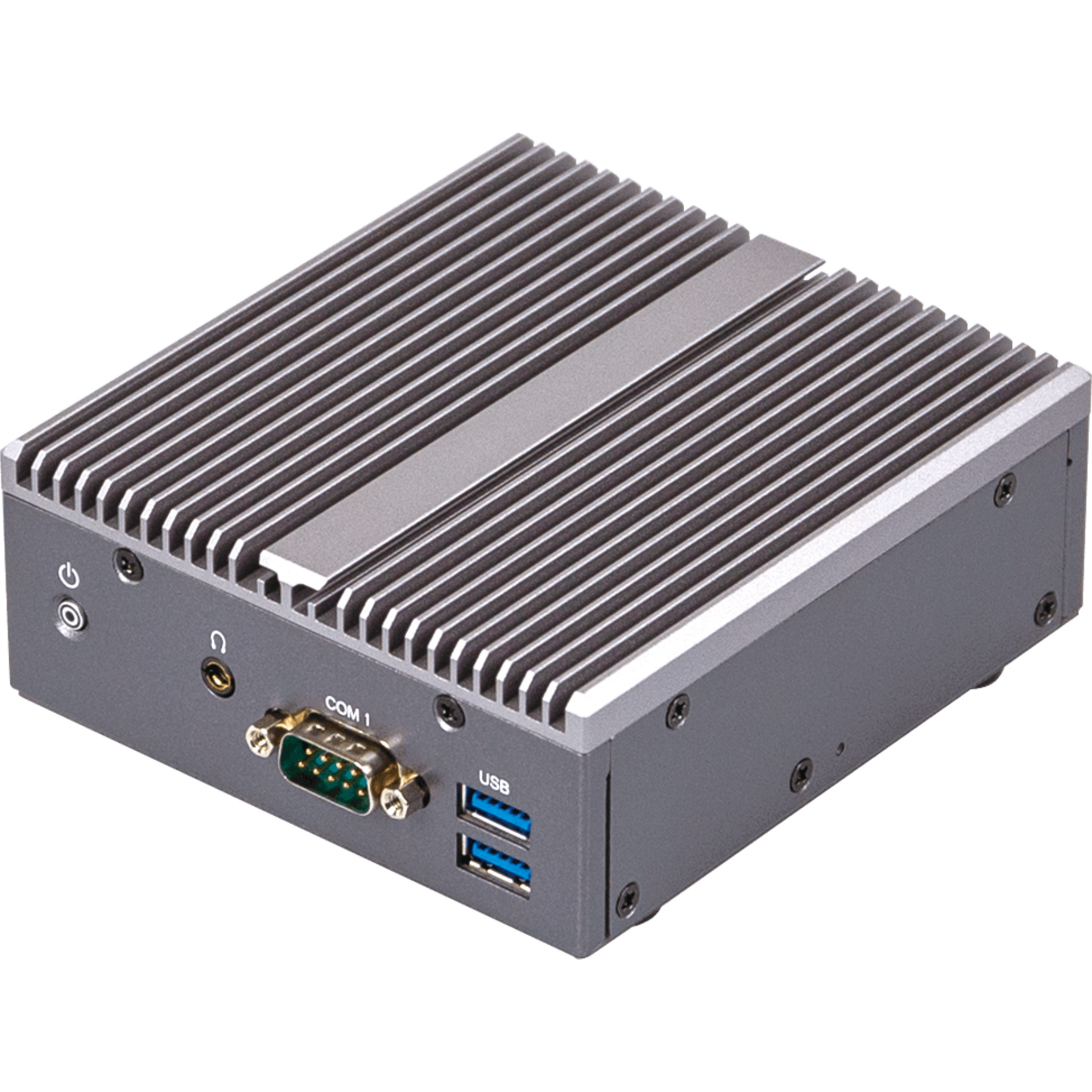

Front I/O
2 x USB 3.2 Gen 1
1 x COM Port (RS-232)
1 x Headphone Jack
1 x Power button with LED

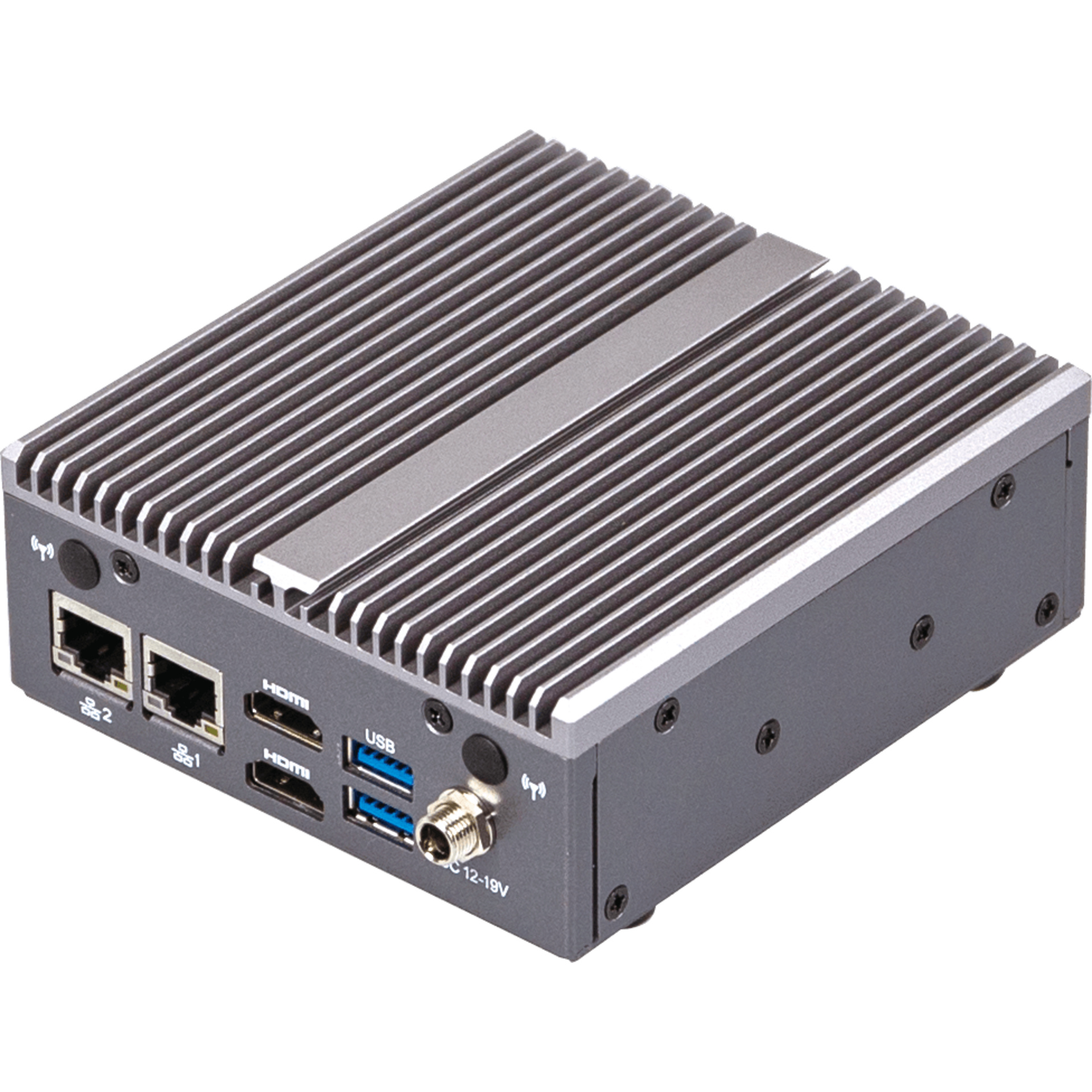

Rear l/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x HDMI
2 x External Antenna Holes (Optional)
1 x Screw Type DC Jack
Power
+12V~19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 416 x 409 x 296 (mm)
Packing Capacity: 6pcs
Single Box size: 258 x 191 x 130 (mm)
Single Box weight: Approx. 1.5kg
Including:
Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S)
VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R)
VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R)
Order Information
6BQB4125AMR-SI (Box packing)
Optional Kit
WiFi module (Intel 3168AC) : 25FC7-3168N0-10R
Internal Antenna (300mm) : 25CA0-300003-A5S
Internal Antenna (230mm) : 25CA0-230003-A5S
WiFi/BT Antenna x 2 : 25CA0-111000-A5S
