QBiX Systems
QBiX-ADNAN97-A1
Industrial system with Intel® Processor N97 Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports/ 1 x Combo Audio Jack (Headphone & Headset)
Key Features
System Size: 118W x 109.4D x 44.4H (mm)
Intel® Processor N97
1 x COM Port (RS-232)
Single Channel DDR5, 1 x SO-DIMM
2 x HDMI for Dual display
2 x GbE LAN Ports
컨텐츠 정보
본문
Specification
Dimension
118W x 109.4D x 44.4H (mm)
CPU
Intel® Processor N97
Intel® 7, 4 cores, up to 3.60 GHz
Memory
1 x DDR5 SO-DIMM socket, Max. Capacity 16 GB
Support Single Channel DDR5 4800 MHz memory module
Ethernet
2 x GbE LAN Ports (Realtek® RTL8111H)
Graphics Support
Integrated Graphics Processor -
Intel® UHD Graphics support:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC269
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen 3x1, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)

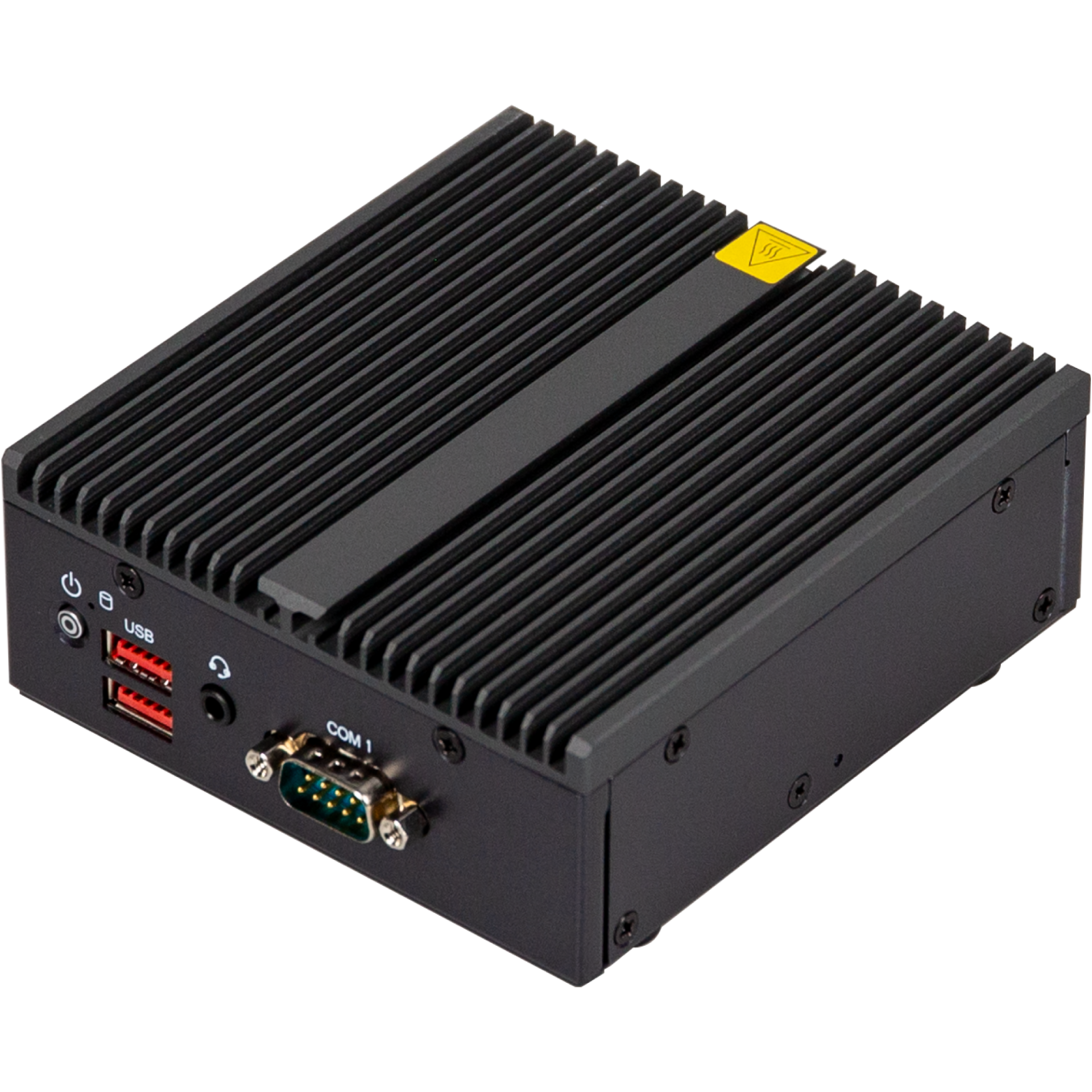

Front I/O
2 x USB 3.2 Gen 2x1
1 x COM Port (RS-232)
1 x Combo Audio Jack (Headphone & Headset)
1 x Power button with LED

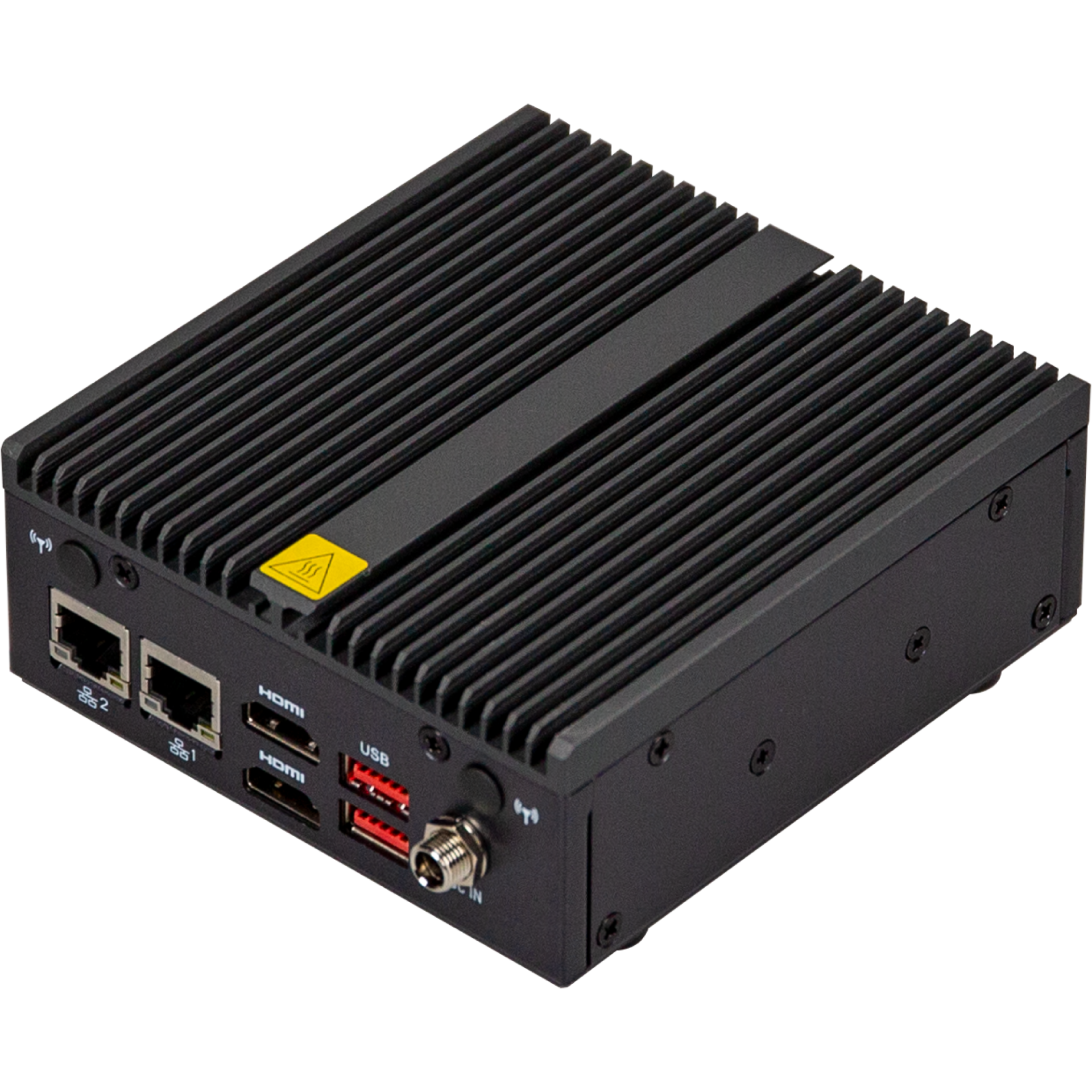

Rear l/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen2x1
2 x HDMI
2 x External Antenna Holes (Optional)
1 x Screw Type DC Jack
TPM
Onboard TPM 2.0 security chip
NUVOTON NPCT760AABYX
Power
+12V~19VDC (Adapter 19V/65W)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr/ Per Axis, with SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr/ Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, with SSD
Packing Content
Carton size: 373 x 294 x 296 (mm)
Packing Capacity: 8pcs
Single Box size: 256 x 173 x 66 (mm)
Single Box weight: Approx. 2kg
Including:
Power Cord: Optional (by region)
PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP1-100651-A3S)
VESA Bracket x 1 (P/N: 25HB1-TPL021-S8R)
VESA Screws x 1 (P/N: 25KSD-000001-S4R)
Order Information
6BQBN970AMR-SI (Box packing)
