Micro-ATX
uATX-H110A
Micro-ATX with Intel® H110 Chipset, support 7th/6th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe slot, 4 x COM, 6 x USB, 4 x SATA 6Gb/s
Key Features
• Micro ATX form factor
• Support 7th/6th Generation Intel® Core™ Processors
• Dual Channel DDR4, 2 x DIMMs
• 2 x GbE LAN Ports
• 4 x SATA 6Gb/s Ports
• HDMI 1.4, DVI-D, VGA ports for multiple display
• 4 x COM Ports (RS-232)
컨텐츠 정보
본문
Specification
Form Factor
Micro ATX
244W x 244D(mm)
CPU
Support for 7th/6th Generation
Intel® Core™ i7/i5/i3, Pentium® & Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219LM and Realtek® RTL8111HS)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @24Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
* The DVI-D port does not support VGA connection by adapter
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
4 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16 (Gen3 x16)
1 x PCIe x4 (Gen2 x2)
2 x PCIe x1 (Gen2 x1)
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x System fan headers
1 x Front panel header
1 x Front panel audio header
2 x USB 2.0 headers
3 x COM headers (RS-232)
1 x Clear CMOS jumper
1 x Buzzer

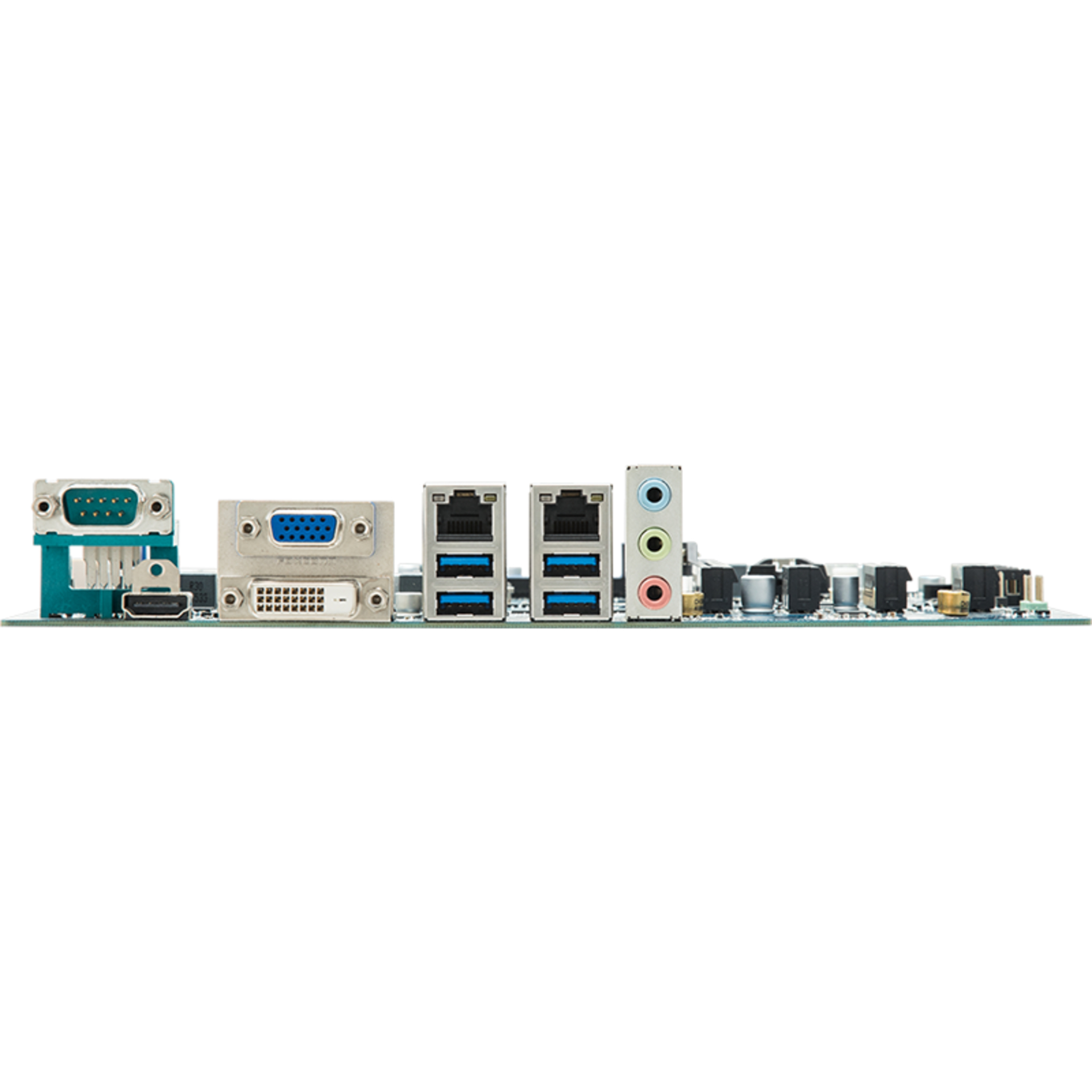

Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232)
1 x HDMI
1 x DVI-D
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9665VQ2.0
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 609 x 581 x 362 (mm)
Packing Capacity: 20pcs
Single Board weight: Approx. 0.6kg
Including:
IO Shield x 1 (P/N: 12AIO-MDH112-00R)
Order Information
9MDH11BMNR-SI (Bulk Packing)
Optional Kit
CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
