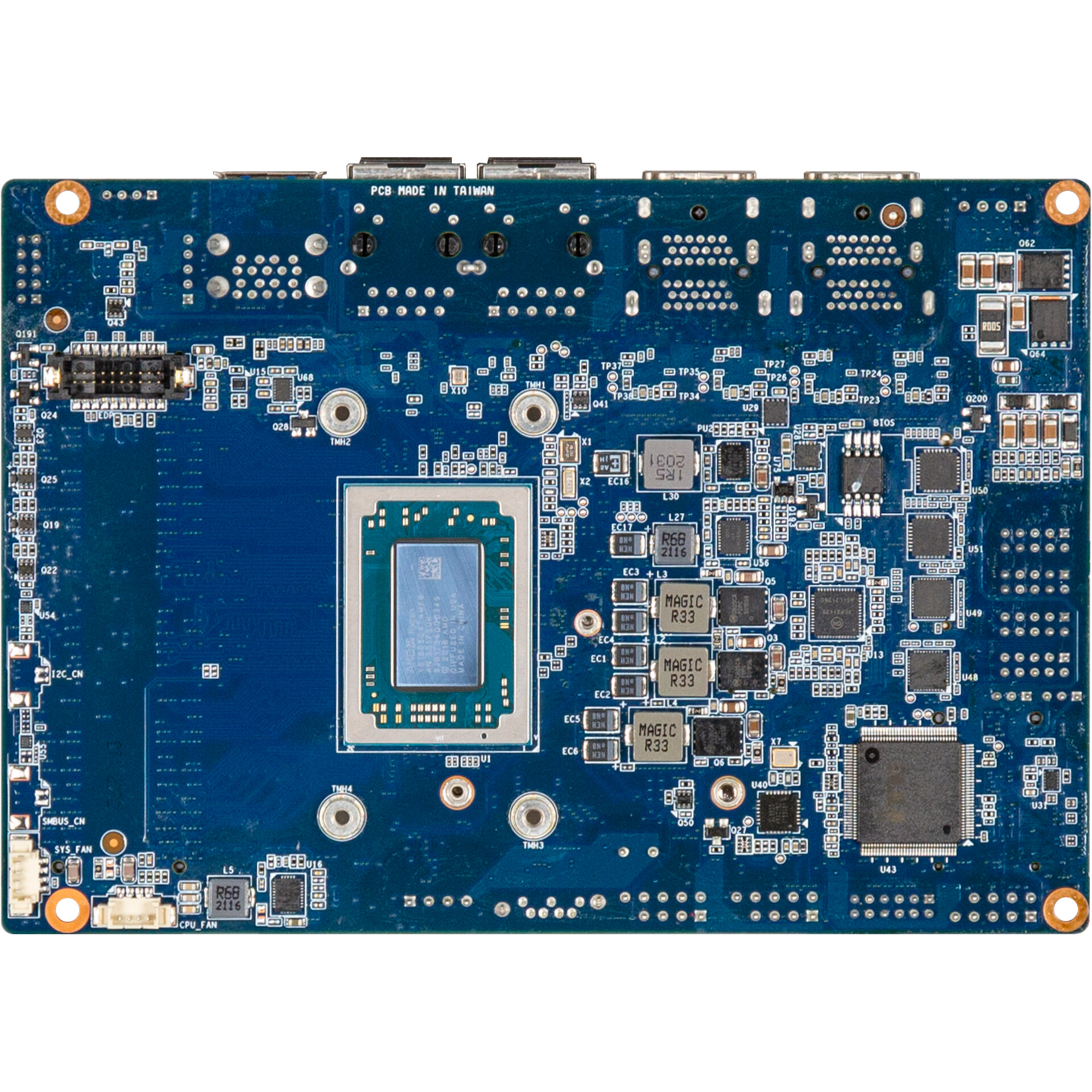

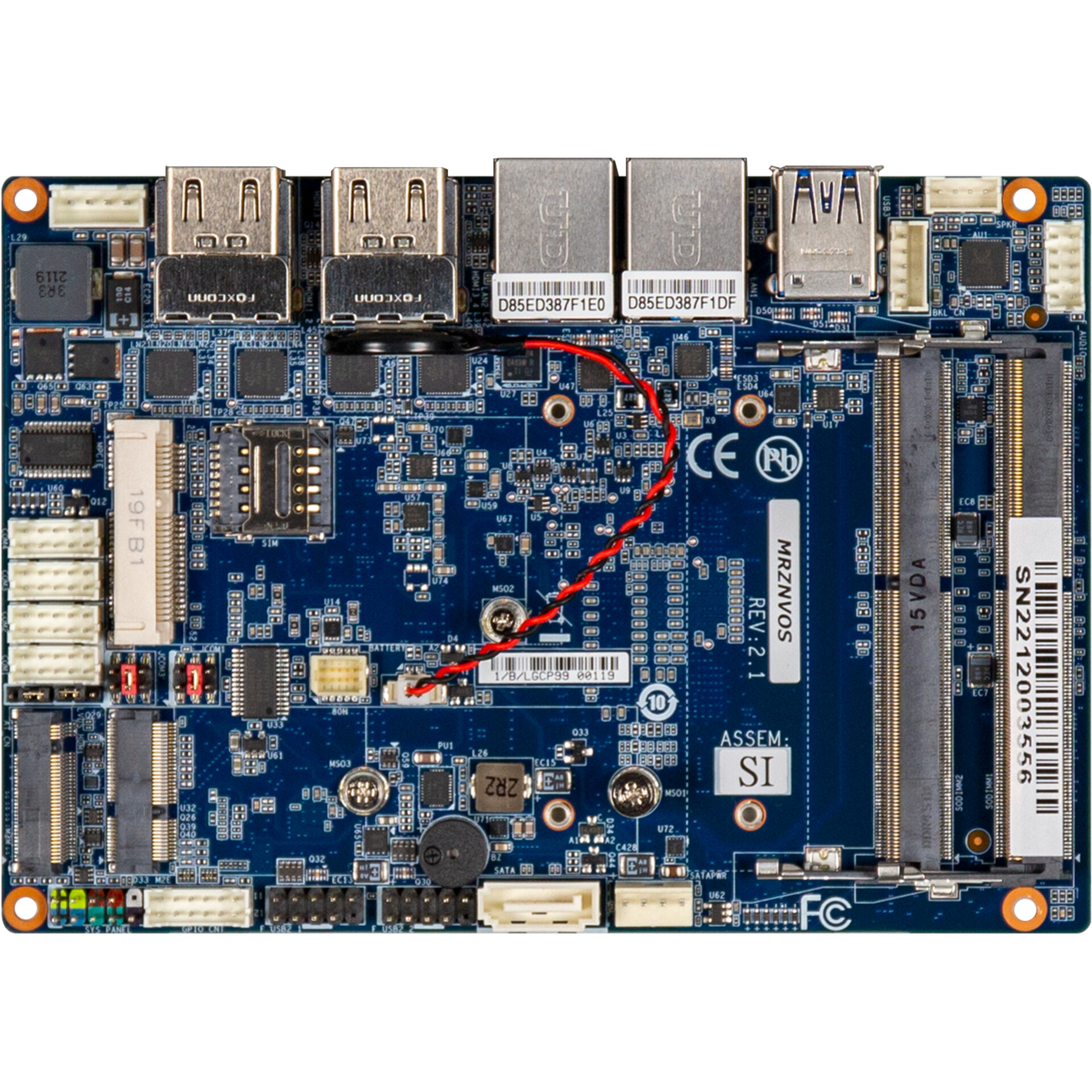

QBi Pro 3.5 SBC
QBiP-1605B
3.5” SubCompact Embedded Motherboard with AMD Ryzen™ V1605B Embedded Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 6 x USB
Key Features
• 3.5
• AMD Ryzen™ V1605B Embedded Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• M.2 with SATA 6Gb/s or PCIe x4
• 4 x HDMI 2.0, eDP ports for multiple display
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 2 x COM Ports (RS-232)
컨텐츠 정보
본문
Specification
Form Factor
3.5" SBC
146W x 101.7D(mm)
CPU
AMD Ryzen™ V1605B Embedded Processor
14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6 GHz
TDP 25W
2MB of shared L2 plus 4MB of shared L3 total
Socket
1 x FP5 type 1 BGA
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek RTL8111HS)
Video
Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz (Share from HDMI)
(4 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module
Internal I/O
1 x 4-pin box power connector (DC in +9V~36VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x COM headers (RS-232)
2 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x eDP/HDMI jumper
1 x GPIO (8-bits) & SMBUS header
1 x Buzzer

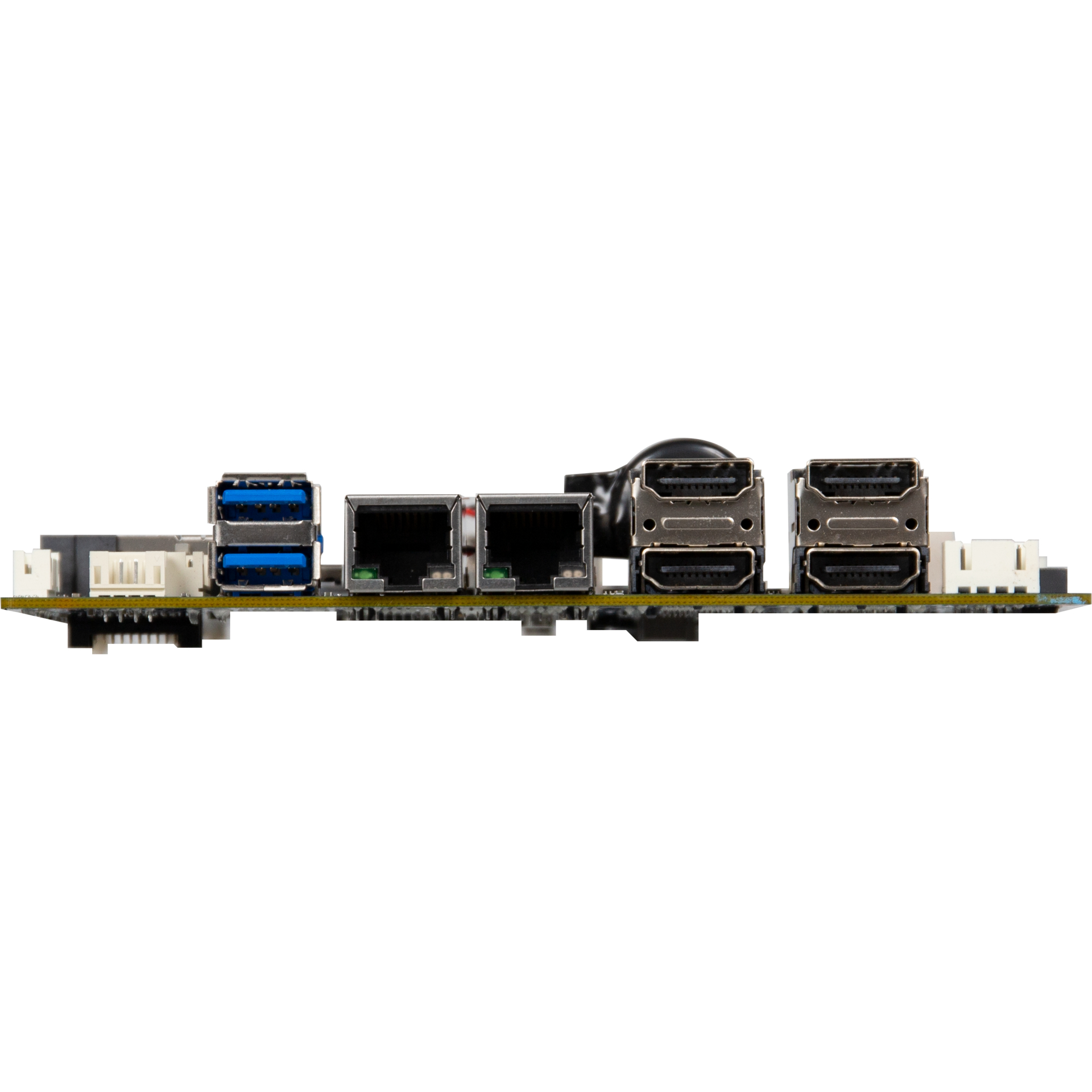

Rear l/O
4 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9665TT2.0
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.4kg
Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MRZNVOSMR-SI (Box Packing)
Optional Kit
Fanless Heatsink P/N:25ST1-113104-A7R
Fansink P/N: 12SF2-01A073-00R
Heat spreader P/N: 25ST5-QP1600-A8R
