Mini-ITX

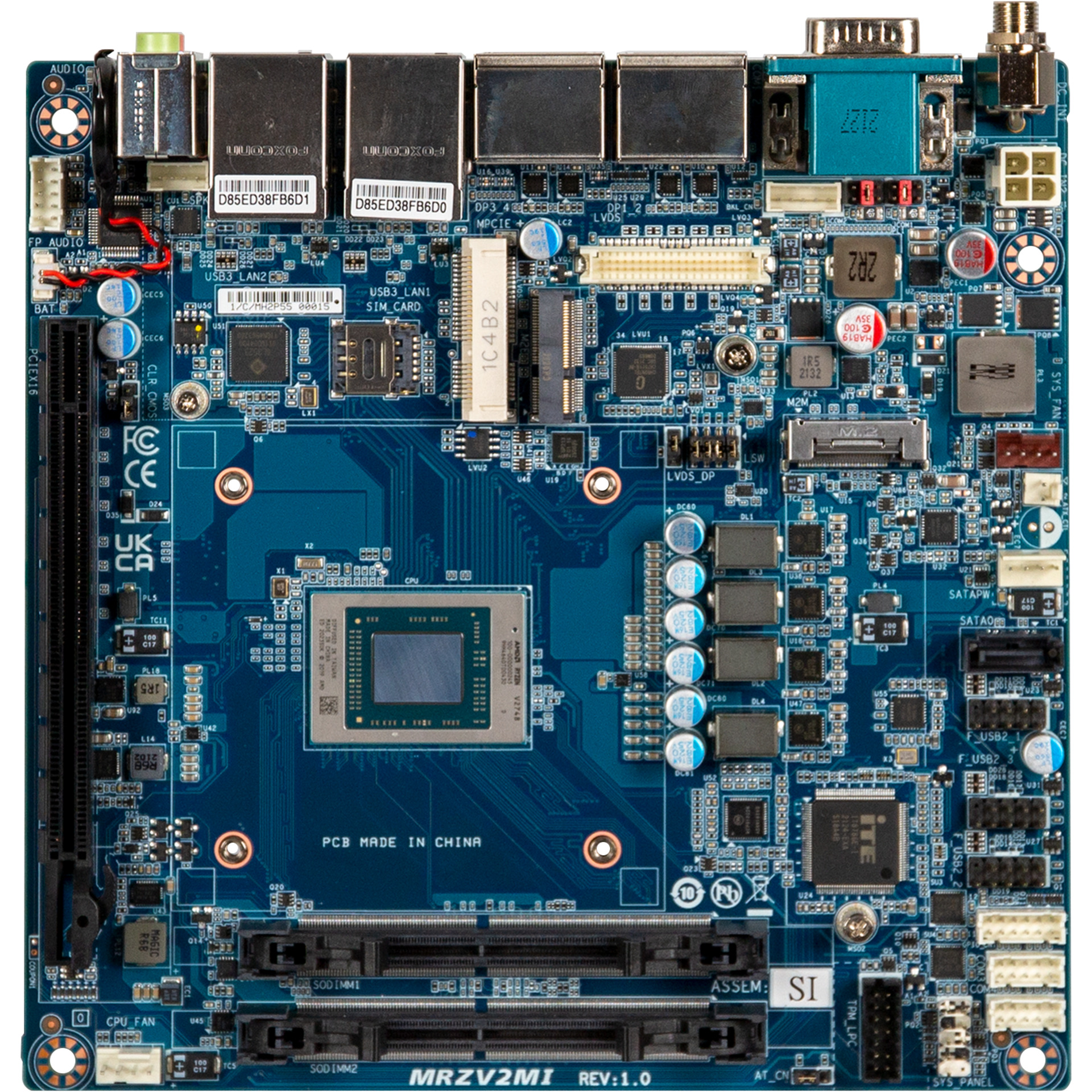

mITX-2748A
Mini-ITX Embedded Motherboard with AMD Ryzen™ V2748 Embedded Processor, Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
Key Features
• Mini-ITX form factor
• AMD Ryzen™ V2748 Embedded Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• 4 x DP 1.4, LVDS (Switch from DP) ports for multiple display
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 2 x COM Ports (RS-232/422/485)
컨텐츠 정보
본문
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
AMD Ryzen™ V2748 Embedded Processor
7nm, 8 cores, 16 threads, 2.9 GHz, up to 4.25GHz
TDP 45W
Socket
1 x FP6 BGA
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8118-CG)
Video
Integrated Graphics Processor - AMD Radeon™ Graphics:
4 x DP ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1080P (switch from DP)
(4 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x PCIe x16 (Gen3x8)
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size mini PCIe with SIM slot
Internal I/O
1 x 4-pin ATX power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
2 x COM headers (RS-232/422/485)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x LVDS/ DP Jumper
1 x AT/ATX mode select jumper
1 x ATX Control header
1 x Clear CMOS jumper

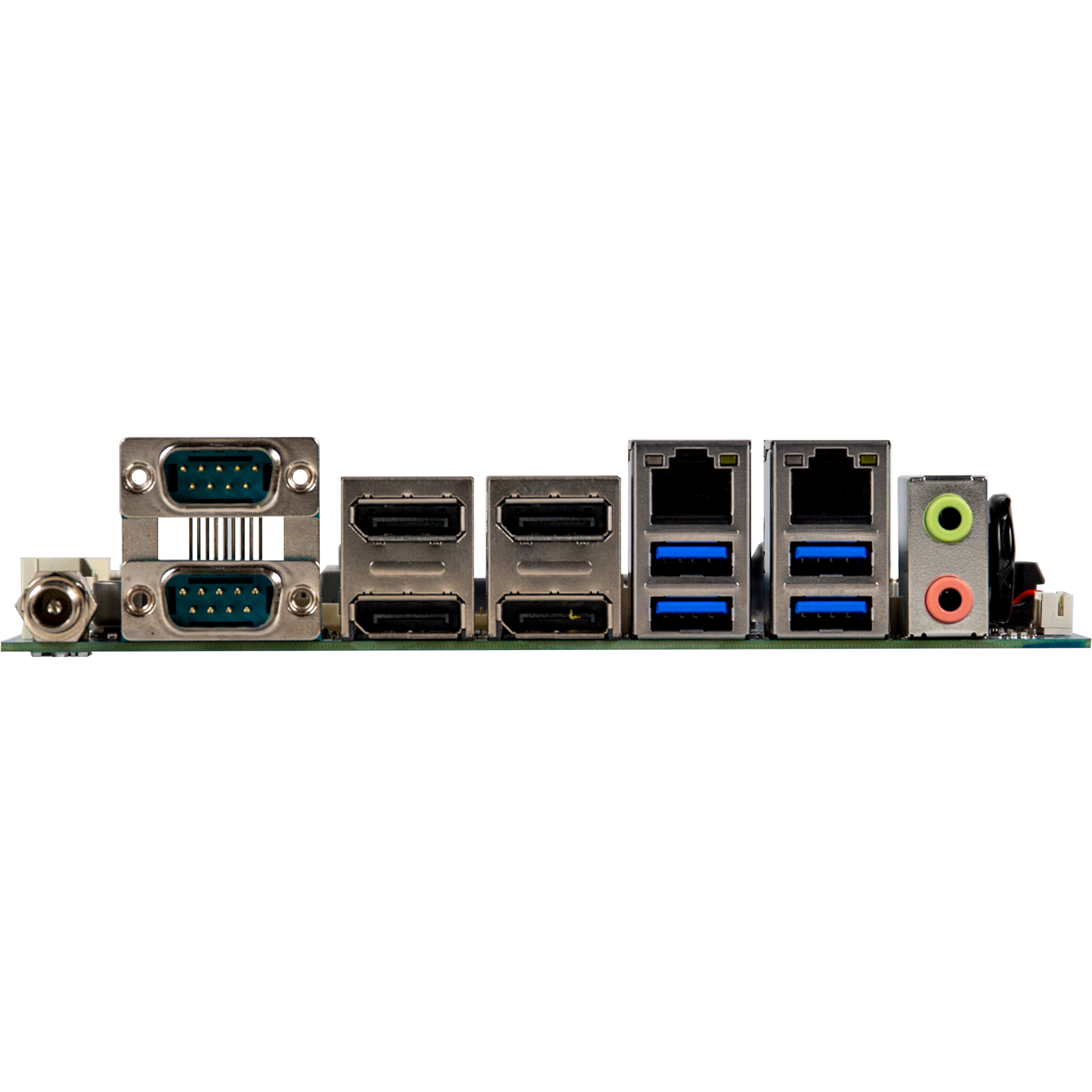

Rear l/O
2 x Audio Jacks (Line out, Mic in)
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
4 x Display Ports
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V~24VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 556 x 476 x 244 (mm)
Packing Capacity: 10pcs
Single Box size: 206 x 223 x 105 (mm)
Single Box weight: Approx. 1.0kg
Including:
IO Shield x 1 (P/N: 12AIO-MRZNV1-00R)
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Fansink x 1 (P/N: 25ST0-0Z7820-Y0R)
Order Information
Fan version: 9MRZV2MIMR-SI (Box packing)
Optional Kit
TPM 2.0 module: 9CTM000NR-00
