Mini-ITX
mITX-1900A
Mini-ITX Embedded Motherboard with Intel® J1900 Processor, Dual Channel DDR3L memory, PCI, 6 x COM Ports, 1 x SATA II, 6 x USB 2.0, 1 x USB 3.2 Gen 1
Key Features
• Mini-ITX form factor
• Intel® Celeron® J1900 Processor
• Dual Channel DDR3L, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 3Gb/s Port
• HDMI, VGA, eDP (in option), LVDS ports for multiple display
• 1 x PCIe x4 (Gen2 x 2) expansion slot
• 6 x COM Ports
컨텐츠 정보
본문
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Intel® Celeron® J1900 Processor
22nm, 4 cores, 4 threads, up to 2.42 GHz
TDP 10W
Socket
1 x FCBGA 1170
Memory
2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Dual channel DDR3L 1333 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek RTL8111G)
Video
Integrated Graphics Processor - Intel® HD Graphics:
1 x HDMI 1.4 port, max. resolution 1920x1080 @60Hz
1 x VGA port, max. resolution 2560x1600 @60Hz
1 x LVDS port, max. resolution 1920x1200 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
1 x SATA 3Gb/s Port
(incl. 1 x SATA supports SATA DOM)
Expansion Slots
1 x PCI slot
1 x Full-size Mini-PCIe
1 x Full-size mSATA
Internal I/O
1 x 4-pin ATX power connector
1 x SATA power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W speaker out header
2 x USB 2.0 header
1 x COM header (RS-232/422/485)
3 x COM headers (RS-232)
1 x COM header (RS-232 & RI/5V/12V)
1 x GPIO (8 bits) & SMBUS header
1 x PS/2 Keyboard/Mouse header
1 x AT/ATX mode select jumper
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer

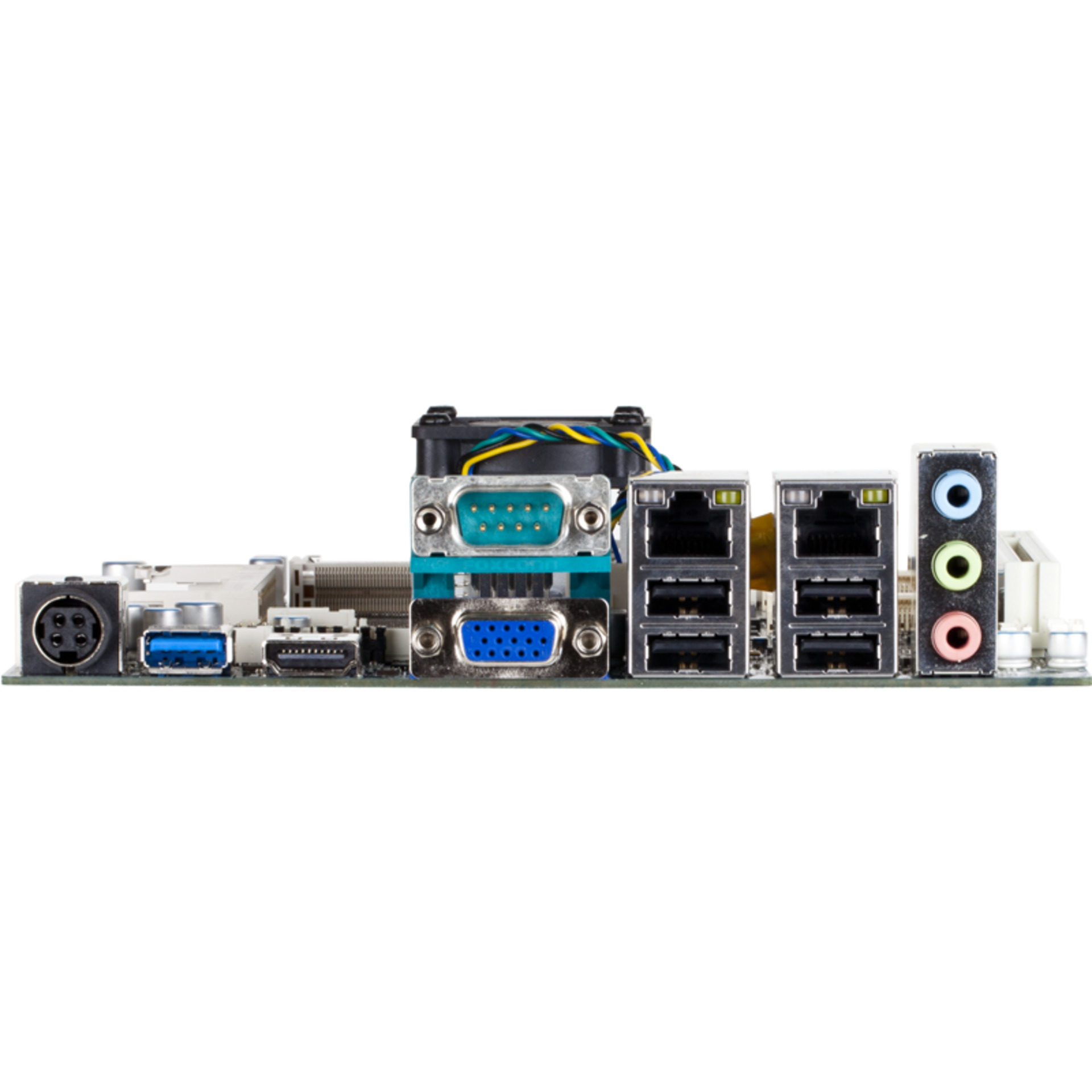

Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232)
1 x HDMI
1 x VGA
2 x RJ45 LAN Ports
4 x USB 2.0
1 x USB 3.2 Gen 1
1 x DC Jack (+12VDC)
OS Compatibility
Windows 8 32/64bit
Windows 8.1 32/64bit
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 550 x 451 x 330 (mm)
Packing Capacity: 20pcs
Including:
IO Shield x 1 (P/N: 12AIO-MVBAY0-00R)
SATA power Cable x 1 (P/N: 25CRI-100B00-H3R)
SATA Cable x 1 (P/N: 25CF4-500522-H3S)
Order Information

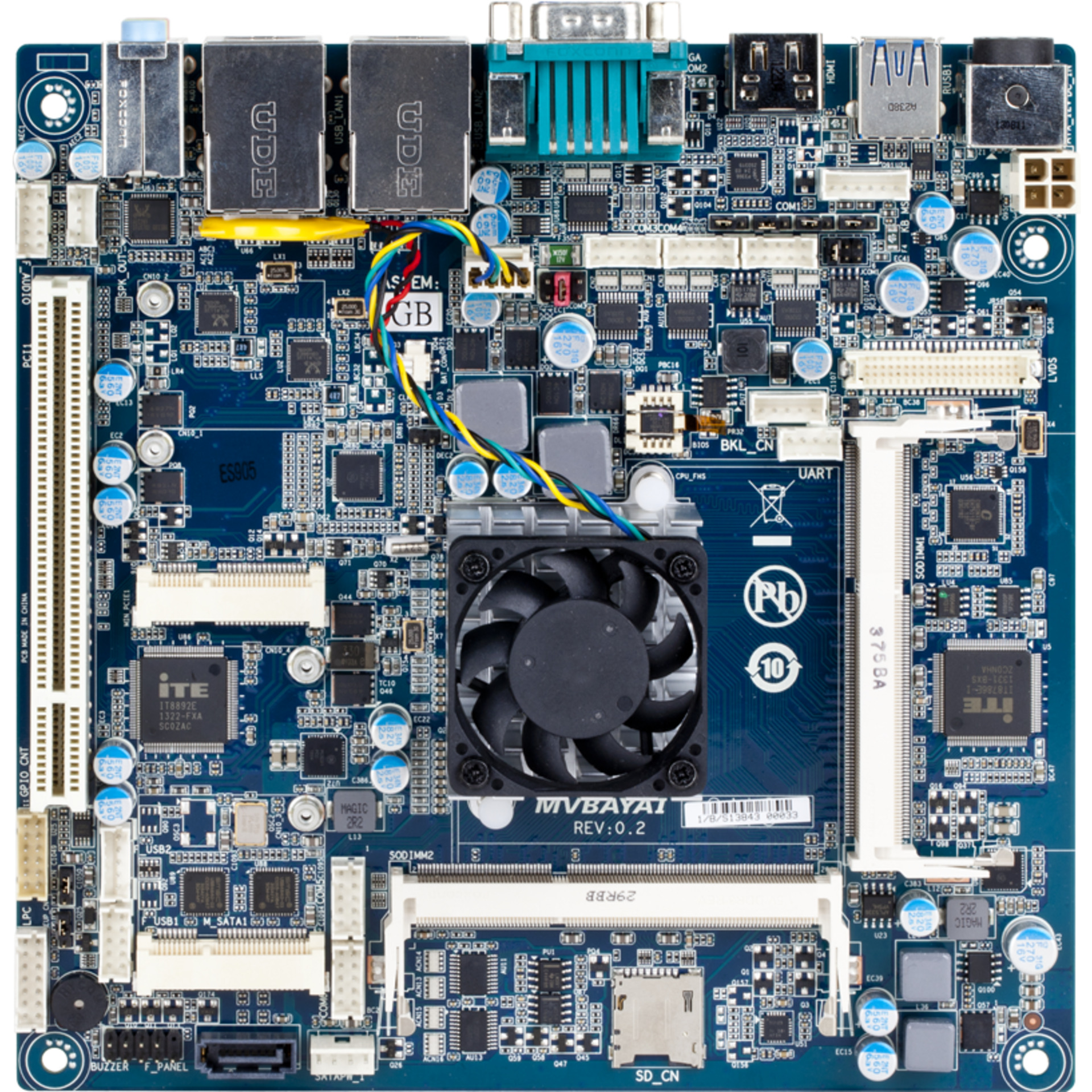

Fan version: 9MVBAYAINS-SI

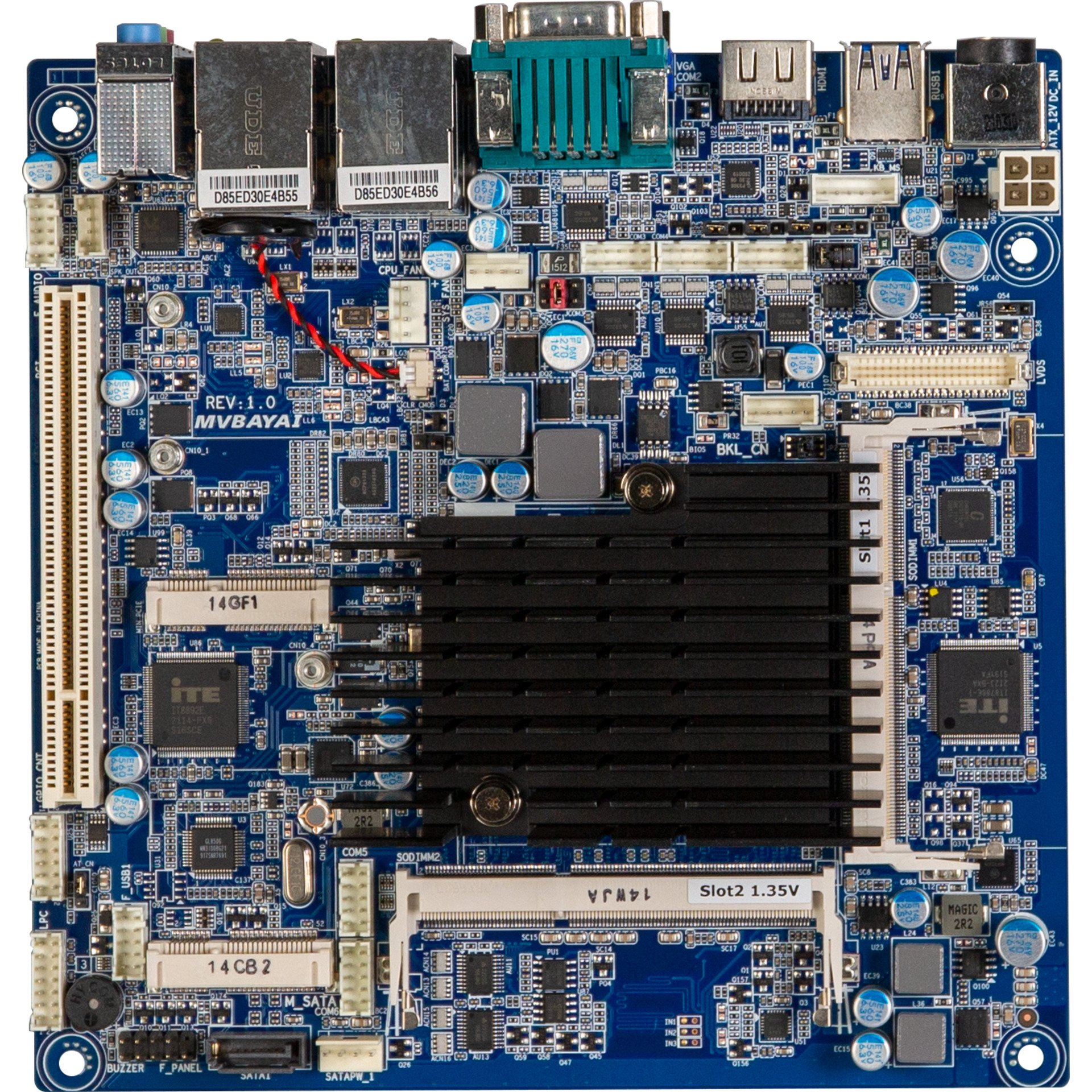

Fanless version: 9MVBAYAINS-00
