Thin Mini-ITX

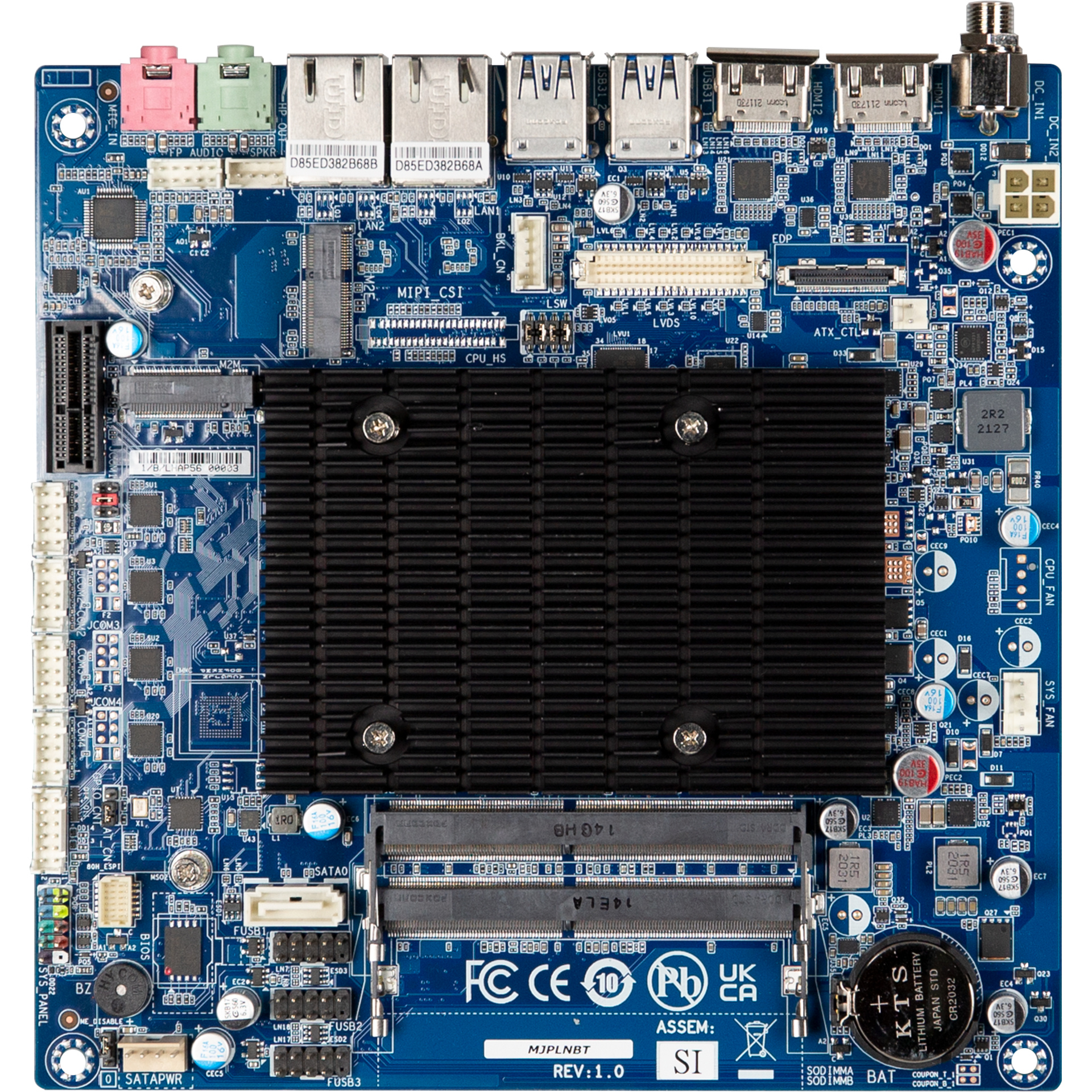

iTXL-4500A
Thin Mini-ITX Embedded Motherboard with Intel® Celeron® N4500 Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
Key Features
• Thin Mini-ITX form factor
• Intel® Celeron® N4500 Processor
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• 1 x SATA 6Gb/s Port
• HDMI, eDP/LVDS ports for Multiple Display
• Realtek® Audio codec
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 3 x COM Ports (RS-232)
컨텐츠 정보
본문
Specification
Form Factor
Thin Mini-ITX
170W x 170D(mm)
CPU
Intel® Celeron® N4500 Processor
10nm, 2 cores, 2 threads, up to 2.80 GHz
TDP 6W
Socket
1 x FCBGA1338
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 16 GB
Support Dual channel DDR4 2933 MHz memory modules
Ethernet
2 x GbE LAN Ports (Realtek® RTL8118-CG)
Video
Integrated Graphics Processor - Intel® UHD Graphics:
2 x HDMI 2.0 port, supporting a maximum resolution of 3840x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x PCIe x1 (Gen3 x1)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O
1 x 4-pin ATX main power connector
1 x ATX control header (For Standard ATX PSU use)
1 x SATA power connector
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
1 x COM header (RS-232/422/485 & RI/5V/12V)
3 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x AT/ATX mode select jumper

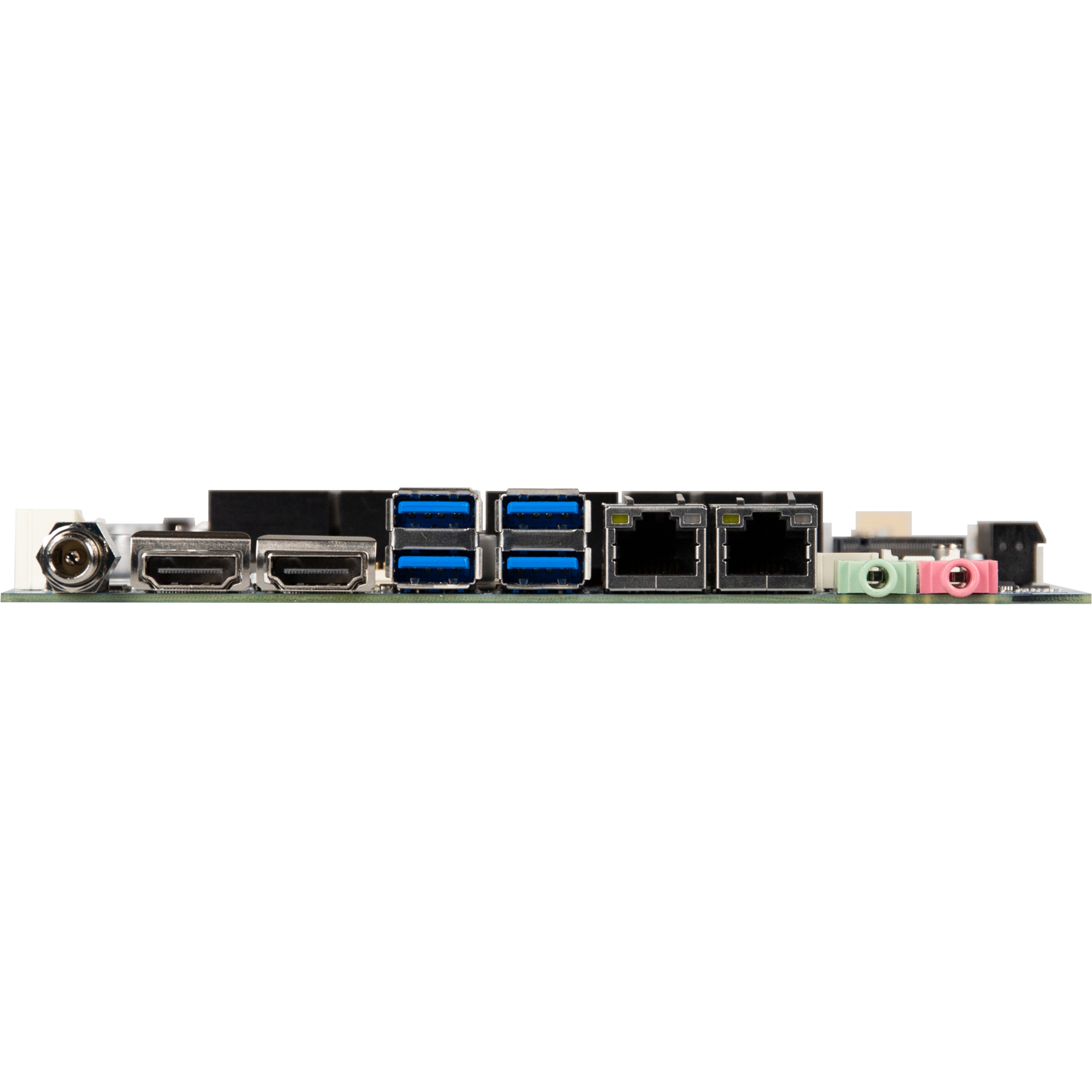

Rear l/O
2 x Audio Jacks (Line out, Mic in)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V~24VDC)
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.55kg
Including:
Standard IO Shield x 1 (P/N: 12AIO-MEHLJA-00R)
Low-Profile IO Shield x 1 (P/N: 12AIO-MJPLN0-00R)
SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information
9MJPLNATMR-SI (Box Packing)
